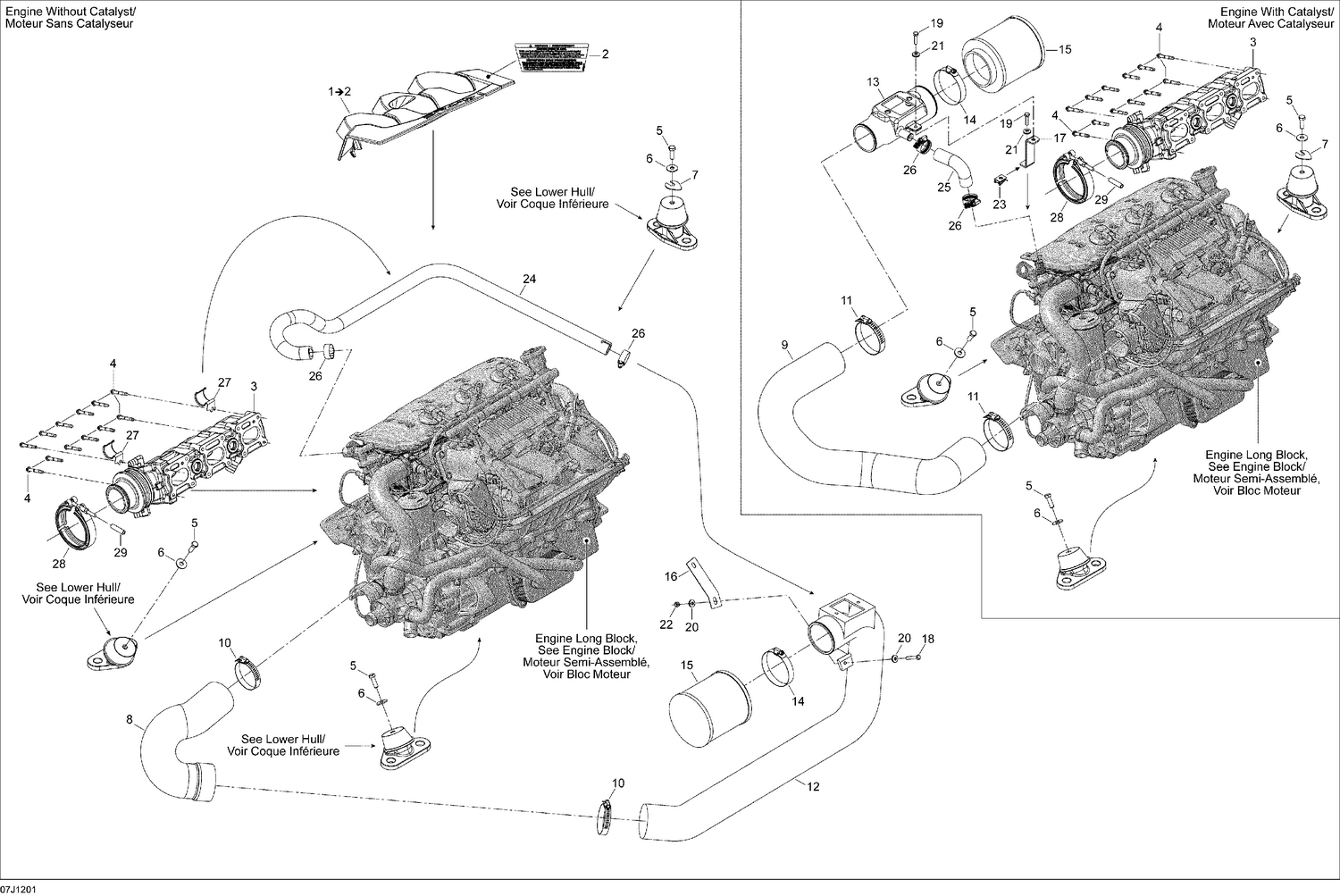

01- Engine And Air Intake Silencer
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 296000422 | Engine Exhaust Manifold 0990732-00 - 150 This part replaces 274001434. |
| 4 | 420641198 | Torx Flange Screw M6 X 45 |
| 5 | 207182560 | HEX. SCREW M8 X 25 - Call your local BRP dealership |
| 6 | 234082600 | Flat Washer 8 mm, Stainless |
| 7 | 270000025 | SHIM 1.3 MM - Call your local BRP dealership |
| 14 | 293650179 | Tridon Clamp |
| 15 | 204250466 | Air Filter This part replaces 204250436. |
| 26 | 293650051 | Tridon Gear Clamp |
| 28 | 274001417 | Exhaust Clamp |
