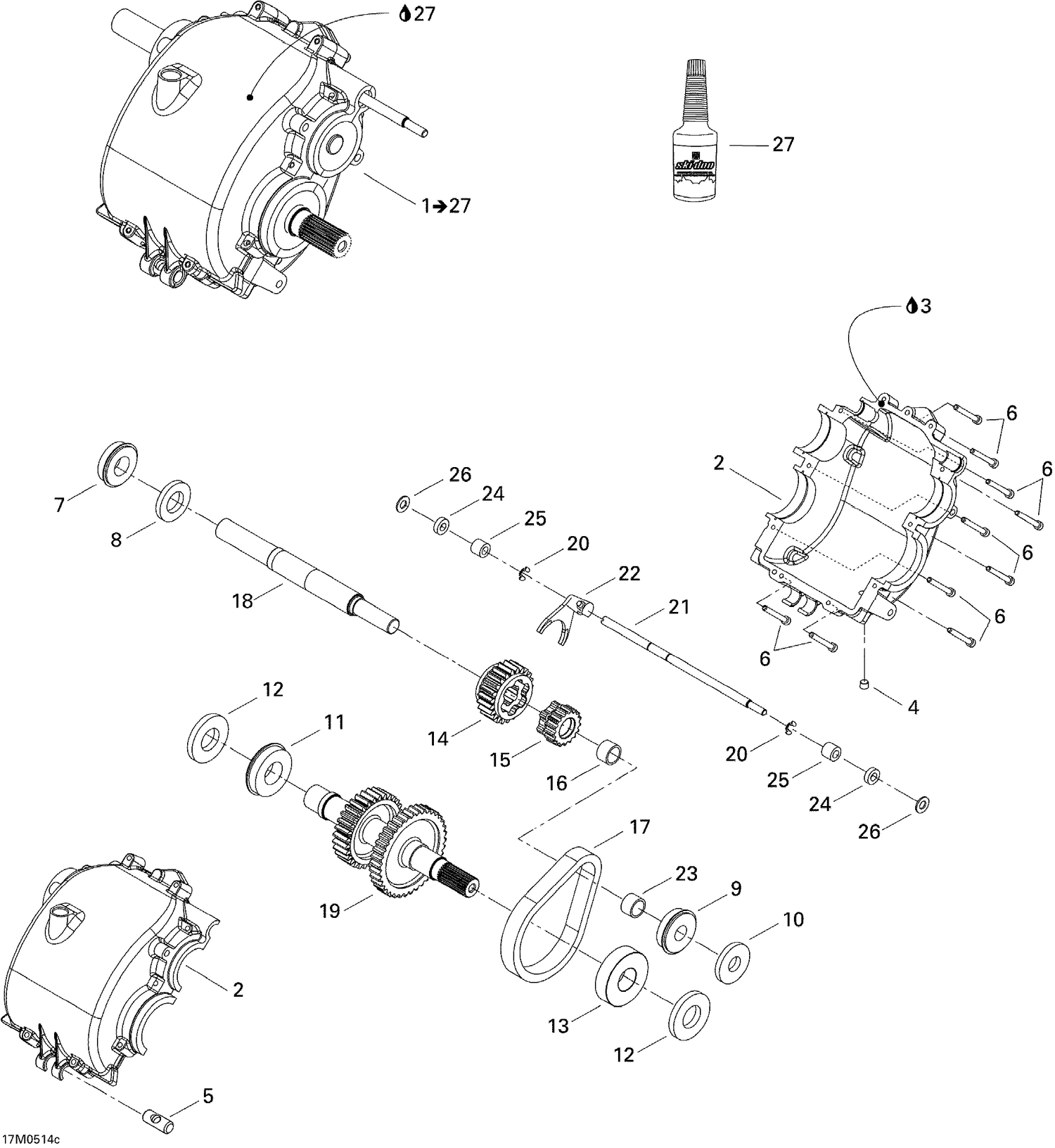

05- Drive System 3
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 504152206 | Transmission Housing Ass'y |
| 4 | 504151921 | Plug 1/8”-27 |
| 5 | 504152334 | Stopper |
| 6 | 205065044 | SOCKET HEAD SCREW M6 X 50 - Call your local BRP dealership |
| 7 | 293350046 | BALL BEARING - Call your local BRP dealership |
| 8 | 293200083 | Oil Seal |
| 9 | 504152133 | Ball Bearing |
| 10 | 504152134 | Ring |
| 11 | 293350047 | BALL BEARING - Call your local BRP dealership |
| 12 | 293200084 | OIL SEAL - Call your local BRP dealership |
| 13 | 504152349 | Ball Bearing |
| 14 | 504152395 | Gear 23 Teeth |
| 15 | 504152142 | Gear 17 Teeth |
| 16 | 504152143 | Needle Bearing |
| 17 | 504152145 | Silent Chain Type L/A 46 Links |
| 18 | 504152146 | Input Shaft |
| 19 | 504152396 | Output Shaft |
| 20 | 504152397 | Circlip |
| 21 | 504152148 | Fork Shaft |
| 22 | 420257230 | Shift Fork |
| 23 | 504152151 | Spacer |
| 24 | 504152329 | O-Ring |
| 25 | 504152512 | Bushing |
| 26 | 234001410 | Flat Washer 10 mm |
