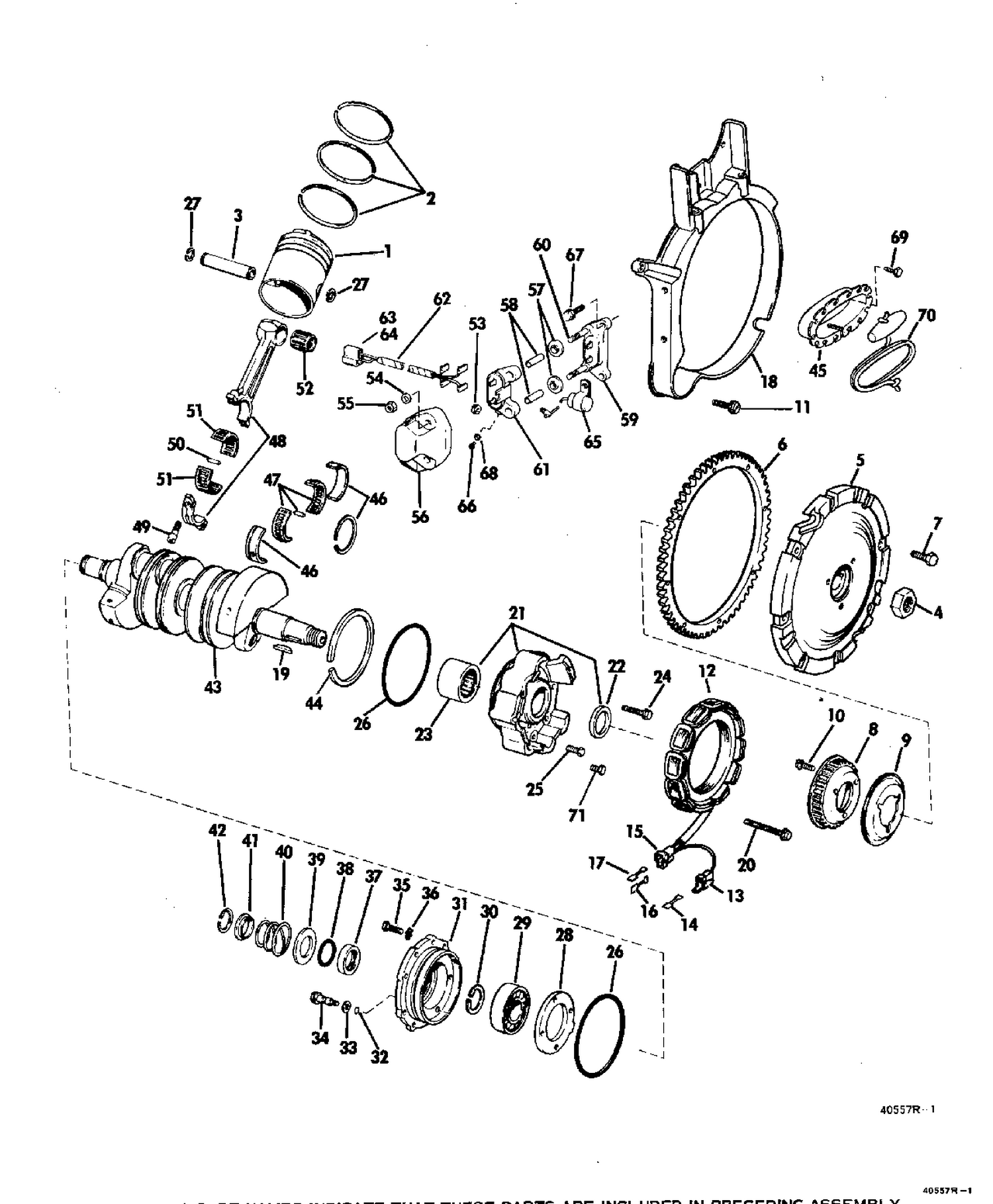

| Ref | Part Number | Description |
|---|
| 1 |
0379179 |
PISTON & DOWELL,.020" o.s. |
| 1 |
0379180 |
PISTON & DOWELL,.040" o.s. |
| 1 |
0379577 |
PISTON & DOWELL,Standard |
| 2 |
0382825 |
PISTON RING SET, Standard |
| 2 |
0382826 |
PISTON RING SET, .020 o.s |
| 2 |
0382827 |
PISTON RING SET, .040 o.s |
| 3 |
0307145 |
PIN, Wrist |
| 4 |
0305134 |
NUT,Flywheel |
| 5 |
0580645 |
FLYWHEEL,Pulley & ring gear assembly |
| 6 |
0312917 |
RING GEAR,Flywheel |
| 8 |
0312638 |
PULLEY,Distributor drive |
| 9 |
0312637 |
COVER,Pulley |
| 10 |
0304607 |
PULSE PACK SCREW ASSY |
| 11 |
0308082 |
SCREW |
| 12 |
0580648 |
STATOR ASSY.,15 amp |
| 15 |
0510472 |
CONNECTOR |
| 18 |
0312739 |
GUARD,Ring gear |
| 19 |
0302602 |
KEY,Flywheel |
| 20 |
0307061 |
SCREW,Stator to head |
| 21 |
0381580 |
CRANKCASE HEAD & BEARING ASSY |
| 22 |
0305110 |
SEAL |
| 23 |
0379456 |
BEARING |
| 24 |
0308995 |
SCREW, Front mount |
| 25 |
0308111 |
SCREW, C' case head upper |
| 26 |
0305123 |
O RING |
| 27 |
0302577 |
RETAINING RING |
| 28 |
0308865 |
PLATE |
| 31 |
0379572 |
CRANKCASE HEAD & BUSHING,Rear |
| 34 |
0310366 |
SCREW,Long |
| 35 |
0309925 |
SCREW,Short |
| 37 |
0305119 |
SEAL |
| 39 |
0305127 |
RETAINING WASHER |
| 40 |
0305140 |
SPRING |
| 41 |
0305125 |
RETAINING WASHER |
| 42 |
0305133 |
RETAINING RING |
| 43 |
0379698 |
CRANKSHAFT & SEAL RING ASSEMBLY |
| 44 |
0310044 |
SEAL RING (1 STRIPE) |
| 44 |
0310045 |
SEAL RING (2 STRIPES) |
| 44 |
0310046 |
SEAL RING (3 STRIPES) |
| 45 |
0308930 |
CONTAINER,Emergency start rope |
| 46 |
0310433 |
SLEEVE |
| 47 |
0378252 |
BEARING ASSY., Needle |
| 48 |
0378260 |
CONN. ROD ASSEMBLY |
| 50 |
0378515 |
BEARING SET, Needle,connecting rod |
| 51 |
0437088 |
BEARING Assy This part replaces 0378528. |
| 52 |
0378251 |
BEARING SET, Needle, wrist pin |
| 54 |
0329241 |
RONDELLE This part replaces 0306482. |
| 56 |
0312658 |
COVER,Heat sink |
| 57 |
0311230 |
INSULATOR,Heat sink |
| 58 |
0311231 |
SLEEVE,Stud |
| 59 |
0380161 |
HEAT SINK,Diode & stud,negative |
| 61 |
0380162 |
HEAT SINK & DIODE ASSY.,Positive |
| 62 |
0380163 |
CABLE ASSY.,Heat sink to motor cable |
| 63 |
0510469 |
TAB |
| 64 |
0510471 |
CONNECTOR |
| 65 |
0380166 |
CAPACITOR |
| 67 |
0309263 |
BOLT, Handle |
| 69 |
0308931 |
SCREW,Container mounting |
| 70 |
0378347 |
CORDE DE LANCEUR |
| 0381588 |
0381588 |
HEAT SINK,Cover & cable assy |
