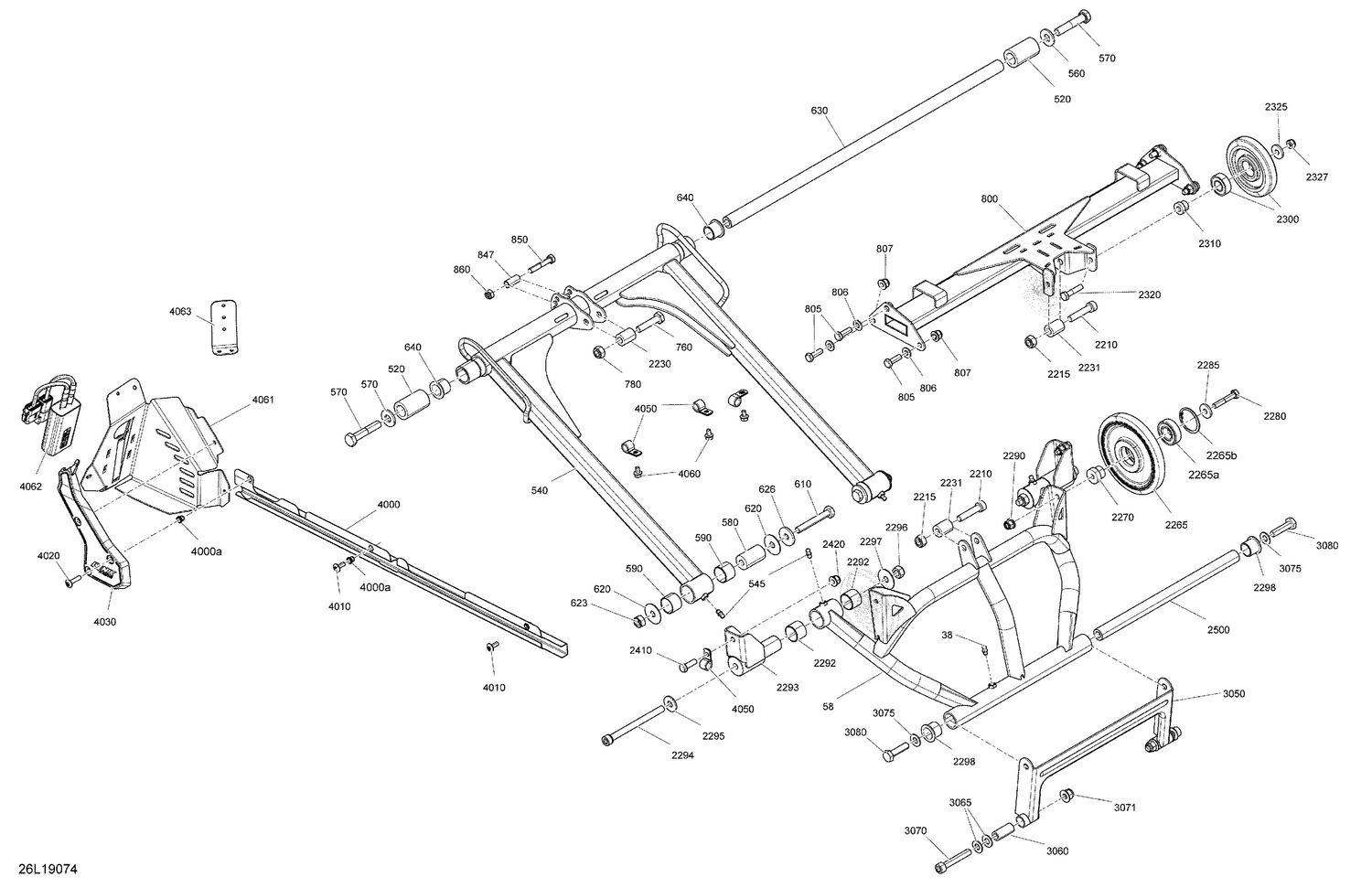

08- Rear Suspension_Upper Parts
Parts (46)
| Ref | Part Number | Description |
|---|---|---|
| 545 | 408200700 | Grease Fitting |
| 560 | 250200131 | Washer Spring Conical M12 |
| 570 | 250000555 | Hex. Cap Screw M12 x 60 |
| 580 | 605354157 | Etupukin ala-akseli |
| 590 | 503193700 | Bushing |
| 610 | 207007044 | Hex. Cap Screw M10 x 70 |
| 620 | 605355801 | Korialuslevy |
| 623 | 232500416 | Elastic Stop Nut M10 |
| 626 | 503183300 | Aluslevy M10, karkaistu |
| 640 | 31024 | Lower Cushion rear arm |
| 760 | 207004544 | Hex. Screw M10 X 45 |
| 780 | 232500416 | Elastic Stop Nut M10 |
| 805 | 250000556 | Hex. Cap Screw M8 x 25 |
| 806 | 503192494 | Washer |
| 807 | 233281414 | Hex. Flange Elastic Nut M8 |
| 847 | 605455335 | Sleeve |
| 850 | 207084544 | Hex. Screw M8 X 45 |
| 860 | 232581414 | Hex. Elastic Stop Nut M8 |
| 2210 | 40134 | Screw Socket HD.DIN 912 This part replaces 205004544. |
| 2215 | 232500416 | Elastic Stop Nut M10 |
| 2265a | 503190396 | Ball Bearing |
| 2265b | 415129371 | Retaining Ring |
| 2270 | 605454461 | Sleeve |
| 2280 | 207084544 | Hex. Screw M8 X 45 |
| 2285 | 20077 | M8 Washer |
| 2290 | 233281414 | Hex. Flange Elastic Nut M8 |
| 2292 | 503193700 | Bushing |
| 2295 | 503191926 | Washer |
| 2296 | 232500416 | Elastic Stop Nut M10 |
| 2297 | 605355801 | Korialuslevy |
| 2298 | 31024 | Lower Cushion rear arm |
| 2300 | 572043500 | Idler Wheel |
| 2310 | 503193330 | Sleeve |
| 2320 | 207083544 | Hex. Screw M8 X 35 |
| 2325 | 20077 | M8 Washer |
| 2327 | 232581414 | Hex. Elastic Stop Nut M8 |
| 2500 | 503192397 | Shaft |
| 3060 | 503192341 | Shaft, Rear Swing |
| 3065 | 234001410 | Flat Washer 10 mm |
| 3070 | 205006044 | Socket Head Screw M10 x 60 |
| 3071 | 233201414 | Hex. Flanged Elastic Nut M10 |
| 3075 | 234001410 | Flat Washer 10 mm |
| 3080 | 207204044 | Hex Cap Screw Din.931 S.grip |
| 4000a | 605636003 | Clinch Nut M6 Hexsert |
| 4061 | 518330469 | Black, LH Toe Hook |
| 4062 | 515177780 | CONTROL BOX TCU-4 (XU) |
