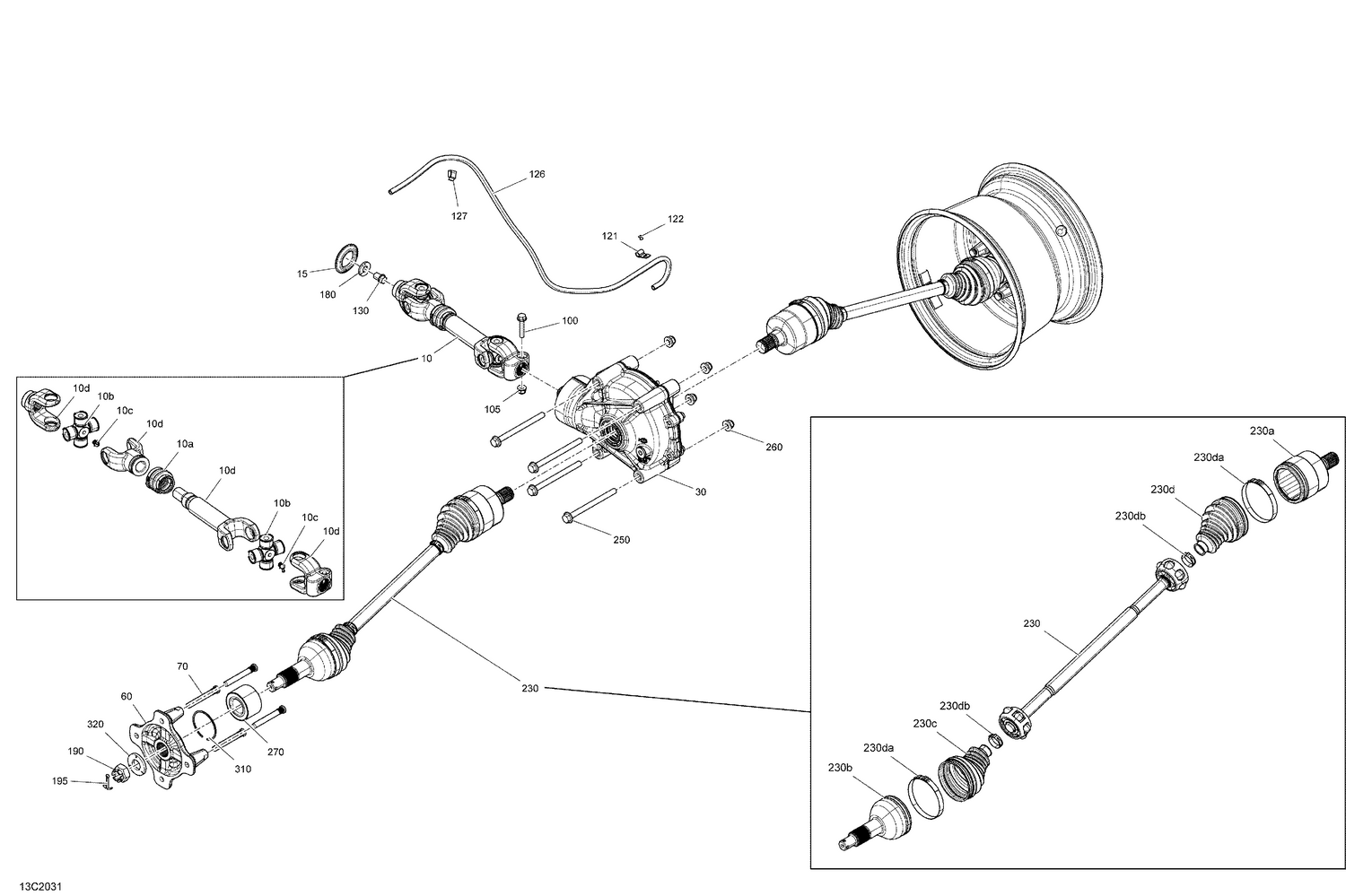

08- Rear Drive - Common Parts
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 715900118 | Rubber Boot |
| 10c | 715900295 | Grease Fitting |
| 10d | 715900436 | Joint |
| 15 | 705501123 | Protector |
| 60 | 705502470 | Wheel Hub |
| 70 | 705401964 | Wheel Stud |
| 100 | 250001050 | Hex. Flange Screw M8 X 42 |
| 105 | 233281416 | Hex. Elastic Flange Nut M8 |
| 121 | 414108400 | Open Clamp |
| 122 | 390402200 | Pop Rivet 3/16" |
| 126 | 219704390 | Was 293830195 Polyurethane Hose |
| 127 | 414227300 | Clip |
| 130 | 250001039 | Hex Flange Screw M12 X 16 |
| 180 | 250200005 | Conical Spring Washer M12 |
| 190 | 250100193 | Castle Nut M20 |
| 195 | 250400084 | Cotter Pin |
| 230a | 715900433 | Plunging Joint |
| 230b | 715900429 | JOINT_CV EXT - Call your local BRP dealership |
| 230c | 705501781 | Circlip |
| 230da | 715900241 | Oetiker Clamp, 82.1 mm |
| 230db | 715900242 | Oetiker Clamp, 27.3 mm |
| 250 | 230602546 | Hex. Flange Screw M10 X 125 |
| 260 | 233201436 | Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 270 | 293350150 | Ball Bearing This part replaces 293350118. |
| 310 | 293370019 | Circlip |
