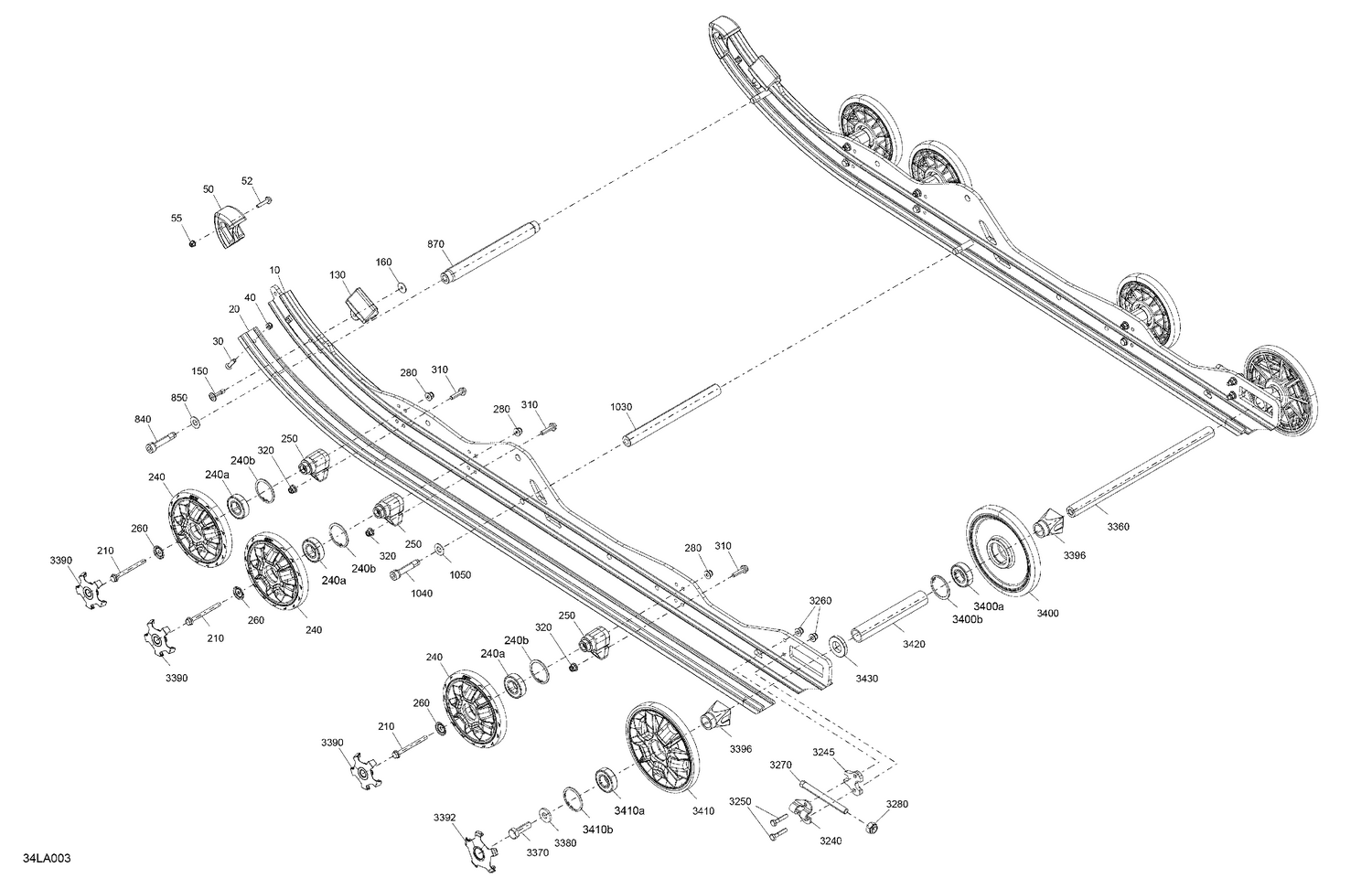

05- Suspension - Rear - Lower Section
Parts (41)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 503195532 | Viper Red, Runner |
| 20 | 503191499 | Black, Slider 146 |
| 30 | 208562531 | Phillips Screw M6 X 25 |
| 40 | 232561434 | Elastic Stop Nut M6 |
| 50 | 503192299 | Runner Protector |
| 52 | 207652544 | Hex. Flange Screw M5 X 25 |
| 55 | 233251434 | Flanged Elastic Nut M5 |
| 130 | 503192106 | Rubber Stopper |
| 150 | 293150224 | Rivet Pop 3/16 |
| 160 | 503191273 | Washer |
| 210 | 207667056 | Hex. Flange Screw M6 x 70 |
| 240a | 503190396 | Ball Bearing |
| 240b | 415129371 | Retaining Ring |
| 250 | 503193894 | Casted Support |
| 260 | 503191820 | Wheel Cup M6 |
| 280 | 233261466 | Hex. Flanged Elastic Nut M6 |
| 310 | 207662556 | Hex. Flange Screw M6 X 25 |
| 320 | 233261466 | Hex. Flanged Elastic Nut M6 |
| 840 | 205505054 | Socket Screw |
| 850 | 503192496 | Washer |
| 870 | 503195015 | Limiter Strap Shaft |
| 1030 | 5343471 | Eturemmin akseli |
| 1040 | 205505054 | Socket Screw |
| 1050 | 503192496 | Washer |
| 3240 | 503192583 | Tensioner |
| 3245 | 503193250 | Spacer |
| 3250 | 207063054 | Hex. Cap Screw M6 X 30 |
| 3260 | 233261466 | Hex. Flanged Elastic Nut M6 |
| 3270 | 230100054 | Hex Screw M10 x 100 |
| 3280 | 233601466 | Elastic Locking Nut M10 |
| 3360 | 503190429 | Rear Axle |
| 3370 | 250000817 | Hex Screw With Nilon Patch, M10 X 35 |
| 3380 | 503190439 | Washer |
| 3390 | 503195347 | Red, Wheel Cap |
| 3392 | 503195350 | Red, Wheel Cap |
| 3396 | 503190428 | Rear Wheel Spacer |
| 3400a | 503190396 | Ball Bearing |
| 3400b | 415129371 | Retaining Ring |
| 3410a | 503190396 | Ball Bearing |
| 3410b | 415129371 | Retaining Ring |
| 3420 | 503196317 | Spacer This part replaces 503190430. |
