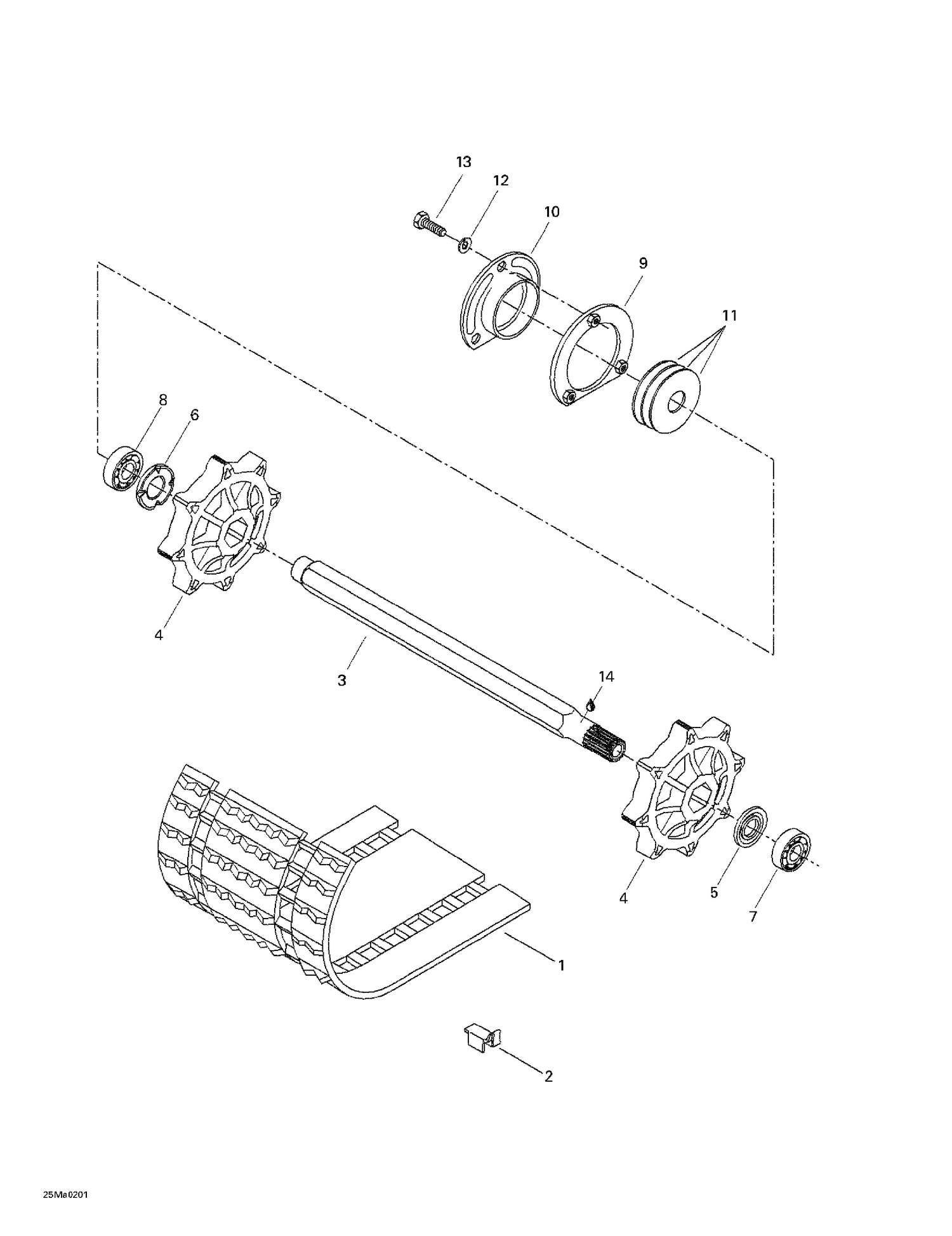

| Ref | Part Number | Description |
|---|
| 2 |
500002700 |
Guide Cleat |
| 3 |
504151800 |
DRIVE AXLE - Call your local BRP dealership |
| 4 |
504151817 |
SPROCKET 8 TOOTH - Call your local BRP dealership |
| 5 |
504152076 |
Seal Oil Ass'y |
| 6 |
501017400 |
BEARING PROTECTOR - Call your local BRP dealership |
| 7 |
293350115 |
Ball Bearing This part replaces 504152006. |
| 8 |
293350115 |
Ball Bearing This part replaces 405404500. |
| 9 |
501015200 |
Welded Retaining Ring |
| 10 |
501019500 |
Bearing Housing |
| 11 |
501020500 |
WASHER - Call your local BRP dealership |
| 12 |
234161471 |
Lock Washer M6, Black |
| 13 |
207161644 |
Hex. Screw M6 X 16 |
