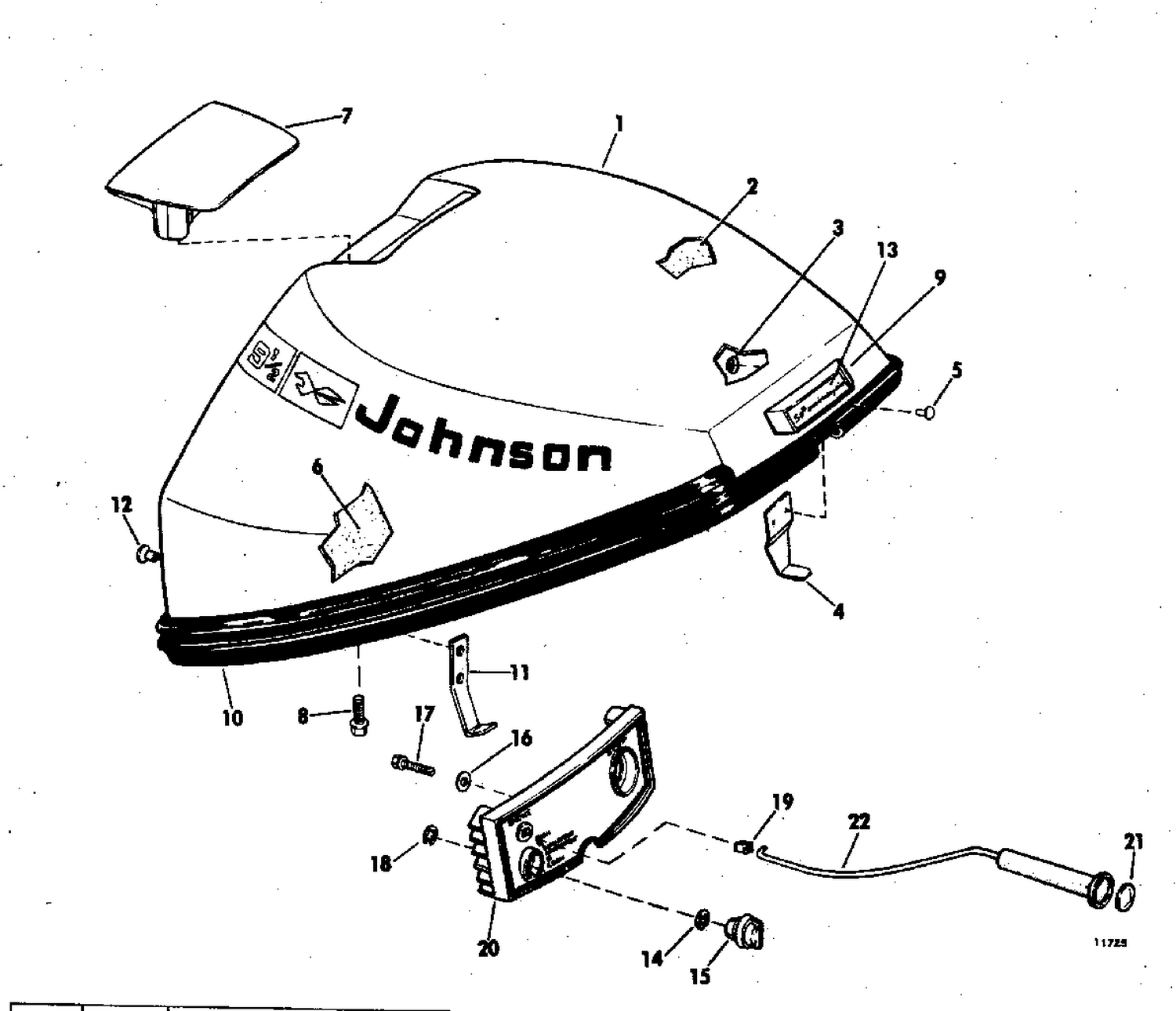

| Ref | Part Number | Description |
|---|
| 1 |
0384924 |
MOTOR COVER ASSEMBLY |
| 2 |
0310101 |
SOUND BLANKET, Top |
| 4 |
0309869 |
HOOK, Front |
| 6 |
0310102 |
SOUND BLANKET, Side |
| 7 |
0381165 |
TILT HAND & SCREW ASSY |
| 8 |
0312299 |
VIS, serre-câble |
| 9 |
0325763 |
APPLIQUE, Front This part replaces 0317087. |
| 10 |
0314757 |
SEAL MOTOR COVER |
| 11 |
0312199 |
HOOK, Rear |
| 12 |
0315705 |
RIVERT,Rear hook |
| 13 |
0317084 |
PLATE |
| 14 |
0312382 |
E-RING |
| 15 |
0314958 |
ADJUSTING KNOB, Slow speed |
| 17 |
0312299 |
VIS, serre-câble |
| 19 |
0320731 |
BUSHING, Choke knob This part replaces 0204450. |
| 20 |
0315792 |
CONTROL PANEL |
| 21 |
0315521 |
INSERT |
| 22 |
0383985 |
CHOKE KNOB AND ROD |
| 0385345 |
0385345 |
DECAL SET |
