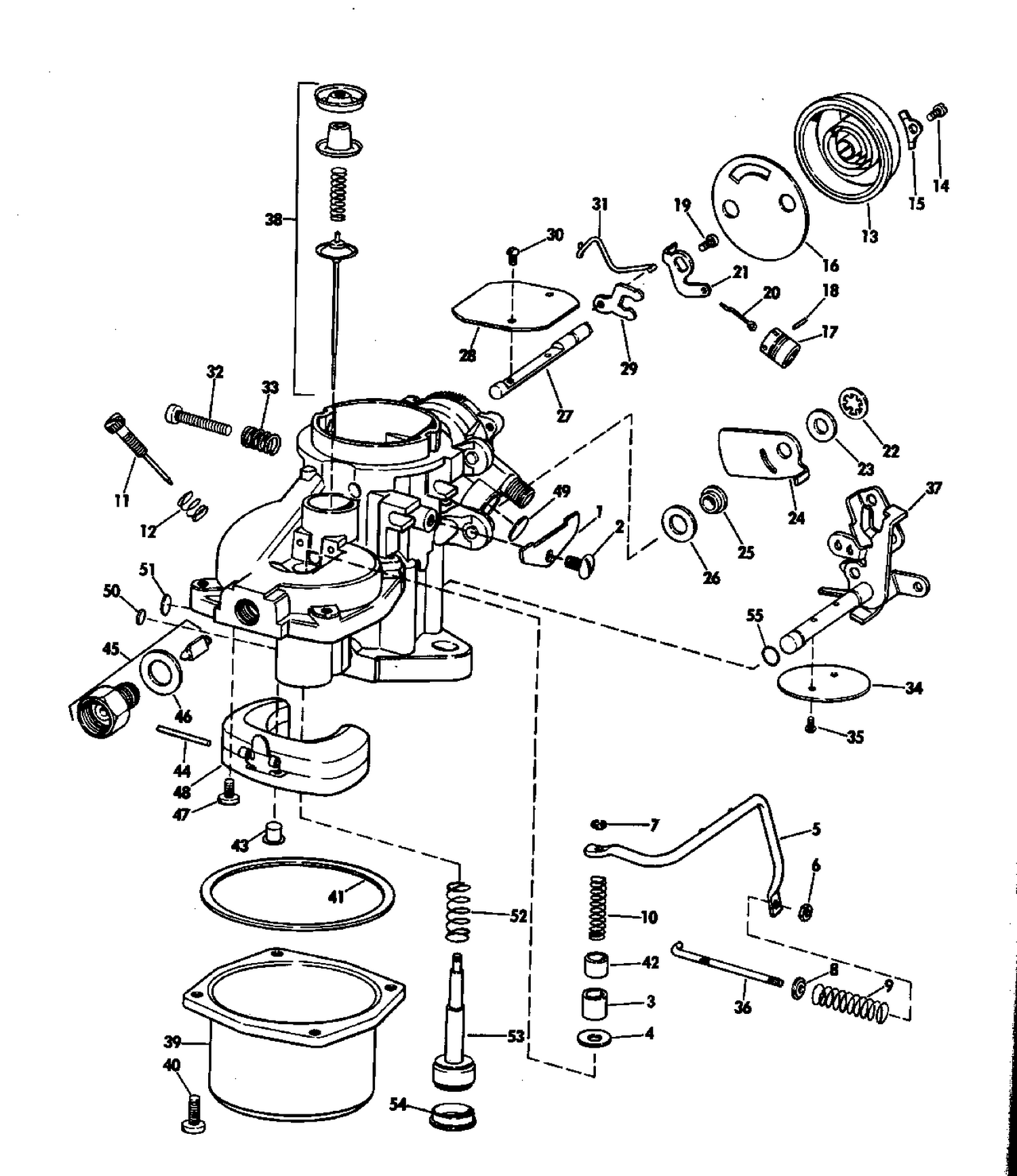

| Ref | Part Number | Description |
|---|
| 1 |
0311788 |
PUMP ARM RETAINER |
| 2 |
0311794 |
SCREW, Pump arm retainer |
| 3 |
0311820 |
BUSHING, Pump plunber shaft |
| 4 |
0311804 |
WASHER, Pump |
| 5 |
0311818 |
PUMP ARM |
| 6 |
0311798 |
NUT, Pimp arm connector link |
| 7 |
RETAINER, |
Pump rod |
| 8 |
0311789 |
RETAINER, Pump arm connector link |
| 9 |
0311819 |
SPRING, Pump arm connector link |
| 10 |
SPRING, |
Pump, upper |
| 11 |
0311776 |
SCREW, Idle adjustment |
| 12 |
0311784 |
SPRING, Idle adjustment |
| 13 |
0380615 |
THERMOSTAT COIL & HOUSING ASSEMBLY |
| 14 |
0907754 |
SCREW, Coil housing |
| 15 |
0311787 |
RETAINER, Coil housing |
| 16 |
GASKET, |
Coil housing |
| 17 |
0311807 |
PISTON, Choke |
| 19 |
0311792 |
SCREW, Choke piston lever |
| 20 |
0311800 |
LINK, Choke piston |
| 21 |
0311771 |
LEVER, Choke piston |
| 22 |
0311791 |
RETAINER, Fast idle |
| 23 |
0311805 |
WASHER, Fast idle cam collar |
| 24 |
0311808 |
CAM, Fast idle |
| 25 |
0311781 |
COLLAR, Fast idle cam |
| 26 |
0311803 |
WASHER, Fast idle cam |
| 27 |
0311770 |
CHOKE SHAFT |
| 28 |
0311768 |
CHOKE VALVE |
| 29 |
0907750 |
CHOKE LEVER |
| 30 |
0907751 |
SCREW, Choke valve |
| 31 |
0311799 |
ROD, Connector fast idle |
| 32 |
0311796 |
SCREW, Throttle |
| 33 |
0311782 |
SPRING, Throttle adjusting screw |
| 34 |
0311816 |
THROTTLE VALVE |
| 35 |
0907752 |
SCREW, Throttle valve |
| 36 |
0311821 |
LINK, Pump arm connector |
| 37 |
0381378 |
THROTTLE SHAFT & LEVER |
| 38 |
UNITZED |
PACKAGE, Step rod & diaphragm assy |
| 39 |
0311774 |
BOWL |
| 40 |
0311797 |
SCREW, Bowl attaching |
| 41 |
GASKET, |
Bowl ring |
| 42 |
0311812 |
BUSHING, Pump plunger |
| 43 |
PLUG, |
Pump plunger |
| 44 |
0311775 |
FLOAT LEVER PIN |
| 46 |
0311773 |
GASKET, Needle seat |
| 47 |
0311793 |
SCREW, Float pin |
| 48 |
0380616 |
FLOAT & LEVER ASSY |
| 49 |
0311779 |
WELSH PLUG, Choke piston |
| 50 |
0907753 |
WELSH PLUG, Fuel well |
| 51 |
0311769 |
PLUG, Idle port |
| 52 |
0311783 |
SPRING, Pump, lower |
| 53 |
PUMP |
PLUNGER ASSY. |
| 54 |
INTAKE |
CHECK ASSY. |
| 0979670 |
0979670 |
CARBURETOR ASSEMBLY |
