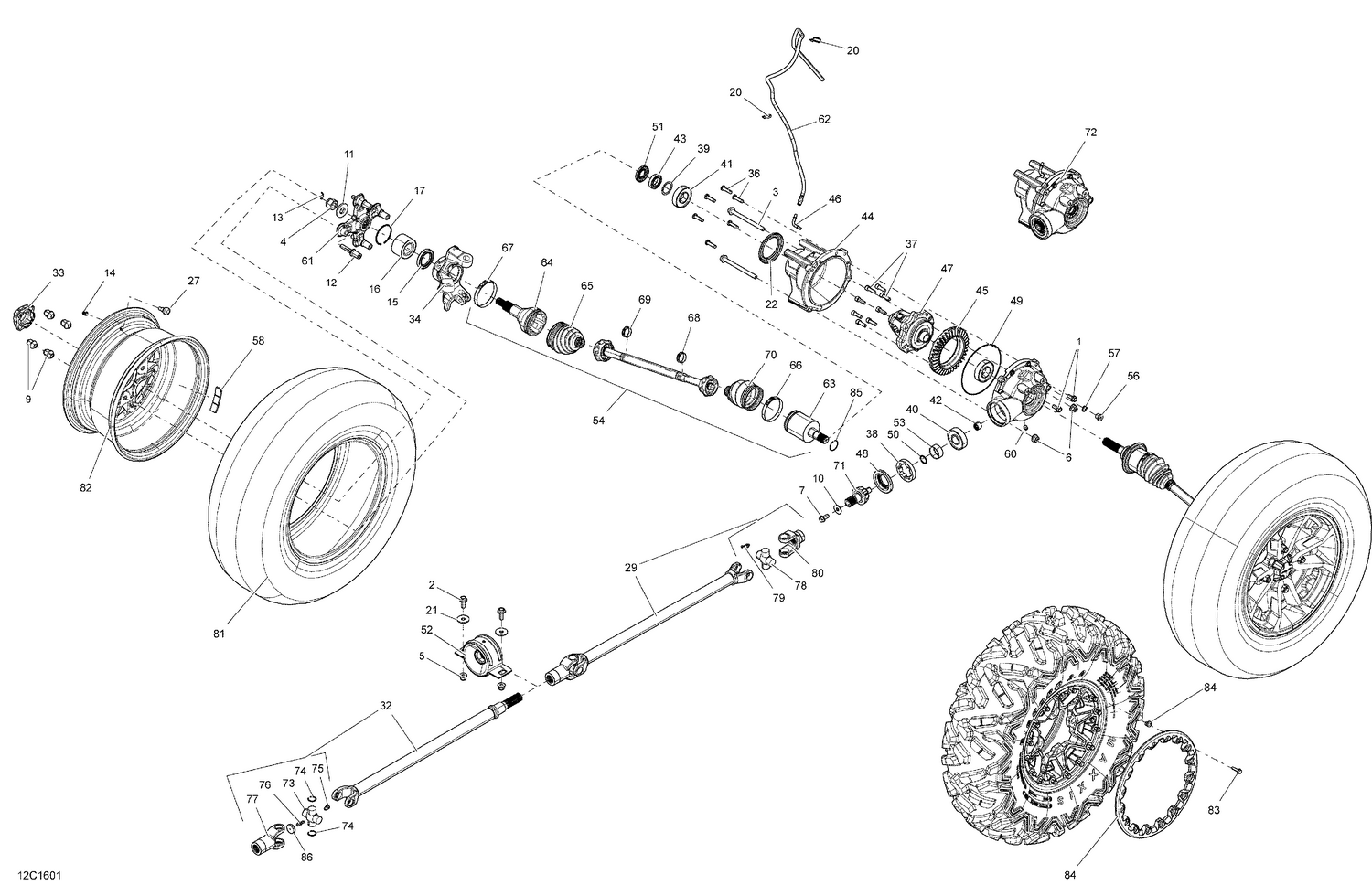

07- Drive System, Front
Parts (56)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 3 | 230602546 | Hex. Flange Screw M10 X 125 |
| 4 | 232291413 | Hex. Flange Castellated Nut M18 This part replaces 250100047. |
| 6 | 233201436 | Hex. Flange Elastic Nut M10 |
| 7 | 250001046 | Hex Flange Screw M10 X 20 S.Grip This part replaces 250000847. |
| 9 | 250100184 | Black, Wheel Nut M10 X 1.25 This part replaces 250100100. |
| 9 | 250100185 | Chrome Wheel Nut M10 X 1.25 This part replaces 250100082. |
| 10 | 250200014 | Flat Washer M10 |
| 11 | 250200171 | Conical Spring Washer M18 This part replaces 250200049. |
| 13 | 250400071 | Cotter Pin |
| 14 | 293000110 | Valve Cap |
| 15 | 293250246 | O-Ring |
| 16 | 293350150 | Ball Bearing This part replaces 293350040. |
| 17 | 293370019 | Circlip |
| 20 | 293750002 | Tie Wrap 142 mm |
| 22 | 705400780 | Wear Sleeve |
| 27 | 705400193 | Rim Valve With Cap |
| 29 | 705402066 | Axle Drive Ass'y This part replaces 705401239. |
| 34 | 705401548 | LH Front Knuckle |
| 34 | 705401549 | RH Front Knuckle |
| 36 | 705401601 | Screw |
| 37 | 705401602 | Screw |
| 38 | 705401603 | Nut |
| 39 | 705401604 | Shim |
| 40 | 705401605 | Ball Bearing |
| 41 | 705401606 | Ball Bearing |
| 42 | 705402848 | Ball Bearing This part replaces 705401607. |
| 43 | 705401608 | Ball Bearing |
| 44 | 705401610 | Front Cover |
| 45 | 705401612 | Gear 36 Teeth |
| 46 | 705401613 | Vent Valve |
| 47 | 705402184 | Differential This part replaces 705401614. |
| 48 | 705401615 | Oil Seal |
| 49 | 705401616 | Seal |
| 50 | 705401617 | O'Ring |
| 51 | 705401618 | Gasket |
| 53 | 705400036 | Wear Ring |
| 54 | 705401871 | LH Front - Premium CV Axle This part replaces 705401653. |
| 54 | 705401872 | RH Front - Premium CV Axle This part replaces 705401654. |
| 56 | 705500504 | Fill Level Plug |
| 57 | 705500506 | Copper Washer |
| 60 | 705501885 | Drain Plug |
| 62 | 219704410 | Polyurethane Hose 10000Mm Long |
| 63 | 705401348 | RH Plunging Joint |
| 64 | 705401344 | CV Joint |
| 65 | 705401345 | Boot Kit, Wheel Side |
| 66 | 715900284 | Oetiker Clamp, Large |
| 67 | 715900282 | Oetiker Clamp |
| 68 | 715900283 | Oetiker Clamp, Small |
| 69 | 715900261 | Oetiker Clamp, Small |
| 70 | 705401346 | Boot Kit, Differential Side |
| 71 | 705402841 | Pinion 10 Teeth This part replaces 705401791. |
| 78 | 715900325 | Ens. Croix*U-Joint Cross Kit This part replaces 703500814. |
| 79 | 703500815 | Grease Fitting |
| 80 | 715900116 | Fixed Yoke Joint |
| 85 | 705401349 | Circlip Joint |
