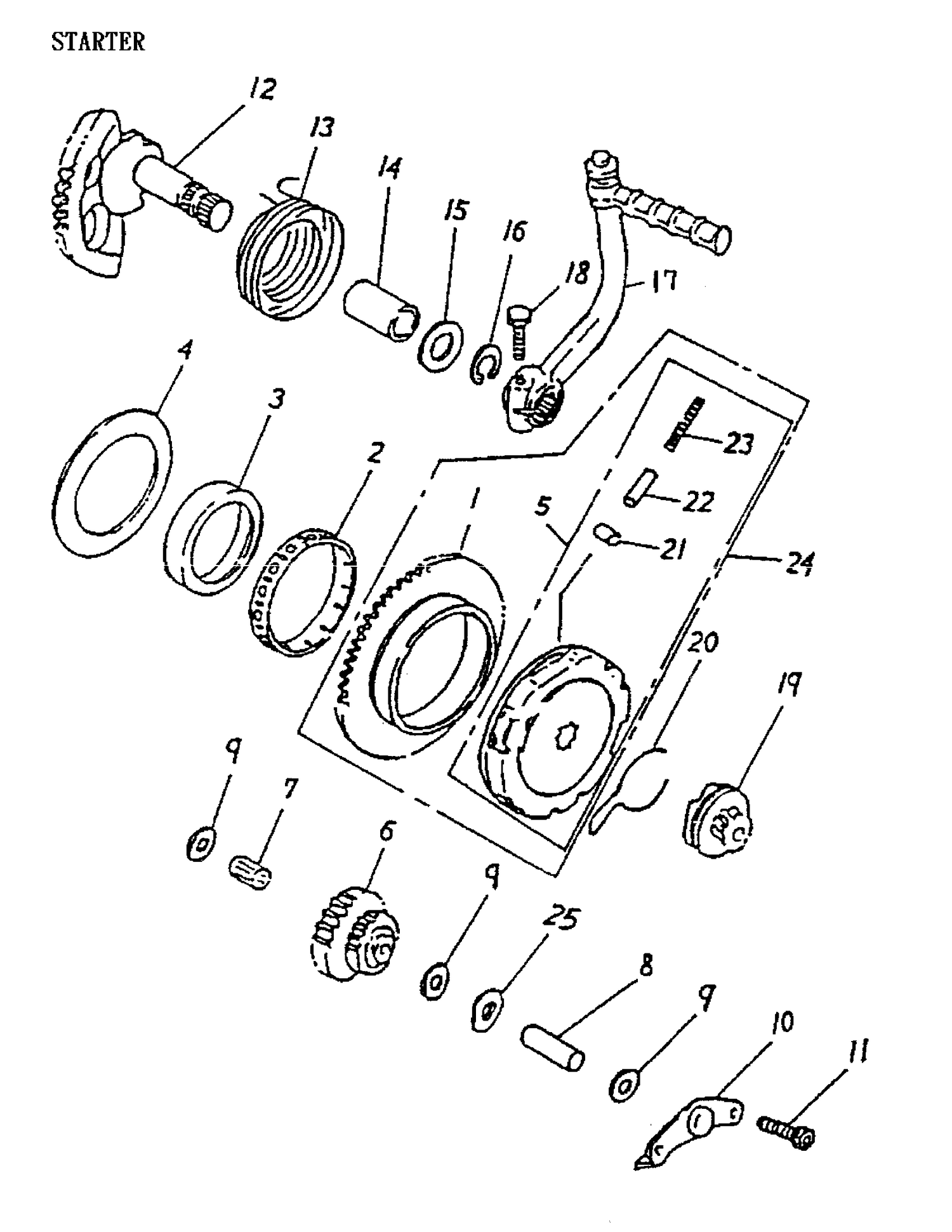

04- Starter 170-09
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A28220116000 | Starter Wheel |
| 2 | A96200555912 | NEEDLE BEARING, 55 X 59 X 12.5 - Call your local BRP dealership |
| 3 | A96202116000 | BOSS - Call your local BRP dealership |
| 4 | A941015676006 | Plain Washer, 56 X 76 X 0.6 |
| 5 | A28410117000 | Electric Starter Clutch Set |
| 6 | A23422116000 | Idler Gear |
| 7 | A96200081210 | NEEDLE BEARING, HK8 X 12 X 10 - Call your local BRP dealership |
| 8 | A96300080320 | SHAFT IDLER - Call your local BRP dealership |
| 9 | A941010818008 | Plain Washer, 8.2 X 18 X 0.8 |
| 10 | A11206116000 | IDLER GEAR PLATE - Call your local BRP dealership |
| 11 | A9100006010 | Hex. Socket Bolt M6 X 10 |
| 12 | A28250116000 | Starting Shaft Ass'y |
| 13 | A28281110000 | STARTING SHAFT RESET SPRING - Call your local BRP dealership |
| 14 | A96401152030 | BUSHING - Call your local BRP dealership |
| 15 | A941011528010 | Plain Washer, 15.2 X 28 X 1 |
| 16 | A945111500S | External Circlip |
| 17 | A28300104000 | Kick Crank Ass'y |
| 18 | A960000602510 | Hex. Washer Face Bolt M6 X 25 |
| 19 | A28230104000 | Kick Pinion Ass'y |
| 20 | A28223104000 | Kick Pinion Spring Clip |
| 21 | A28411116001 | CLUTCH ROLLER - Call your local BRP dealership |
| 22 | A28412116000 | Clutch Guider |
| 23 | A28413116001 | Clutch Spring |
| 24 | A28400117000 | Electric Starter Clutch Ass'y |
