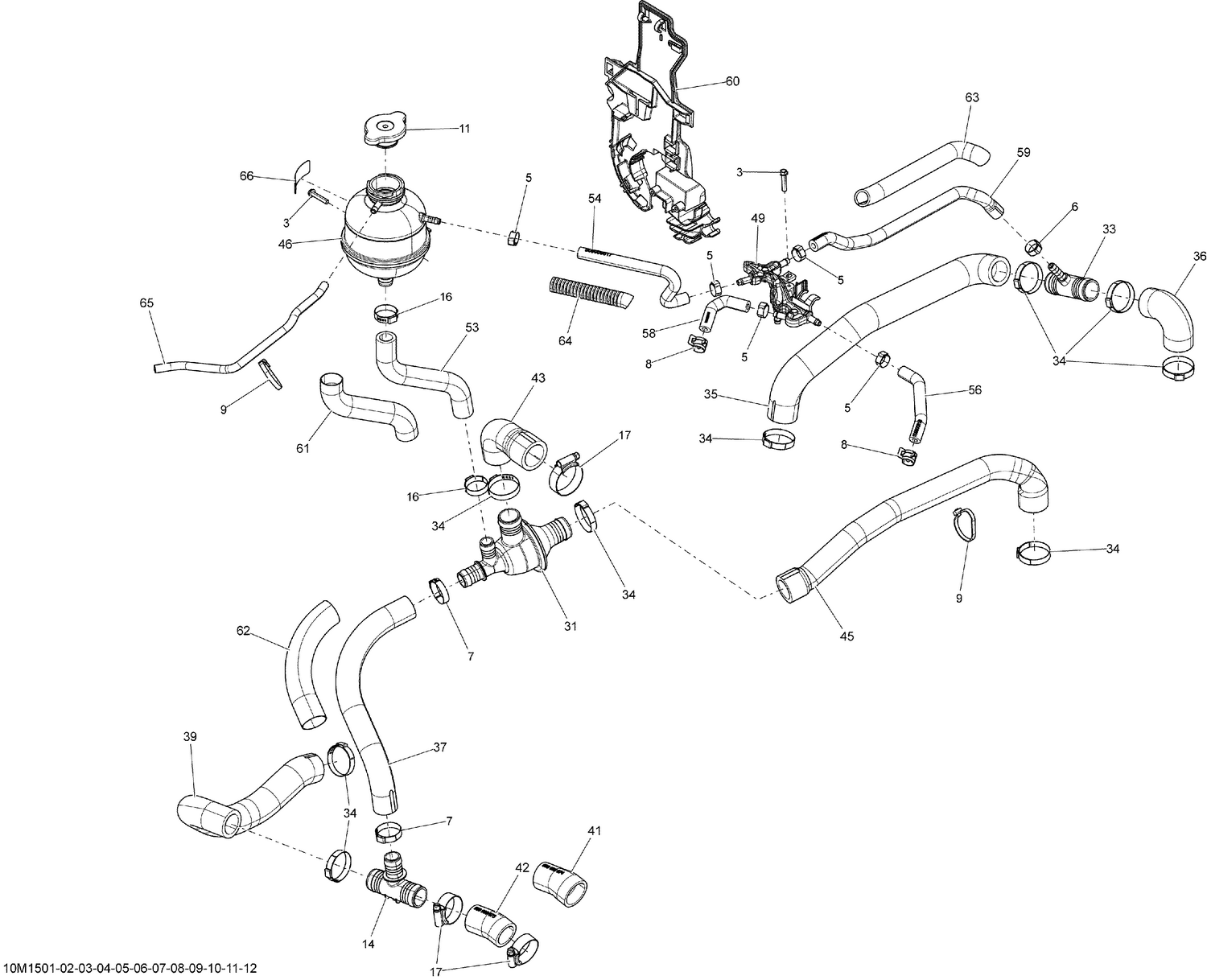

01- Cooling System 600HOETEC_10M1509
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 241152540 | Hex. Flange Screw K50 X 2.24 X 25 |
| 5 | 293650046 | Oetiker Clamp |
| 6 | 293650047 | Crimp Clamp, 15.3-706R |
| 7 | 293650099 | Crimp Clamp |
| 8 | 293650210 | Spring Clamp |
| 9 | 414115200 | Tie-Rap 180 mm |
| 11 | 509000180 | Radiator Pressure Cap |
| 14 | 509000372 | T-Fitting |
| 16 | 509000442 | Oeticker Gear Clamp, 25.6-706R |
| 17 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 31 | 509000499 | Thermostat Housing |
| 33 | 509000510 | T-Fitting |
| 34 | 509000529 | Oetiker Gear Clamp, 36.5-706R |
| 35 | 509000670 | Radiator Hose |
| 36 | 509001066 | Radiator Hose This part replaces 509000671. |
| 37 | 509000672 | Bypass Hose |
| 39 | 509000673 | Radiator Hose |
| 41 | XXX | Not Available As Spare Parts |
| 42 | 509001067 | Engine Inlet Hose This part replaces 509000675. |
| 43 | 509000678 | Engine Outlet Hose |
| 45 | 509000679 | Thermostat Outlet Hose |
| 46 | 509000802 | Coolant Tank |
| 49 | 509000803 | Bleed Collector |
| 53 | 509000812 | Filling Hose |
| 54 | 509000817 | HOSE - Call your local BRP dealership |
| 56 | 509000818 | Bleeder Hose |
| 58 | 509000819 | Bleeder Hose |
| 59 | 509000906 | Bleeder Hose |
| 60 | 509000973 | TANK-SUPPORT - Call your local BRP dealership This part replaces 509000908. |
| 61 | 219704421 | Protector Tube 32 Mm 1000Mm Long |
| 62 | 219704421 | Protector Tube 32 Mm 1000Mm Long |
| 63 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 64 | 219704400 | Was 409901800 Tubing (13 mm) |
| 65 | 219704360 | Hose 6 Mm 15000Mm Long |
