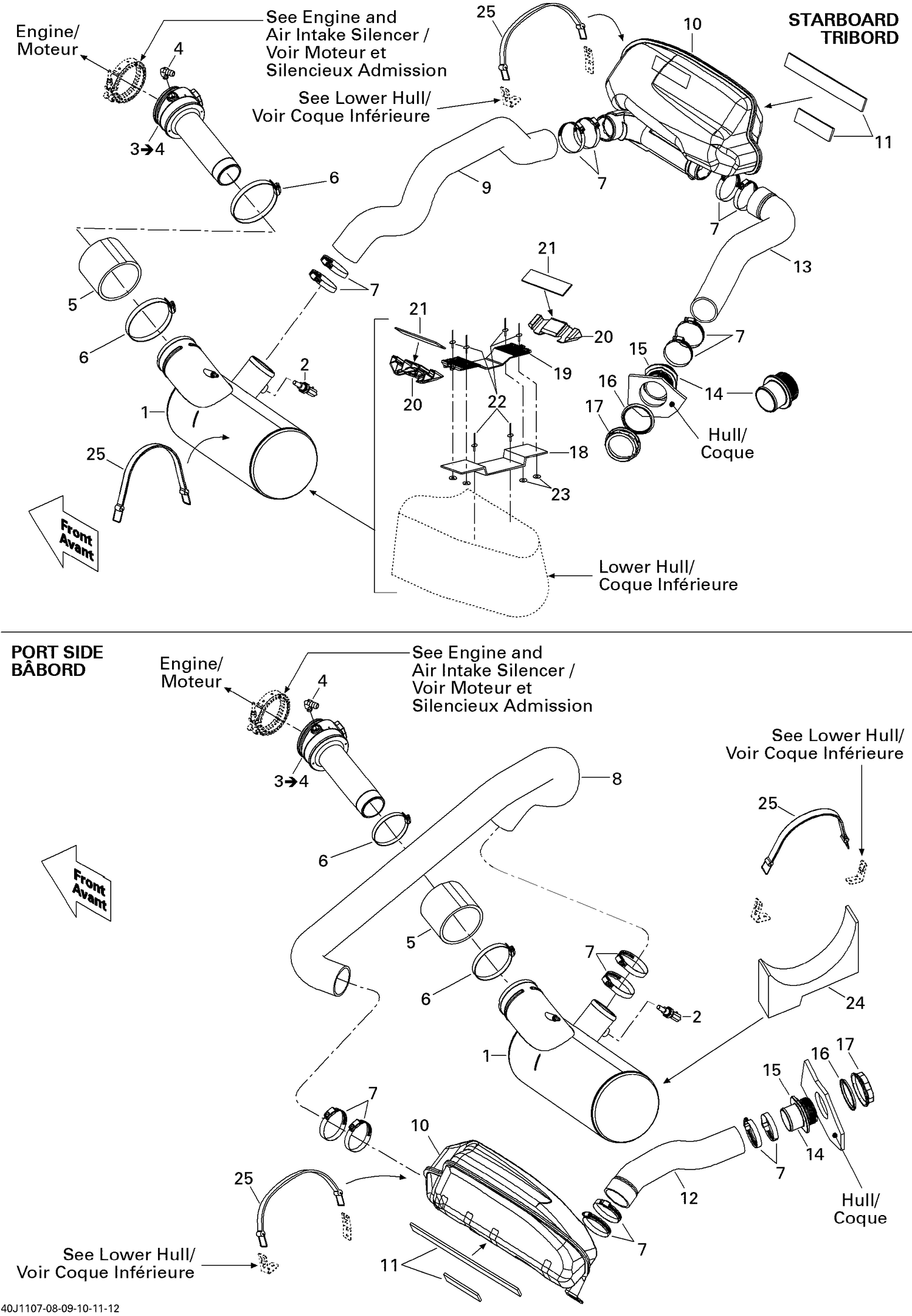

| Ref | Part Number | Description |
|---|
| 1 |
274001648 |
Muffler This part replaces 274001384. |
| 2 |
278002895 |
Temperature Sensor This part replaces 278001016. |
| 4 |
293700023 |
Elbow Fitting 90° |
| 5 |
274001348 |
Hose |
| 6 |
293650202 |
Gear Clamp |
| 7 |
293650179 |
Tridon Clamp |
| 8 |
274001403 |
EXHAUST HOSE, PORT - Call your local BRP dealership |
| 9 |
274001405 |
EXHAUST HOSE, STARBOARD - Call your local BRP dealership |
| 10 |
274001366 |
Resonator |
| 11 |
202000024 |
NEOPRENE, METER - Call your local BRP dealership |
| 12 |
0460772 |
NEEDS DESCRIPTION This part replaces 274001404. |
| 13 |
274001406 |
EXHAUST HOSE, STARBOARD - Call your local BRP dealership |
| 14 |
274001391 |
Exhaust Hose, Outlet |
| 15 |
293250041 |
GASKET - Call your local BRP dealership |
| 16 |
274000225 |
STABILIZING WASHER - Call your local BRP dealership |
| 17 |
274000224 |
Nut 72 mm |
| 18 |
274001430 |
EXHAUST SUPPORT - Call your local BRP dealership |
| 19 |
274001479 |
Exhaust Muffler Support This part replaces 274001357. |
| 20 |
274001721 |
Stopper This part replaces 274001358. |
| 21 |
293830126 |
Rubber Pad |
| 22 |
293150043 |
Pop Rivet 3/16" |
| 23 |
234051600 |
Flat Washer M5, Stainless |
| 24 |
204340522 |
MUFFLER SUPPORT - Call your local BRP dealership |
