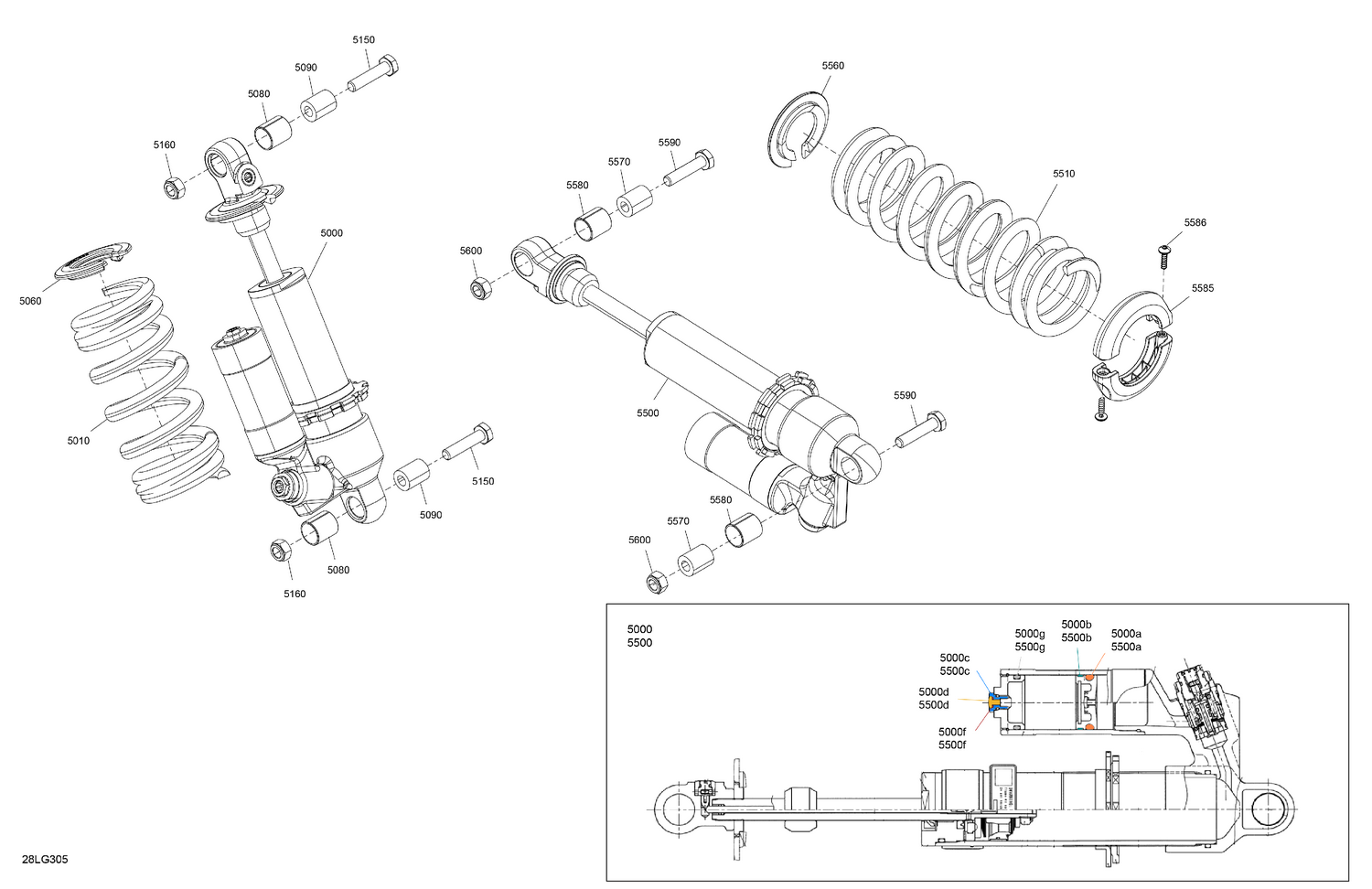

05- Suspension - Rear Shocks
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 5000a | 415093807 | O-Ring |
| 5000b | 415093806 | Piston Ring |
| 5000c | 505070398 | Air Valve |
| 5000d | 505070399 | Screw |
| 5000f | 505070400 | O-Ring |
| 5000g | 415093804 | O-Ring |
| 5010 | 503196560 | Spring 220 Mm-55 N/Mm |
| 5060 | 503196528 | Stopper Spring |
| 5080 | 503198187 | Shock Absorber Bushing |
| 5090 | 5446652 | Bushing |
| 5150 | 207004544 | Hex. Screw M10 X 45 |
| 5160 | 232500416 | Elastic Stop Nut M10 |
| 5500a | 415093807 | O-Ring |
| 5500b | 415093806 | Piston Ring |
| 5500c | 505070398 | Air Valve |
| 5500d | 505070399 | Screw |
| 5500f | 505070400 | O-Ring |
| 5500g | 415093804 | O-Ring |
| 5510 | 503196563 | Spring 280Mm-60 N/Mm |
| 5560 | 503196528 | Stopper Spring |
| 5570 | 5446652 | Bushing |
| 5580 | 503198187 | Shock Absorber Bushing |
| 5585 | 503196256 | Protection Sleeve |
| 5586 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 5590 | 207004544 | Hex. Screw M10 X 45 |
