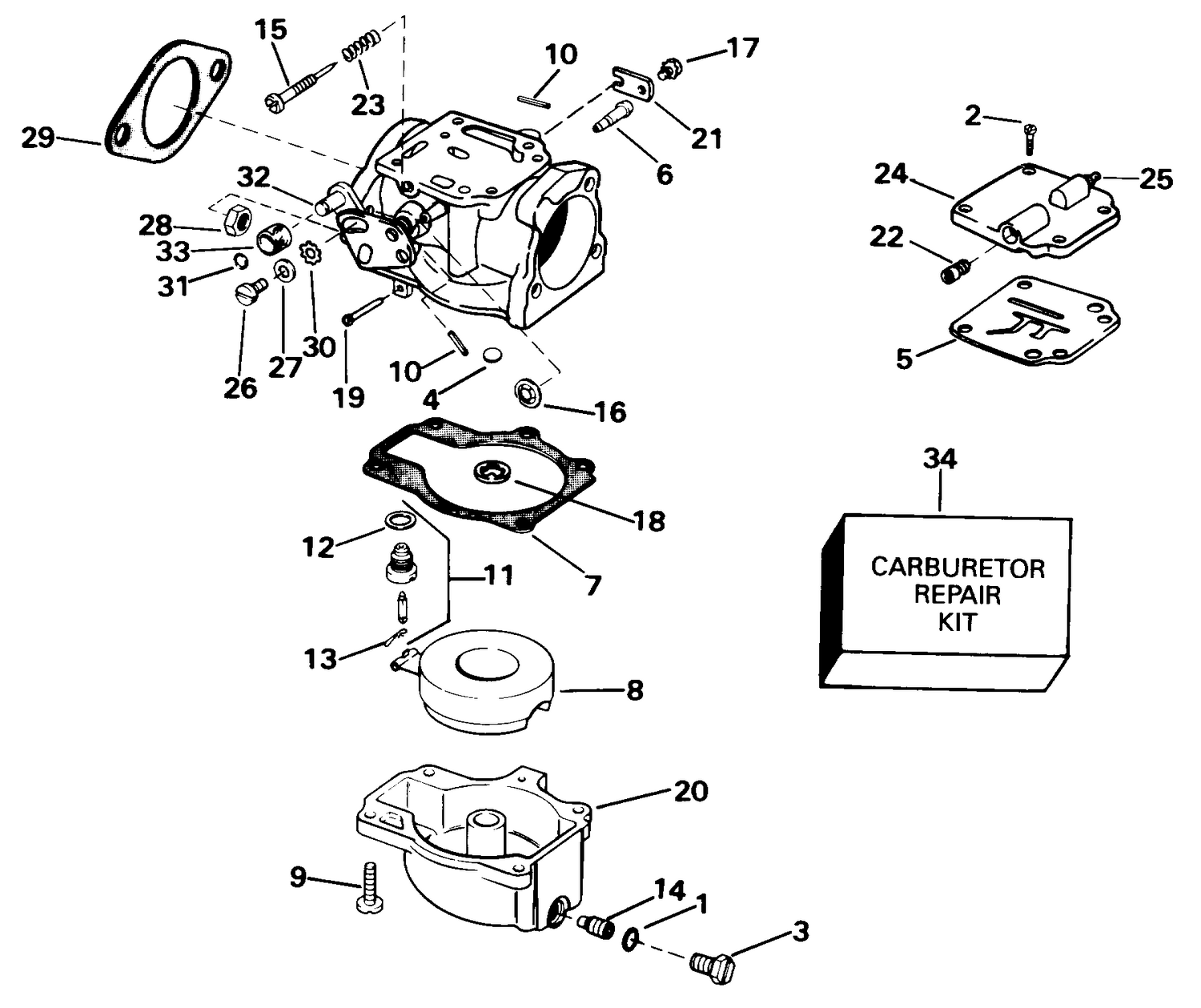

CARBURETOR -- 50, 60, 70
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 13 | 0336842 | CLIP, SPRING |
| 14 | 0333182 | ORIFICE, No. 41D |
| 22 | 0328524 | ORIFICE, No. 40D |
| 26 | 0306014 | VIS, ancrage |
| 28 | 0316355 | BUT, Carburetor mounting |
| 29 | 0325092 | GASKET |
| 31 | 0324678 | JOINT TORIQUE Galet de came de papillon |
| 32 | 0432638 | LEVER & PIN |
| 33 | 0432639 | GALET, contre-came |
| 0439452 | 0439452 | CARBURETOR ASSEMBLY |
| 0439453 | 0439453 | CARBURETOR ASSEMBLY |
| 0439459 | 0439459 | CARBURETOR ASSEMBLY |
