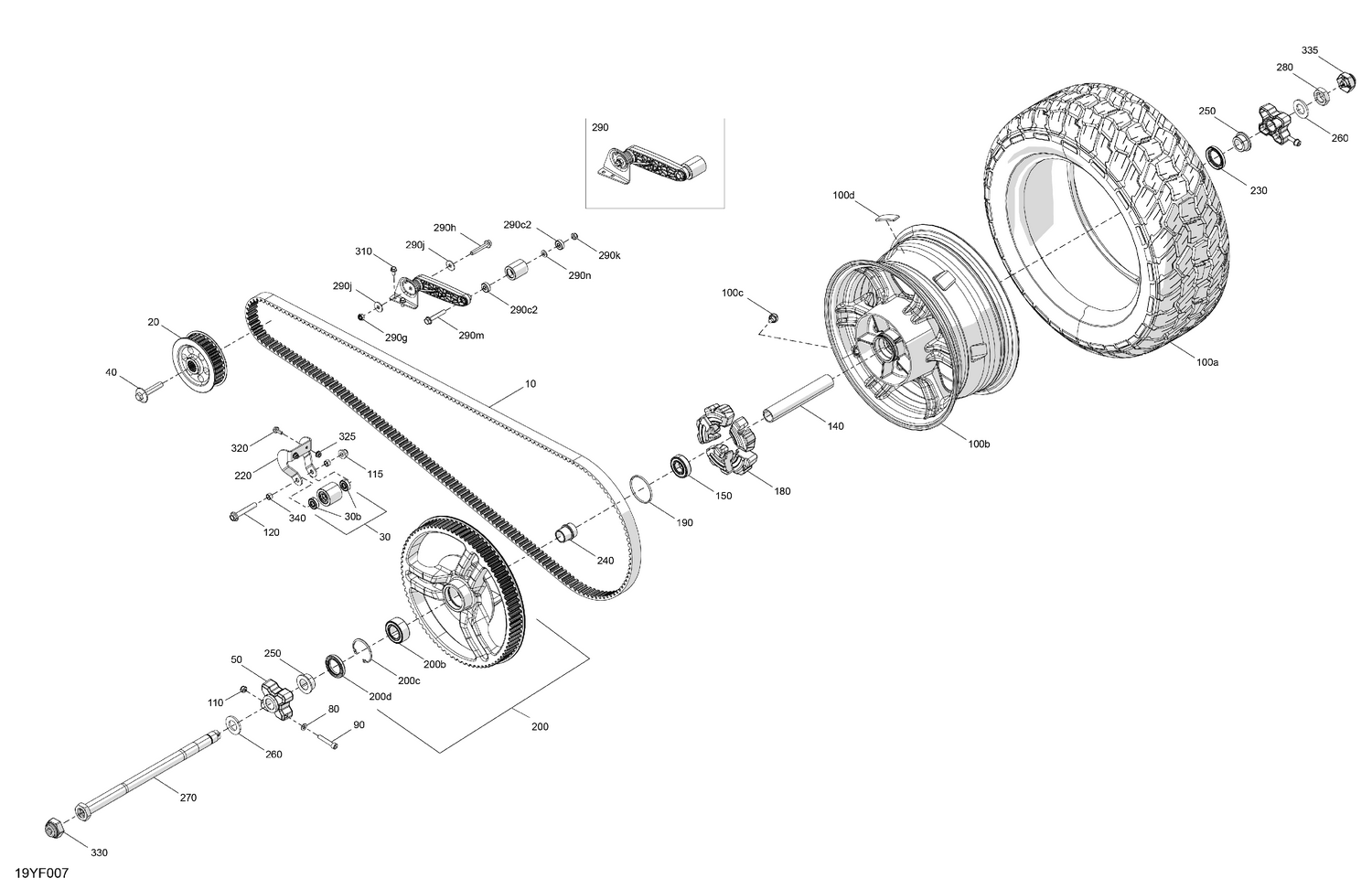

04- Drive - Rear - Common Parts
Parts (40)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 705504096 | Drive Belt |
| 20 | 705504092 | Catalyst Gray, Sprocket Wheel 28 Teeth |
| 30b | 705601974 | Ball Bearing |
| 40 | 250001017 | Hex Flange Screw DIN.6921 S.Grip |
| 50 | 706005898 | Sliding Block |
| 80 | 234081410 | Flat Washer 8 mm |
| 90 | 250000713 | Socket Screw DIN.912 |
| 100a | 705503662 | Rear Tire 225/50R15 |
| 100b | 705501992 | Black, Rear Rim |
| 100c | 705400193 | Rim Valve With Cap |
| 100d | 705502106 | Self Adhesive Weight, 5G 20mm |
| 110 | 250100141 | Hex. Elastic Nut M8 |
| 115 | 233201436 | Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 120 | 207606536 | Hex. Flange Screw M10 X 65 |
| 140 | 705502093 | Spacer Tube |
| 150 | 293350186 | Ball Bearing |
| 180 | 705503473 | Shock Absorber Bushing |
| 190 | 293300124 | O-Ring |
| 200b | 293350152 | Double Bearing Ball |
| 200c | 293370053 | Circlip |
| 200d | 293200094 | Seal |
| 220 | 705504111 | Pulley Support |
| 230 | 293200094 | Seal |
| 240 | 705500853 | Spacer |
| 250 | 705501602 | Spacer |
| 260 | 250200163 | Flat Washer |
| 270 | 705501691 | Rear Wheel Axle |
| 280 | 250100170 | Hex. Jam Nut M24 |
| 290c2 | 293350149 | Bearing |
| 290g | 232581414 | Hex. Elastic Stop Nut M8 |
| 290h | 207685044 | Hex. Flange Screw M8 X 50 |
| 290j | 234082410 | Flat Washer 8 mm |
| 290k | 232581414 | Hex. Elastic Stop Nut M8 |
| 290m | 207685044 | Hex. Flange Screw M8 X 50 |
| 290n | 234081410 | Flat Washer 8 mm |
| 310 | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 320 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 325 | 233061414 | Hex. Flange Nut M6 |
| 330 | 705502248 | Nut Cap |
| 335 | 705502248 | Nut Cap |
