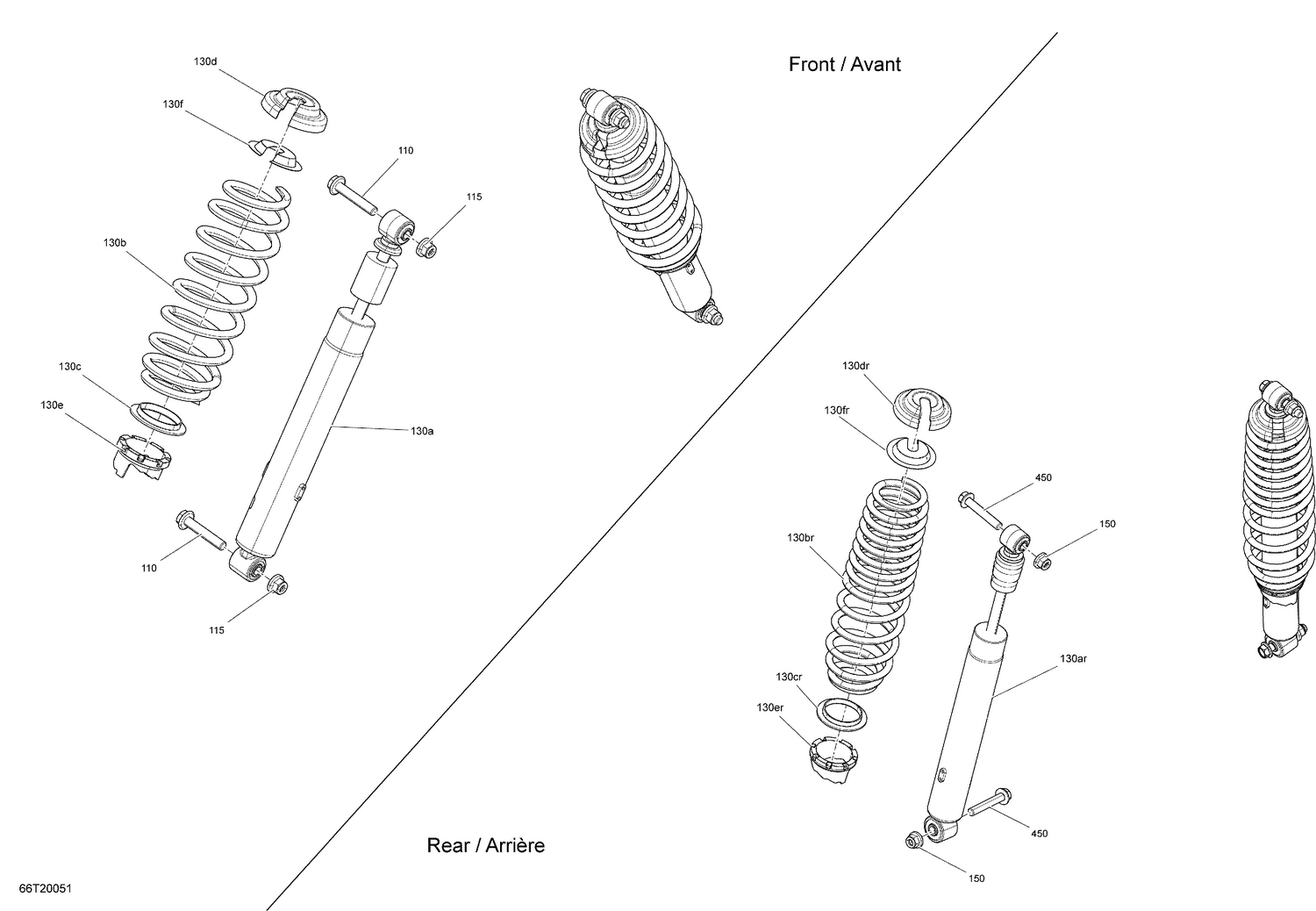

08- Shocks - North Edition
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 110 | 207605546 | Hex. Flange Screw M10 X 55 |
| 115 | 233201436 | Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 130a | 706203204 | Shock Absorber |
| 130ar | 706003033 | Rear Shock Absorber |
| 130b | 706203412 | Black, Spring |
| 130br | 706004890 | Deep Black, Compression Spring This part replaces 706003056. |
| 130c | 505073625 | Adjustment Cam |
| 130cr | 505073625 | Adjustment Cam |
| 130d | 706200881 | Spring Stopper |
| 130dr | 706200881 | Spring Stopper |
| 130e | 503187500 | Spring Guide |
| 130er | 503187500 | Spring Guide |
| 130f | 706200785 | Cap |
| 130fr | 706200785 | Cap |
| 150 | 233201436 | Hex. Flange Elastic Nut M10 This part replaces 233201416. |
