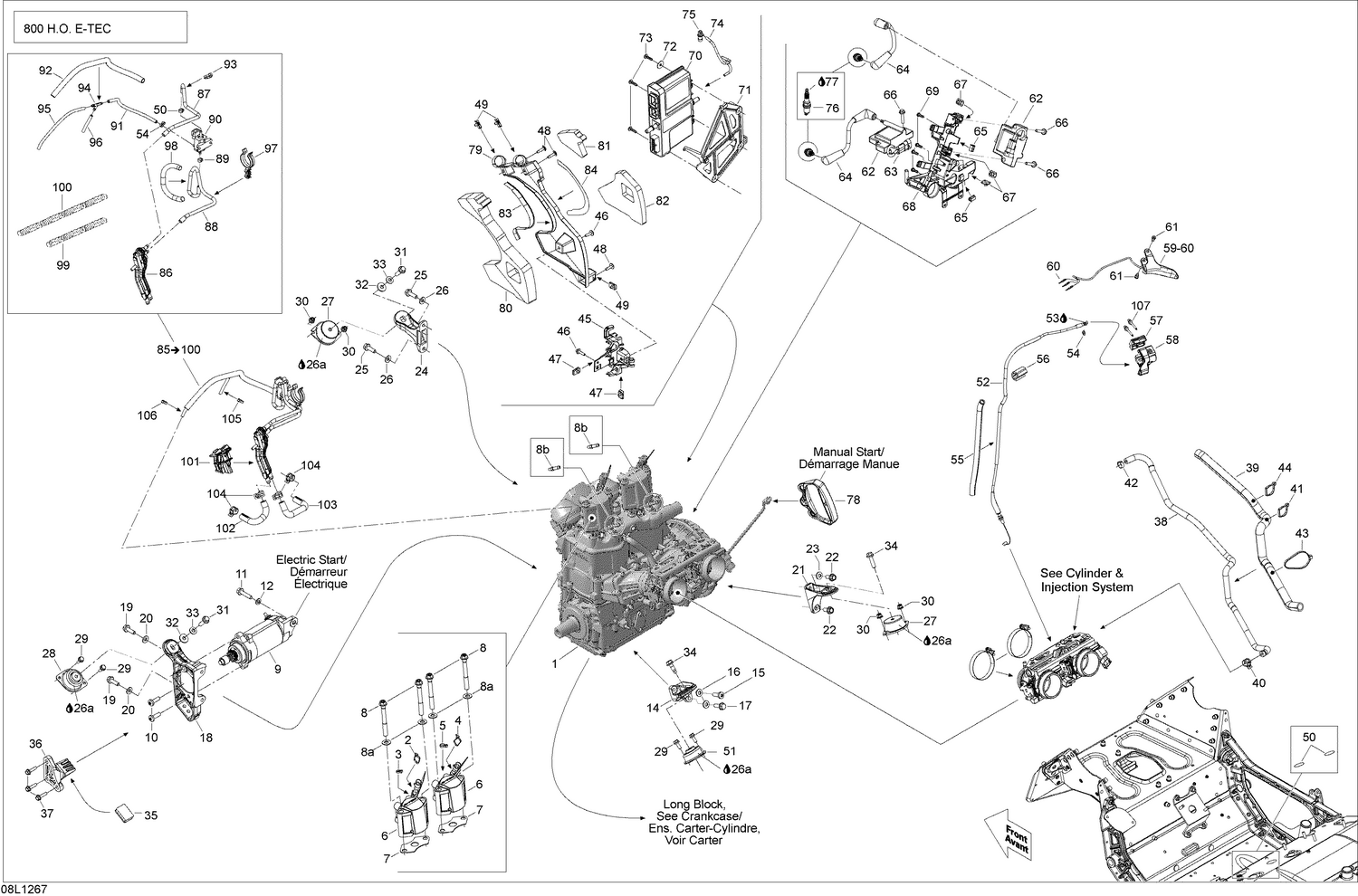

01- Engine And Engine Support

01- Engine And Engine Support

Parts (102)

RefPart NumberDescription
1 Not Available As Spare Part - Engine 800HOE With Rewind Starter
2 293750001 Tie-Rap 94 mm
3 293750002 Tie-Rap 142 mm
4 293750001 Tie-Rap 94 mm
5 293750002 Tie-Rap 142 mm
6 512061054 Fuel Injector Ass'y This part replaces 512060728.
7 420430930 Gasket
8 420441187 Flanged Torx Screw M10 X 90 -SW 13/T50
8a 234001410 Flat Washer 10 mm
8b 420924724 Hose Nipple
13 XXX Not Available As Spare Parts
14 512060478 Rear Support, PTO
15 250000752 Pan HD Torx Screw M8 x 25 This part replaces 250000248.
16 234281474 Conical Spring Washer M8
17 207582586 Hex. Flange Screw M8 X 25, Scotch Grip
18 512060714 Front Support PTO
19 207582586 Hex. Flange Screw M8 X 25, Scotch Grip
20 234281474 Conical Spring Washer M8
21 512060559 Rear Support, MAG
22 207582044 Hex. Flange Screw M8 X 20, Scotch Grip
23 234281474 Conical Spring Washer M8
24 512060469 Front Support, MAG
25 207582586 Hex. Flange Screw M8 X 25, Scotch Grip
26 234281474 Conical Spring Washer M8
26a 293550033 SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership
27 512060729 Rubber Mount This part replaces 512060457.
28 512061507 Damper_Vibration This part replaces 512060387.
29 207561644 Hex Flange Screw M6 X 16, Scotch Grip
30 233261414 Hex. Flange Elastic Nut M6 x 1.0
31 207583086 Hex. Flange Screw M8 X 25, Scotch Grip
32 503183200 Yellow, Washer
33 234281474 Conical Spring Washer M8
34 250000796 Hex. Flanged Screw M8 X 25 This part replaces 250000361.
35 512060766 Stopper
36 512060576 Stopper Support
37 207562544 Hex. Flange Screw M6 X 25
38 512060741 FORMED HOSE, OUTPUT - Call your local BRP dealership
39 415080000 Tubing 16 mm
40 293650172 Tridon Gear Clamp
41 414115200 Tie-Rap 180 mm
42 293650046 Oetiker Clamp
43 414115200 Tie-Rap 180 mm
44 414115200 Tie-Rap 180 mm
45 512060298 Solenoid Support
46 207652044 Hex. Flange Screw M5 X 20
47 250000958 Panel Nut M5 X 0.8 This part replaces 250000079.
48 207652044 Hex. Flange Screw M5 X 20
49 250000958 Panel Nut M5 X 0.8 This part replaces 250000079.
50 518325560 Adhesive Patch
51 512060448 Rubber Mount
52 512060667 Throttle Cable
53 293550004 Dielectric Grease, 150 g
54 414274500 Circlip
55 409901700 Tubing 9 mm
56 512060313 Protector
57 512059969 Upper Housing
58 512059537 Lower Housing
60 515175232 Male Terminal
61 732601143 Flanged Screw
63 710000568 Male terminal housing
64 512061126 Ignition Cable This part replaces 512060094.
65 710000992 Clip
66 250000253 Flanged Hex. Screw M6 X 30
67 293100003 Nut M6
68 512060888 Support This part replaces 512060696.
69 241151640 Hex. Flanged Screw K50 X 16
70 512060756 Calibrated Module 800 E-TEC This part replaces 512060708.
71 512060858 Calibrated Module Support This part replaces 512060297.
72 250200040 Flat Washer
73 250000297 Truss Head Torx Screw K50 X 20
74 415080100 Line
75 414814100 Male Connector
76 415131139 Spark Plug NGK PFR7AB This part replaces 415129484.
77 293550004 Dielectric Grease, 150 g
79 512060339 NOISE SHIELD - Call your local BRP dealership
80 512060343 Interior Noise Foam
81 512060344 Upper Exterior Noise Foam
82 512060362 LOWER EXTERIOR NOISE FOAM - Call your local BRP dealership
83 512060574 Heat Shield
84 512060575 Heat Shield
85 512060725 Manifold Ass'y
86 512060692 Manifold
87 415080200 HOSE, POLYURETHANE - Call your local BRP dealership
88 415080200 HOSE, POLYURETHANE - Call your local BRP dealership
89 293650043 Clip
90 270600005 Solenoid Valve This part replaces 512060774.
91 270000374 Hose 4.3 mm
92 409901700 Tubing 9 mm
93 293750001 Tie-Rap 94 mm
94 293710068 T-Fitting
95 270000374 Hose 4.3 mm
96 270000374 Hose 4.3 mm
97 512060762 HOSE SUPPORT - Call your local BRP dealership
98 415079900 Tubing 10 mm
99 512060806 SPRING - Call your local BRP dealership
100 512060807 SPRING - Call your local BRP dealership
101 512060822 Support This part replaces 512060693.
102 512060695 LH Formed Hose
103 512060694 RH Formed Hose
104 293650214 Norma Spring Clamp
105 293750001 Tie-Rap 94 mm
106 293750001 Tie-Rap 94 mm
