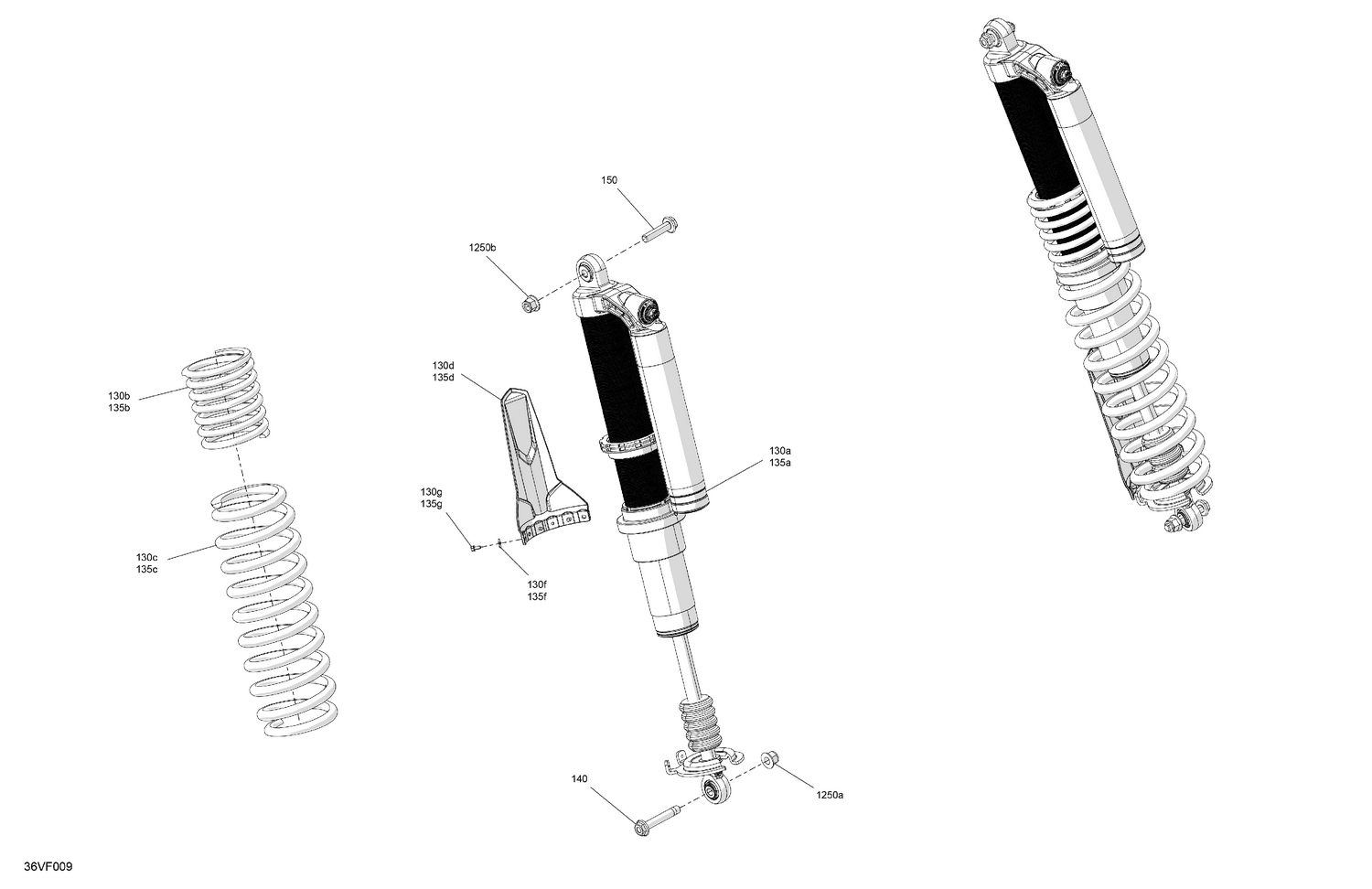

05- Suspension - Rear Shocks
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 130a | 706005921 | Rear Shock Absorber |
| 130b | 706006441 | Deep Black, Rear Compression Spring |
| 130c | 706005608 | Deep Black, Rear Compression Spring |
| 130d | 706202215 | Protector |
| 130f | 250200025 | Washer M5 |
| 130g | 210251150 | Hex Flange Screw M5 X 11 |
| 135a | 706005921 | Rear Shock Absorber |
| 135b | 706006441 | Deep Black, Rear Compression Spring |
| 135c | 706005608 | Deep Black, Rear Compression Spring |
| 135d | 706202215 | Protector |
| 135f | 250200025 | Washer M5 |
| 135g | 210251150 | Hex Flange Screw M5 X 11 |
| 140 | 250001176 | Hex. Flange Screw Din.6921 M14X2X85 |
| 150 | 250001174 | Hex. Flange Screw Din.6921 M14X2X60 |
| 1250a | 250001166 | Hex. Flange Elastic Nut M14 |
