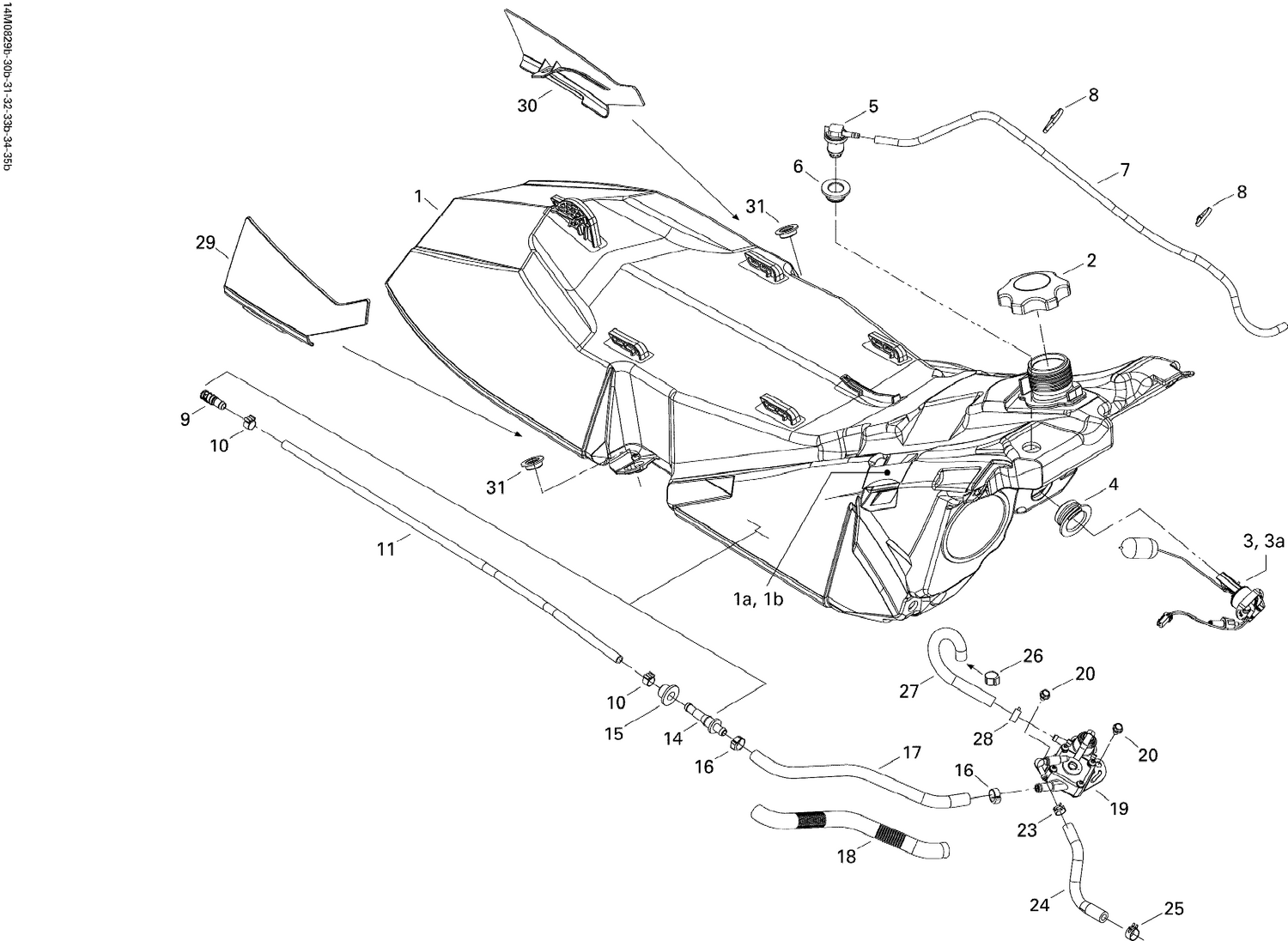

02- Fuel System 800R
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 513033516 | Fuel Tank |
| 1a | 513033471 | RH Panel Clip This part replaces 513033307. |
| 1b | 513033472 | LH Panel Clip This part replaces 513033308. |
| 2 | 513033722 | Fuel Tank Cap 91 Octane This part replaces 513033024. |
| 3 | 513033958 | Sensor Level Fuel This part replaces 513033168. |
| 3a | 710001995 | Fuse, 0.5 Ampère |
| 4 | 513033193 | GROMMET - Call your local BRP dealership |
| 5 | 513033842 | Check Valve This part replaces 513033188. |
| 6 | 513033596 | Grommet This part replaces 513033189. |
| 7 | 219704410 | Polyurethane Hose 10000Mm Long |
| 8 | 414115200 | Tie-Rap 180 mm |
| 9 | 414872100 | Fuel Filter Strainer |
| 10 | 513033010 | Norma Spring Clamp |
| 11 | 219704391 | Polyurethane Hose 1000mm Long This part replaces 513033332. |
| 14 | 414872700 | Male Connector |
| 15 | 513033435 | Grommet |
| 16 | 293650053 | Crimp Clamp |
| 17 | 513033165 | Formed Hose |
| 18 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 19 | 513033184 | Fuel Pump |
| 20 | 210261040 | Hex. Flange Screw M6 X 10 |
| 23 | 414415200 | Spring Clamp |
| 24 | 513033327 | Formed Hose |
| 25 | 513033029 | Universal Spring Clamp |
| 26 | 293650125 | Oetiker Clamp |
| 27 | 513033343 | Formed Hose |
| 28 | 414655700 | Spring Clamp |
| 29 | 513033418 | RH Cap |
| 30 | 513033419 | LH Cap |
