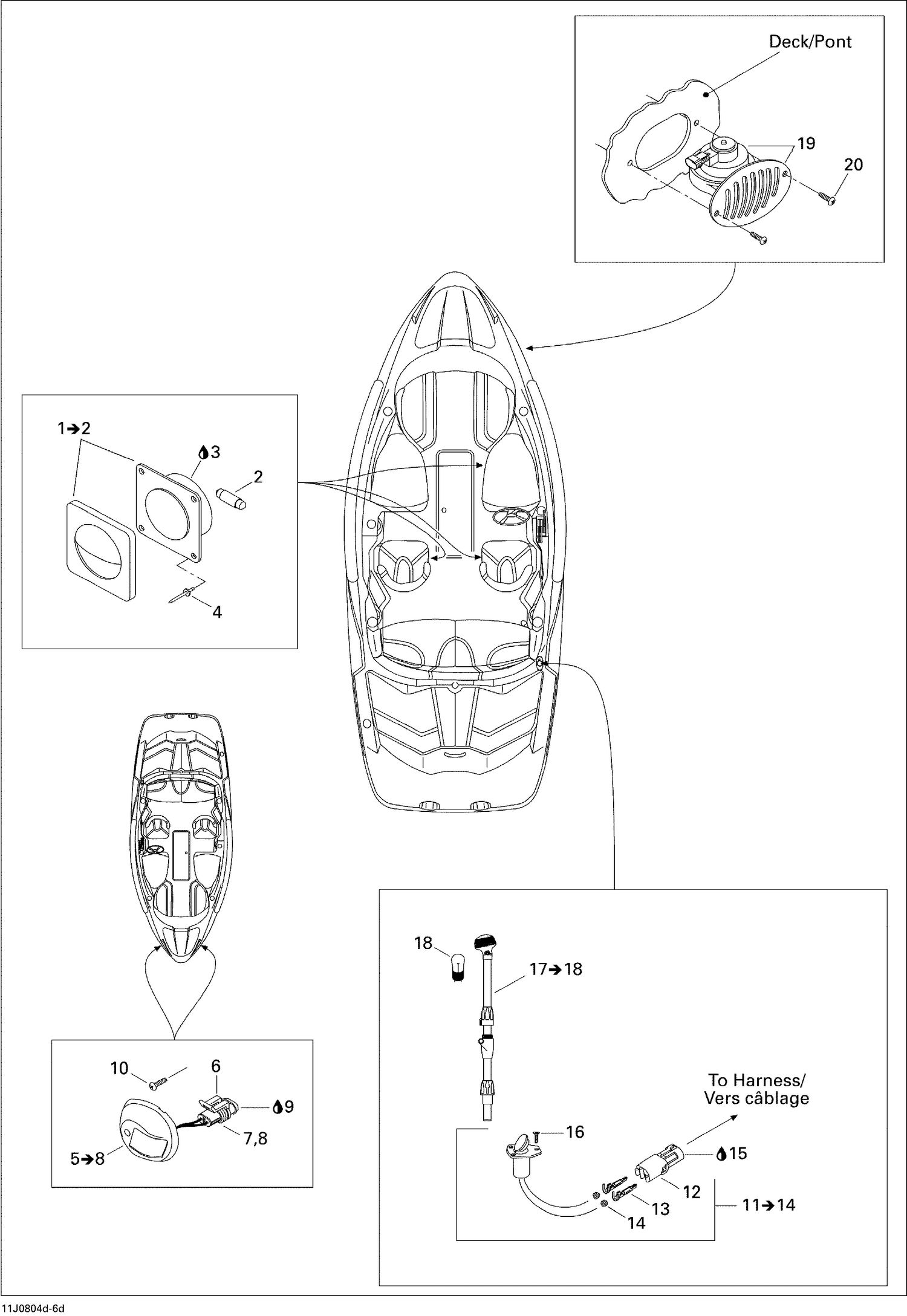

10- Electrical Accessories 4
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 204470081 | BULB - Call your local BRP dealership |
| 3 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 4 | 293150032 | RIVET_POP 1/8 X ,487 - Call your local BRP dealership |
| 6 | 409209500 | Female Housing, 2 Circuits |
| 7 | 278001014 | Female Terminal |
| 8 | 278001013 | Wire Seal |
| 9 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 10 | 209642560 | PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership |
| 12 | 278000217 | Female Housing, 2 Circuits |
| 13 | 278000222 | Male Terminal |
| 14 | 278000218 | Wire Seal |
| 15 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 16 | 209943260 | Phillips Tapping Screw M4.2 X 32 |
| 18 | 204470053 | Bulb |
| 19 | 204470801 | HORN - Call your local BRP dealership |
