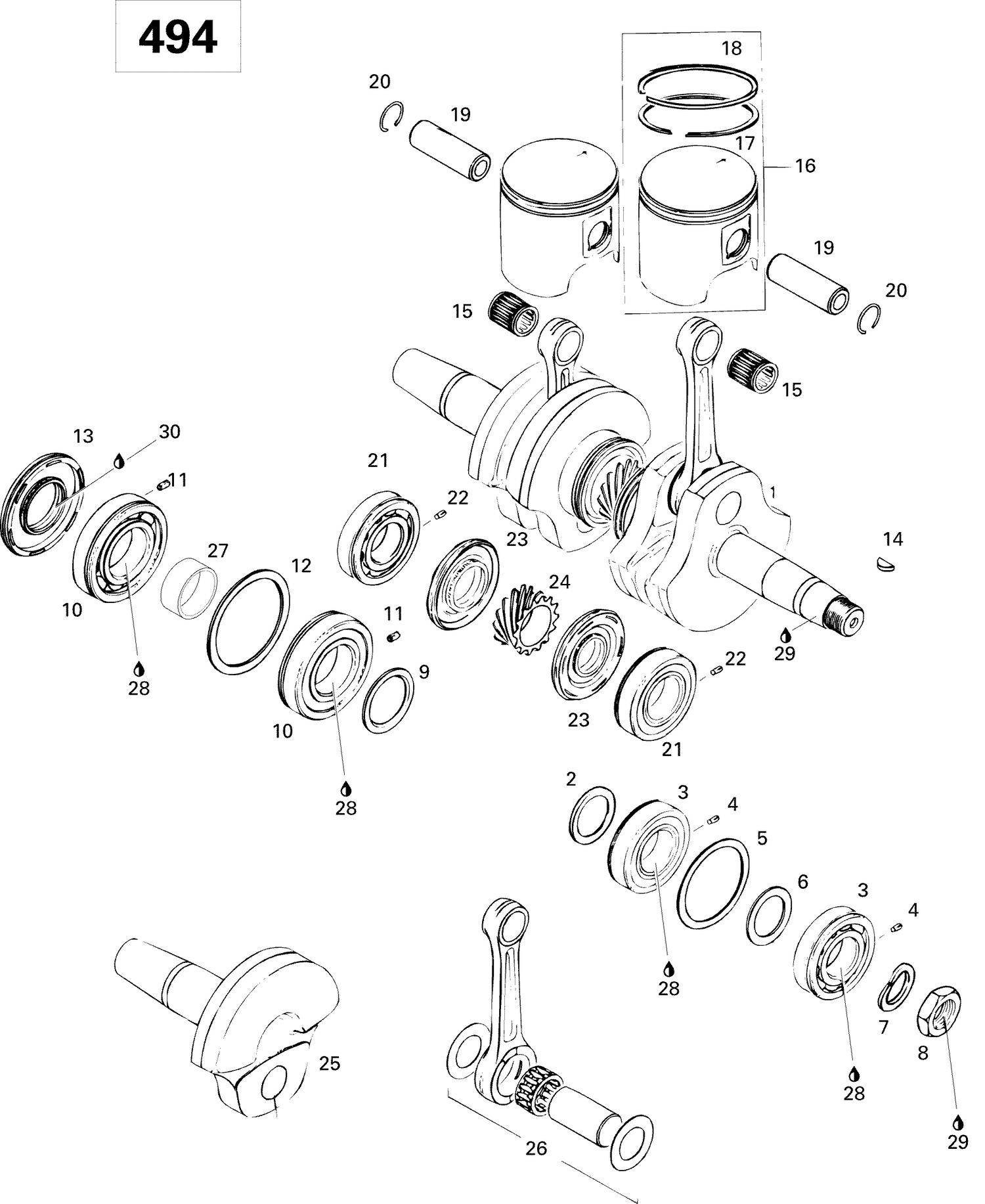

| Ref | Part Number | Description |
|---|
| 1 |
420886930 |
Crankshaft Ass'y |
| 2 |
420827445 |
DISTANCE RING - Call your local BRP dealership |
| 3 |
420832538 |
BALL BEARING - Call your local BRP dealership This part replaces 420932589. |
| 4 |
420929972 |
Dowel Pin |
| 5 |
420427684 |
ADJUSTMENT WASHER - Call your local BRP dealership |
| 6 |
420827050 |
RETAINING DISK - Call your local BRP dealership |
| 7 |
420945759 |
Lock Washer, 22 mm |
| 8 |
420842239 |
Hex. Nut, M22 X 1.5 This part replaces 420842230. |
| 9 |
420827760 |
DISTANCE RING - Call your local BRP dealership |
| 11 |
420929972 |
Dowel Pin |
| 12 |
420927710 |
Retaining Disk |
| 13 |
420831952 |
Oil Seal This part replaces 420831950. |
| 14 |
420246015 |
Woodruff Key |
| 15 |
420832430 |
Needle Bearing |
| 17 |
420915985 |
Rectangular Ring 69.5 mm |
| 17 |
420915986 |
OVERSIZE RECTANGULAR RING 69.75 MM - Call your local BRP dealership |
| 18 |
420815045 |
Semi-trapez Ring 69.5 mm |
| 18 |
420815046 |
Oversize Semi-trapez Ring 69.75 mm |
| 19 |
420916185 |
PISTON PIN - Call your local BRP dealership |
| 20 |
420945735 |
Piston Circlip |
| 22 |
420929972 |
Dowel Pin |
| 23 |
420831990 |
Oil Seal |
| 24 |
420935748 |
Central Gear 14 Teeth |
| 25 |
420818660 |
Crankshaft (PTO side) |
| 26 |
420886955 |
Crankshaft Repair Kit (PTO side) |
| 26 |
420886956 |
CRANKSHAFT REPAIR KIT (MAG SIDE) - Call your local BRP dealership |
| 27 |
420847684 |
Distance Sleeve |
| 28 |
219704461 |
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 29 |
293800060 |
Loctite 243, 10 ml This part replaces 413703000. |
