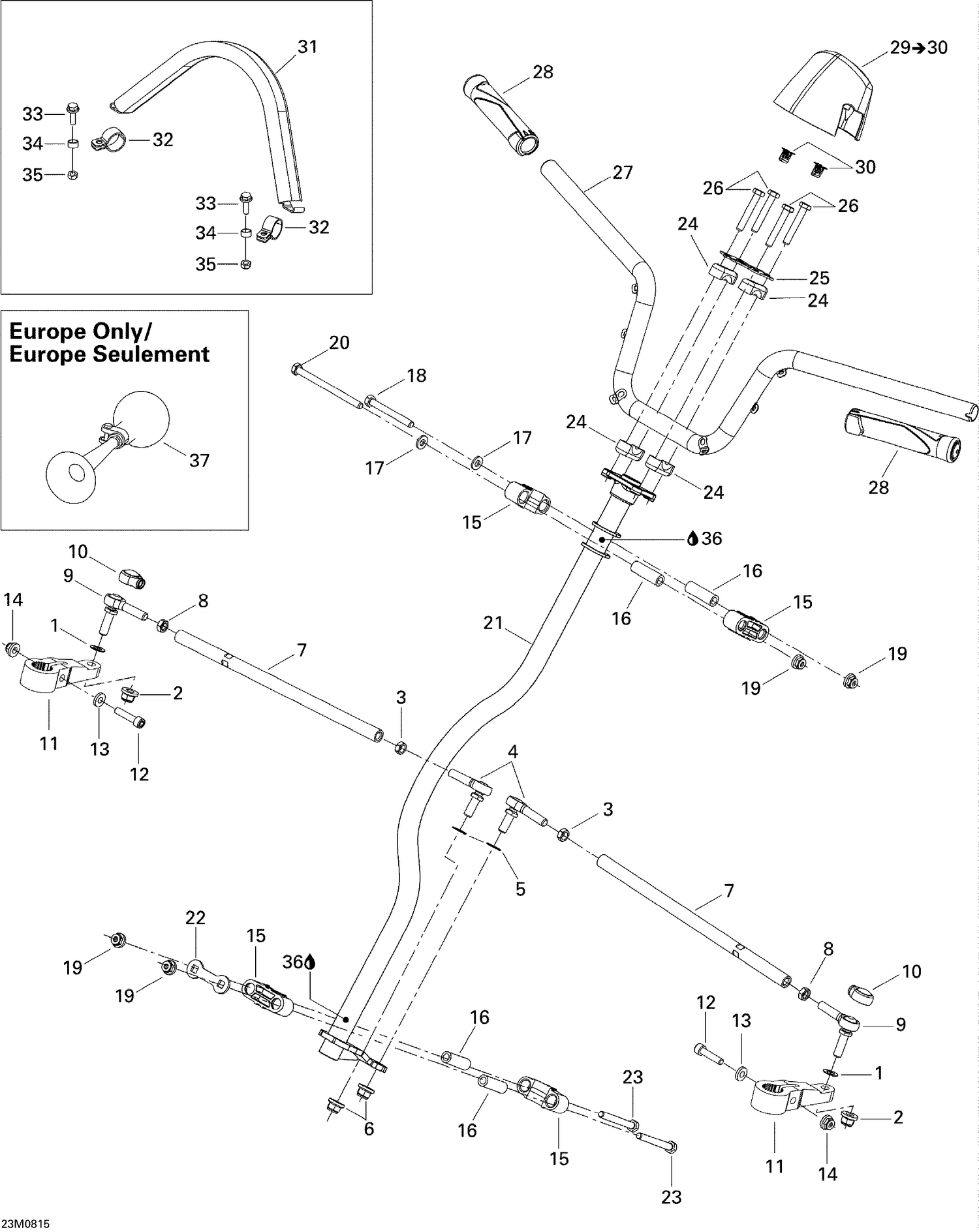

07- Steering
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 503175800 | Washer |
| 2 | 250100165 | Hex. Flange Elastic Nut M10 This part replaces 250100088. |
| 3 | 250100016 | LH Threaded Hex. Jam Nut M10 |
| 4 | 506151845 | LH JOINT BALL - Call your local BRP dealership |
| 5 | 503175800 | Washer |
| 6 | 250100165 | Hex. Flange Elastic Nut M10 This part replaces 250100088. |
| 7 | 506151884 | TIE ROD - Call your local BRP dealership |
| 8 | 732610010 | RH Threaded Hex. Jam Nut M10 |
| 9 | 506152212 | BALL JOINT - Call your local BRP dealership |
| 10 | 506151650 | PROTECTION CAP - Call your local BRP dealership |
| 11 | 506152030 | Swivel Arm |
| 12 | 207084544 | Hex. Screw M8 X 45 |
| 13 | 234081410 | Flat Washer 8 mm |
| 14 | 233281414 | Hex. Flange Elastic Nut M8 |
| 15 | 506150400 | Housing Half |
| 16 | 506150500 | Housing Bushing |
| 17 | 503189157 | Washer |
| 18 | 207087044 | Hex. Screw M8 X 70 |
| 19 | 233281414 | Hex. Flange Elastic Nut M8 |
| 20 | 230081044 | HEX. SCREW M8 X 110 - Call your local BRP dealership |
| 21 | 506152009 | STEERING MAIN TUBE - Call your local BRP dealership |
| 22 | 506150600 | Stopper Plate |
| 23 | 207087044 | Hex. Screw M8 X 70 |
| 24 | 709400919 | Steering Support This part replaces 506151622. |
| 25 | 506151547 | REINFORCEMENT - Call your local BRP dealership |
| 26 | 250000082 | HEX. SCREW WITH NYLON M8 X 50 - Call your local BRP dealership |
| 27 | 506151986 | HANDLE BAR - Call your local BRP dealership |
| 28 | 506152238 | Handle Grip |
| 30 | 517302785 | Edge Clip |
| 31 | 506152115 | Strap Ass'y |
| 32 | 506152536 | Black Support Plate This part replaces 506151792. |
| 33 | 207662084 | Hex. Flange Screw M6 X 20 |
| 34 | 506152156 | Bushing |
| 35 | 233261494 | Hex. Flange Elastic Nut M6 |
| 36 | 219700417 | SYNTHETIC GREASE, 400 G - Call your local BRP dealership |
