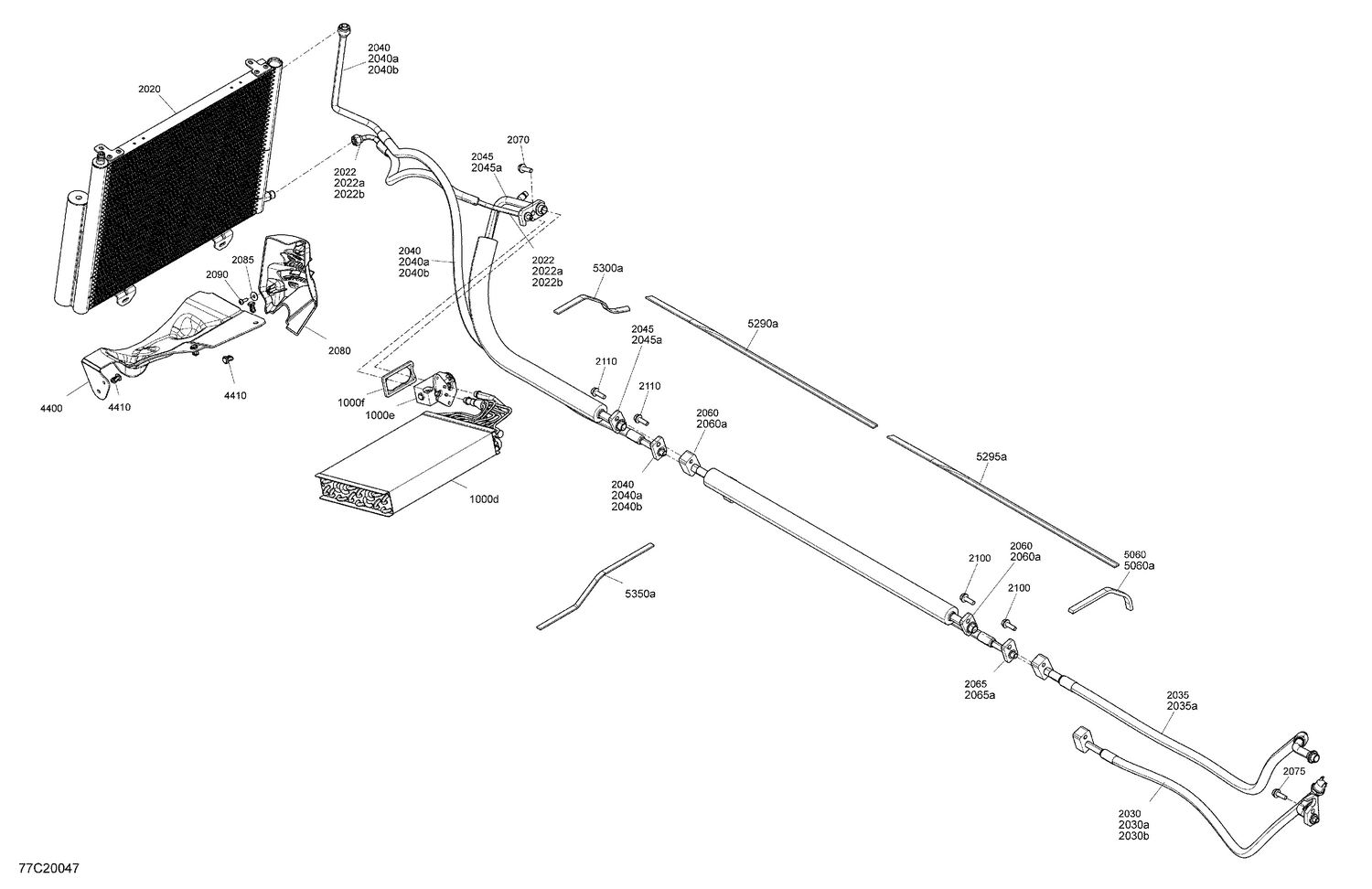

09- Cab - Cooling Air Conditioner - MAX - Cab LTD
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 1000e | 705800458 | Expansion Valve |
| 1000f | 705800519 | Gasket |
| 2020 | 520001931 | Condenser |
| 2022a | 715900665 | Sealing Washer #6 |
| 2022b | 715900687 | O-Ring This part replaces 715900668. |
| 2030a | 715900666 | Sealing Washer #8 |
| 2030b | 715900673 | Pressure Switch |
| 2035a | 715900667 | Sealing Washer #12 |
| 2040a | 715900669 | O-Ring |
| 2040b | 715900666 | Sealing Washer #8 |
| 2045a | 715900667 | Sealing Washer #12 |
| 2060a | 715900667 | Sealing Washer #12 |
| 2065a | 715900666 | Sealing Washer #8 |
| 2070 | 233281416 | Hex. Elastic Flange Nut M8 |
| 2075 | 207682534 | Hex. Flange Screw M8 X 25 |
| 2080 | 705800779 | Hose Support This part replaces 705800588. |
| 2085 | 234062670 | Stainless Steel Flat Washer |
| 2090 | 250000720 | Torx Screw K50 X 16 |
| 2100 | 207682534 | Hex. Flange Screw M8 X 25 |
| 2110 | 207682534 | Hex. Flange Screw M8 X 25 |
| 4400 | 705800489 | Front Air Deflector |
| 4410 | 293150230 | Tuflok Plastic Rivet |
| 5060a | 219704364 | Neoprene Seal (1PAC=3M) |
| 5290a | 219704476 | Gasket, Neoprene 2000Mm Long This part replaces 219704372. |
| 5295a | 219704476 | Gasket, Neoprene 2000Mm Long This part replaces 219704372. |
| 5300a | 219704476 | Gasket, Neoprene 2000Mm Long This part replaces 219704372. |
