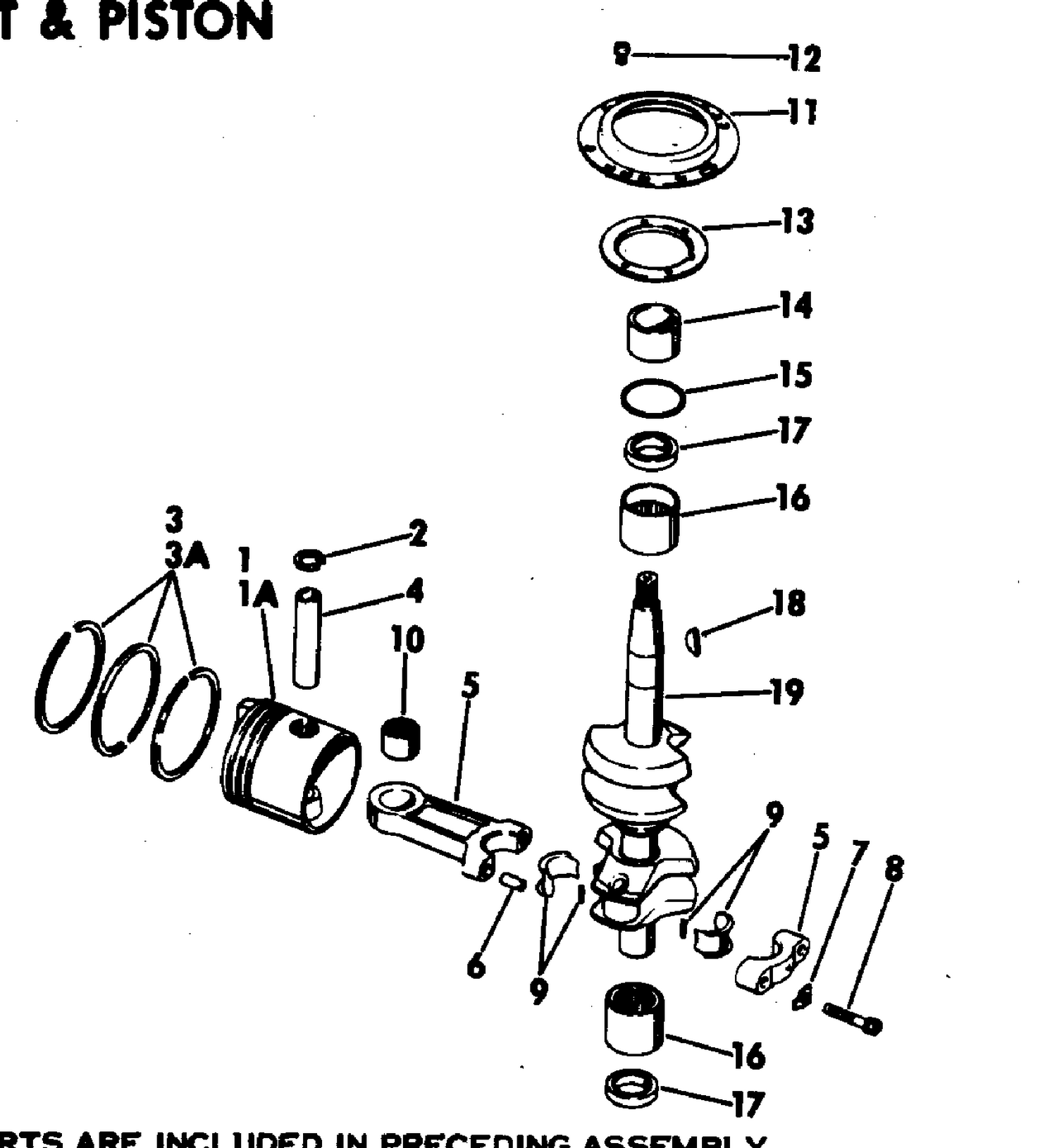

| Ref | Part Number | Description |
|---|
| 1 |
0385865 |
PISTON ASSY., Std This part replaces 0379134. |
| 1A |
0384072 |
PISTON AND DOWEL, .030 o.s. |
| 2 |
0302577 |
RETAINING RING |
| 3 |
0379360 |
PISTON RING SET, Standard |
| 3A |
0384073 |
PISTON RING SET, .030 o.s. |
| 4 |
0309573 |
WRIST PIN |
| 5 |
0380017 |
CONNECTING ROD ASSY |
| 6 |
0551748 |
DOWEL, Cap screw |
| 7 |
0309577 |
LOCK PLATE |
| 8 |
0309576 |
SCREW, Connecting rod |
| 9 |
0382835 |
LINERS & NEEDLES, Rod & brg |
| 10 |
0379135 |
BEARING, Wrist pin |
| 11 |
0303278 |
SUPORT, Armature plate |
| 12 |
0332070 |
SCREW, Retaining plate This part replaces 0304442. |
| 13 |
0303277 |
RETAINING RING |
| 14 |
0510584 |
CAM, Magneto |
| 16 |
0379210 |
NEEDLE BEARING ASSY |
| 17 |
0309733 |
SEAL |
| 18 |
0120395 |
KEY |
