| Ref | Part Number | Description |
|---|
| 1 |
0383325 |
CABLE ASSY., Motor |
| 10 |
0312694 |
DASH PANEL |
| 11 |
0312691 |
SCREW, Cash pannel |
| 12 |
0205870 |
DECAL, Dash panel |
| 13 |
0386947 |
IGNITION SWITCH This part replaces 0383465. |
| 17 |
KEY, |
Ignition |
| 18 |
0381629 |
INDICATING LIGHT, Temp |
| 21 |
0975257 |
SWITCH ASSEMBLLY |
| 23 |
0900696 |
WASHER |
| 26 |
0383351 |
LEAD ASSEBMBLY,Ignition to choke switch |
| 29 |
0307911 |
SCREW |
| 31 |
0383329 |
CABLE ASSY., Instrument |
| 38 |
0385407 |
BATTERY TERMINAL KIT This part replaces 0277708. |
| 40 |
0385407 |
BATTERY TERMINAL KIT This part replaces 0277709. |
| 0279060 |
0279060 |

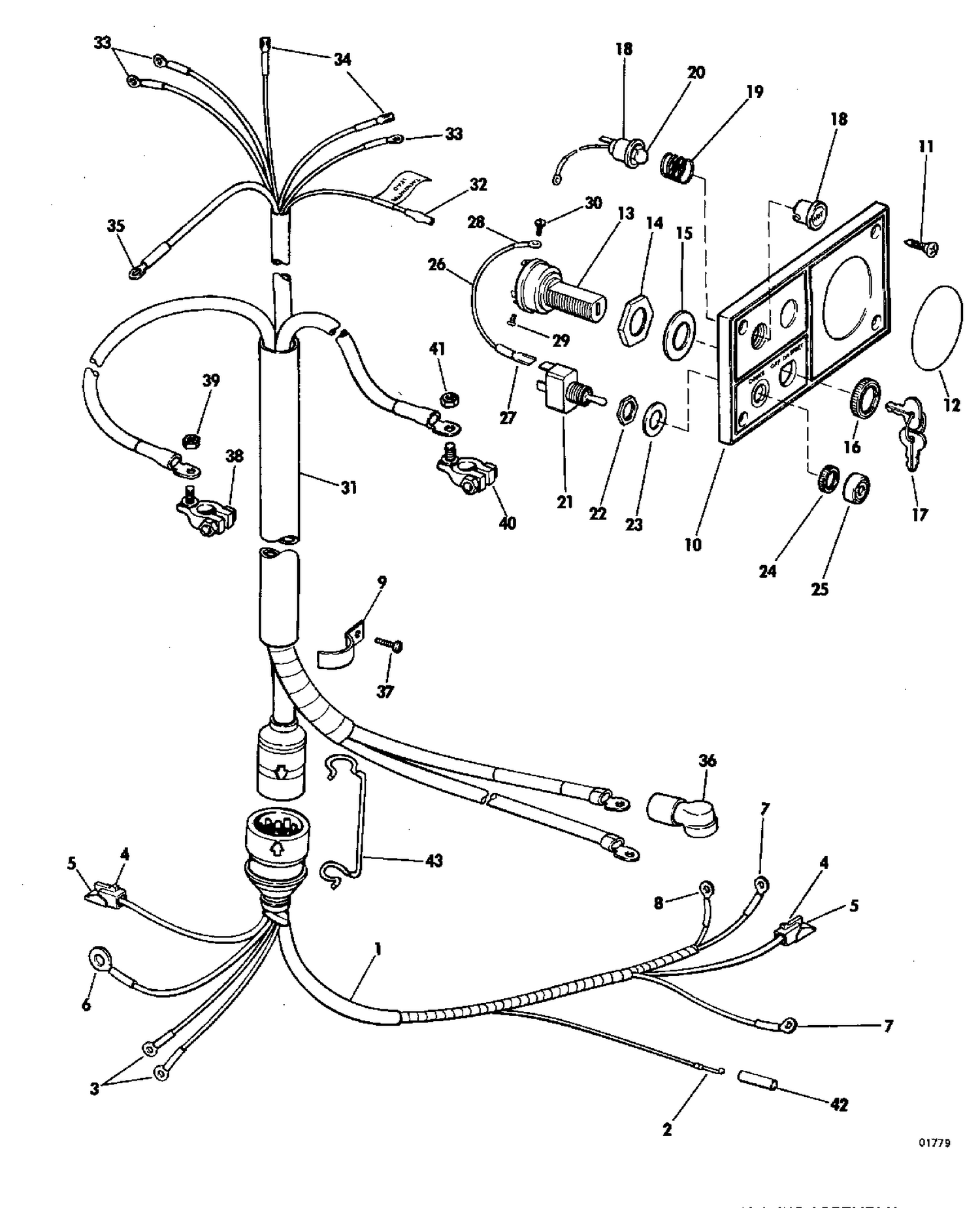

INSTRUMENTS & CABLE ASSY. |
