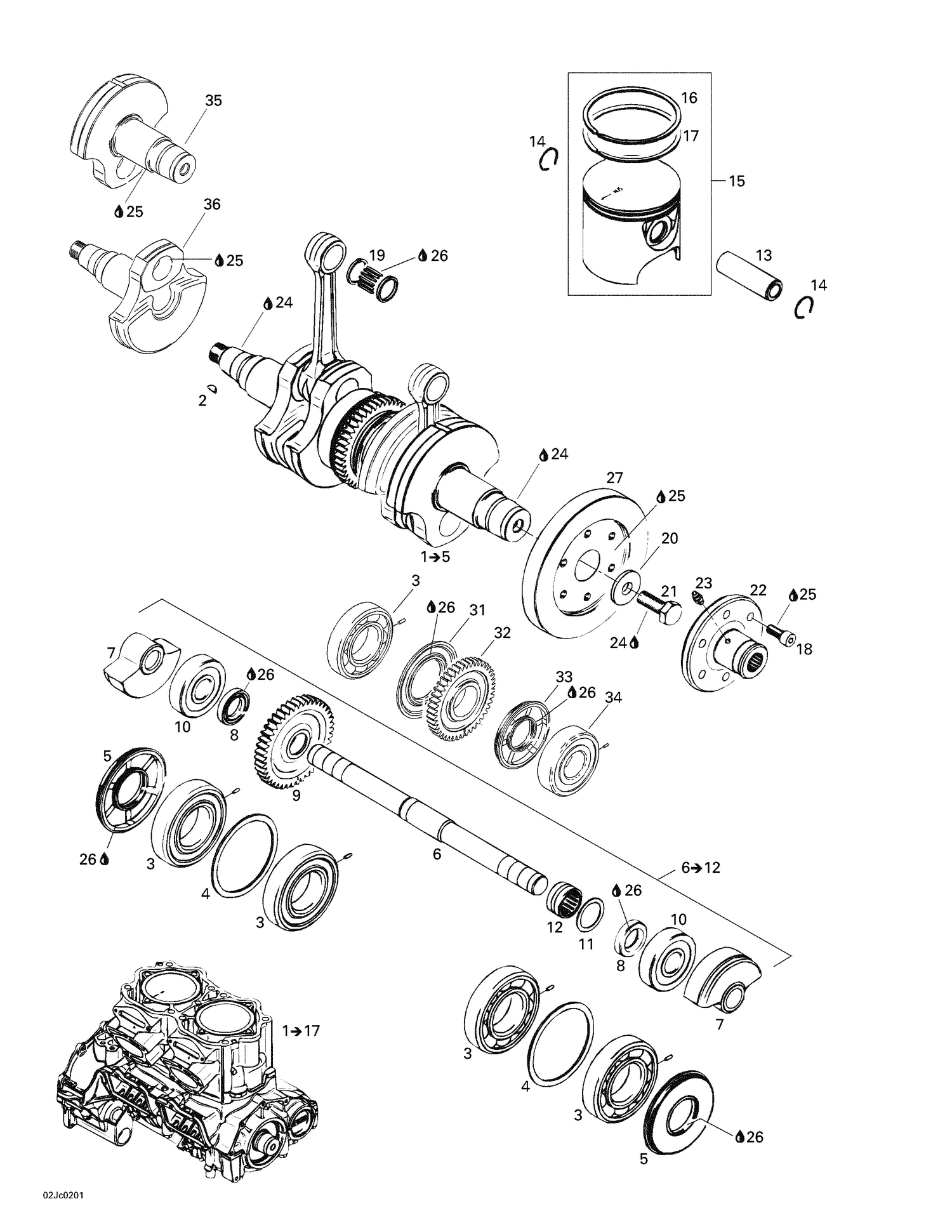

| Ref | Part Number | Description |
|---|
| 1 |
421000562 |
REBUILD-CRANKCASE-CYLINDER PACKAGE 947 - Call your local BRP dealership |
| 2 |
420246055 |
Woodruff Key |
| 3 |
420432271 |
Bearing_Ball - Call your local BRP dealership |
| 4 |
420926190 |
Washer |
| 5 |
290931731 |
OIL SEAL - Call your local BRP dealership |
| 6 |
290837380 |
Balance Shaft |
| 7 |
290818950 |
Mass Balance |
| 8 |
290930395 |
Seal Oil |
| 9 |
290834340 |
Gear Balance, 43 Teeth |
| 10 |
290932098 |
BALL BEARING <<6304>> - Call your local BRP dealership |
| 11 |
420927192 |
Washer |
| 12 |
290232555 |
Needle Bearing |
| 13 |
290916398 |
Piston Pin |
| 14 |
290845465 |
Circlip |
| 16 |
290815192 |
Semi-Trapez Ring 88.00 mm (Grey) |
| 17 |
290815175 |
Semi-Trapez Ring 88.00 mm (Silver) |
| 18 |
205082060 |
SOCKET SCREW M8 X 20 - Call your local BRP dealership |
| 19 |
420832553 |
Bearing_Needle This part replaces 290832552. |
| 20 |
290827782 |
Washer |
| 21 |
290640120 |
Hex. Screw M12 x 30 |
| 23 |
290499113 |
GREASE FITTING - Call your local BRP dealership |
| 24 |
293800060 |
Loctite 243, 10 ml |
| 25 |
219703000 |
Sealant Loctite 648 This part replaces 413711400. |
| 26 |
413707000 |
Dow Corning 111, 150 g |
| 27 |
290958082 |
Coupling (Silver) |
| 29 |
290889150 |
Engine Gasket Set (Not Shown) |
| 30 |
290889155 |
CYLINDER GASKET SET (NOT SHOWN) - Call your local BRP dealership |
| 31 |
420931758 |
OIL SEAL - Call your local BRP dealership This part replaces 290931758. |
| 32 |
290834319 |
Crankshaft Gear 43T |
| 33 |
290931711 |
OIL SEAL - Call your local BRP dealership |
| 34 |
290932579 |
Ball Bearing <<6306>> |
| 35 |
420818920 |
CRANKSHAFT, MAG 947 - Call your local BRP dealership This part replaces 290818920. |
| 290815176 |
Semi-Trapez |
Ring 88.25 mm (Silver) 290815176 |
| 290815193 |
Semi-Trapez |
Ring 88.25 mm (Grey) 290815193 |
| 290888578 |
Piston |
Oversize, 2 Rings, 88.16 mm 290888578 |
