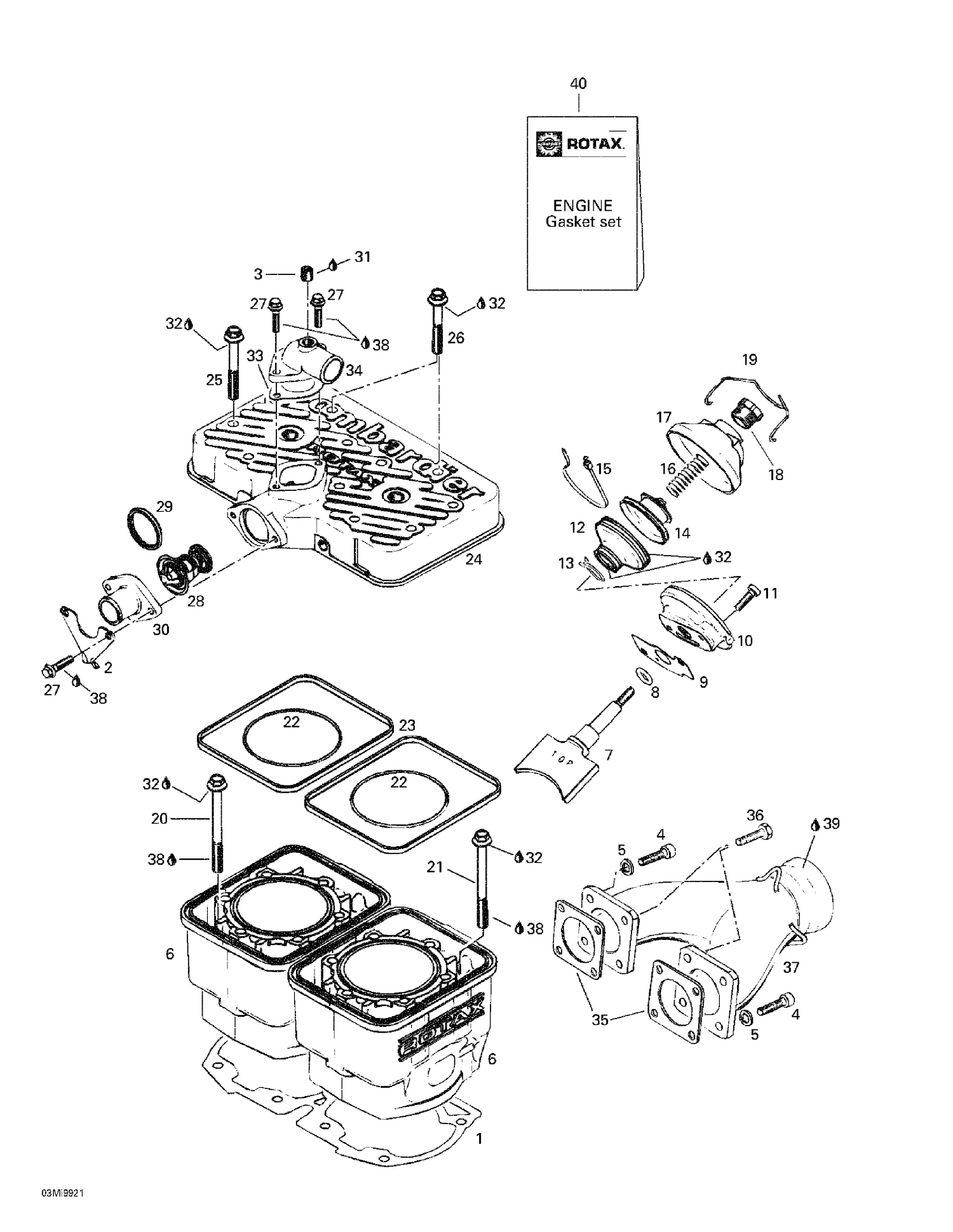

01- Cylinder, Exhaust Manifold

01- Cylinder, Exhaust Manifold

Parts (39)

RefPart NumberDescription
1 420931234 GASKET-DOUBLE 0.8 MM - Call your local BRP dealership
2 420851347 Plate (Intake Silencer)
3 420240480 PLUG SCREW - Call your local BRP dealership
4 205062544 Socket Head Screw M6 X 25 This part replaces 222962565.
5 234161471 Lock Washer M6, Black This part replaces 224761110.
6 420923700 Cylinder With Sleeve
7 420854320 Exhaust Valve
8 420430110 O-Ring
9 420230256 GASKET - Call your local BRP dealership
10 420253275 Valve Rod Housing
11 420241237 Socket Head Screw M6 x 16 This part replaces 420241236.
12 420260721 Bellow
13 420838190 SPRING CLAMP - Call your local BRP dealership
14 420854449 Exhaust Valve This part replaces 420854447.
15 420251920 Clamp 77 mm
16 420239941 SPRING - Call your local BRP dealership
17 420911552 Valve Cover This part replaces 420911551.
18 420241221 Adjuster Screw This part replaces 420241220.
19 420838083 SPRING CLIP - Call your local BRP dealership This part replaces 420838082.
20 420940126 Hex. Screw M8 x 100
21 420941518 Screw M8x105 This part replaces 420941511.
22 420931220 O-RING - Call your local BRP dealership
23 420850040 RUBBER RING - Call your local BRP dealership
24 420913545 CYLINDER HEAD (VIOLET) - Call your local BRP dealership
25 420841307 Hex. Collar Screw M8 X 65 This part replaces 420841306.
26 420941627 Hex. Screw M8 X 56.5 This part replaces 420941621.
27 420441311 Hex.Screw M6 X 20 This part replaces 420940566.
28 420922519 Thermostat This part replaces 414834100.
29 420931270 SEALING RING - Call your local BRP dealership
30 420922025 BENT OUTLET SOCKET - Call your local BRP dealership
31 219704462 ADHESIVE LOCTITE 515 50ML - Call your local BRP dealership
32 413707000 Dow Corning 111, 150 g
33 420850339 Gasket This part replaces 420850336.
34 420922062 BENT OUTLET SOCKET - Call your local BRP dealership
35 420850552 Gasket
36 732601230 Hex. Screw M6
37 420973984 Exhaust Manifold
38 293800060 Loctite 243, 10 ml This part replaces 293800015.
39 293800090 Sealant, Loctite, 80 ml This part replaces 413710300.
