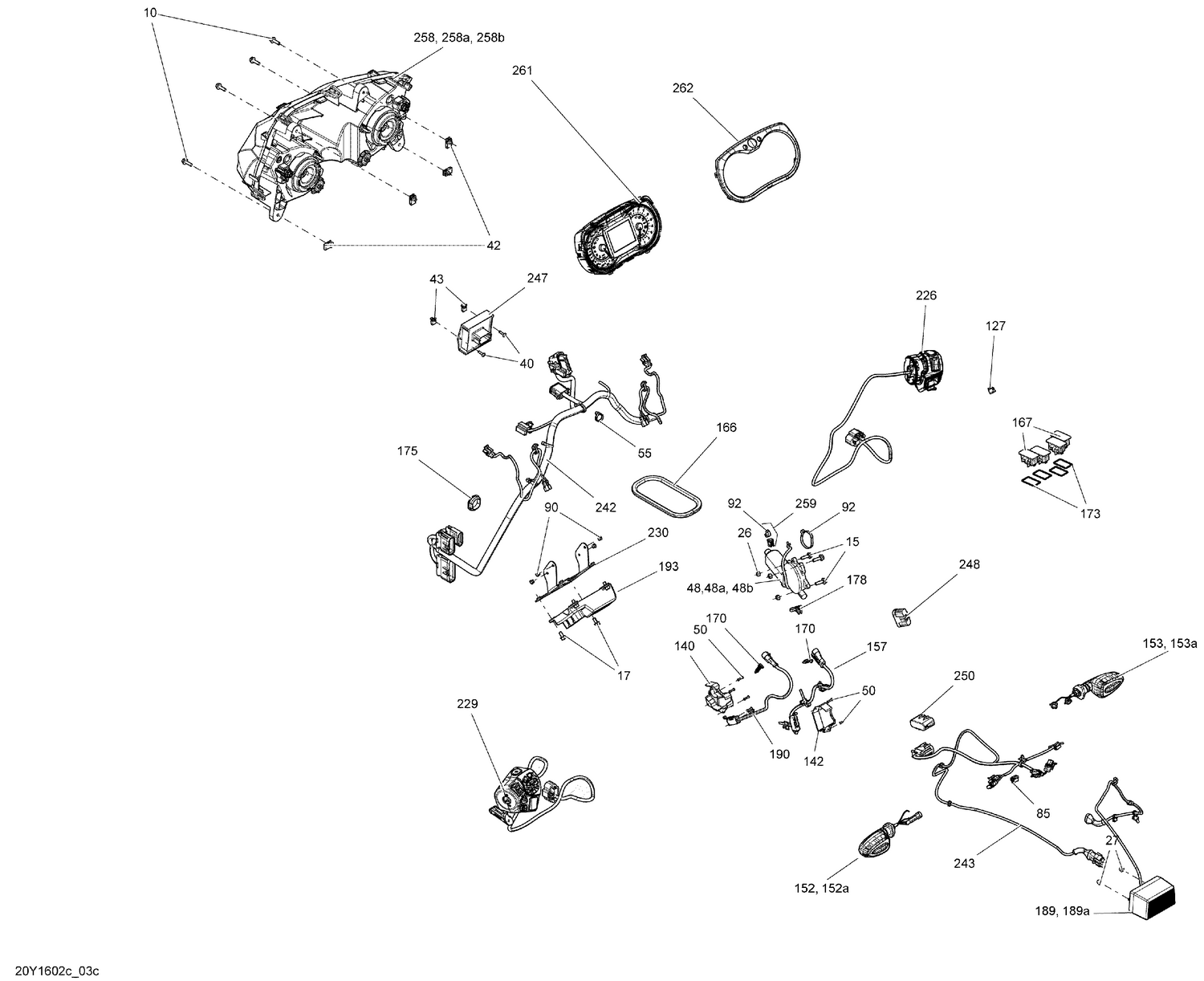

10- Electrical System - Accessories
Parts (50)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip |
| 15 | 207662054 | Hex. Flange Screw M6 X 20 |
| 16 | 210261050 | Hex. Forming Screw M6 X 10 |
| 17 | 210261250 | Hex. Flange Screw M6 X 12 |
| 26 | 232561434 | Elastic Stop Nut M6 |
| 27 | 233251494 | Elastic Flange Nut M5 |
| 40 | 250000750 | Torx Screw M4 X 16 |
| 42 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 43 | 250100143 | Extruded Panel Nut M4 X 0.7 |
| 46 | 270000141 | Clip |
| 48 | 710007256 | Actuator Motor This part replaces 278003071. |
| 48a | 278000231 | Insulation Sheath |
| 48b | 278000230 | Male Terminal |
| 50 | 293150150 | Pop Rivet |
| 55 | 293750002 | Tie Wrap 142 mm |
| 85 | 293750058 | Tie Rap 2 Pièces pour Bordure |
| 90 | 390402400 | Pop Rivet 3/16" |
| 92 | 414115200 | Tie-Rap 180 mm |
| 127 | 414227300 | Clip |
| 140 | 705601344 | Deflector |
| 142 | 705601402 | LPS Deflector |
| 152 | 710001290 | LH Rear Turn Signal Ass'y |
| 152a | 219800039 | Bulb 12V/10W, Amber |
| 153 | 710001337 | RH Rear Turn Signal Ass'y |
| 153a | 219800039 | Bulb 12V/10W, Amber |
| 157 | 710001379 | Brake Pressure Switch Ass'y |
| 166 | 219704354 | Trim 1000Mm Long |
| 167 | 710007173 | Plug Carling This part replaces 710001999. |
| 170 | 710002033 | Connector Holder |
| 173 | 710002288 | PANEL SEAL - Call your local BRP dealership |
| 175 | 710002858 | Rubber Plug |
| 178 | 710002896 | Tie-Rap Clip |
| 189 | 710003348 | License Plate Light |
| 189a | 415129261 | Bulb 12V 10W |
| 190 | 710003412 | Brake Light Switch Ass'y |
| 193 | 710003750 | CALIBRATED MODULE - Call your local BRP dealership |
| 226 | 710004583 | RH Switch Housing |
| 229 | 710004586 | LH Switch Housing |
| 230 | 710004629 | TCM SUPPORT - Call your local BRP dealership |
| 242 | 710004754 | WIRING HARNESS_CONSOLE - Call your local BRP dealership |
| 243 | 710004756 | WIRING HARNESS REAR - Call your local BRP dealership |
| 247 | 710005887 | PBM Module Ass'y This part replaces 710004883. |
| 248 | 710004899 | CONNECTOR PLUG - Call your local BRP dealership |
| 250 | 710004905 | CONNECTOR PLUG - Call your local BRP dealership |
| 258 | 710004953 | Headlamp |
| 258a | 219800280 | Rubber Cap Protector |
| 258b | 515176274 | Halogen Bulb, 60/55 W, 12 V ( H4 ) |
| 259 | 710005037 | Clip Tie-Rap |
| 261 | 710004722 | Speed-Prog |
| 262 | 415129349 | Lens |
