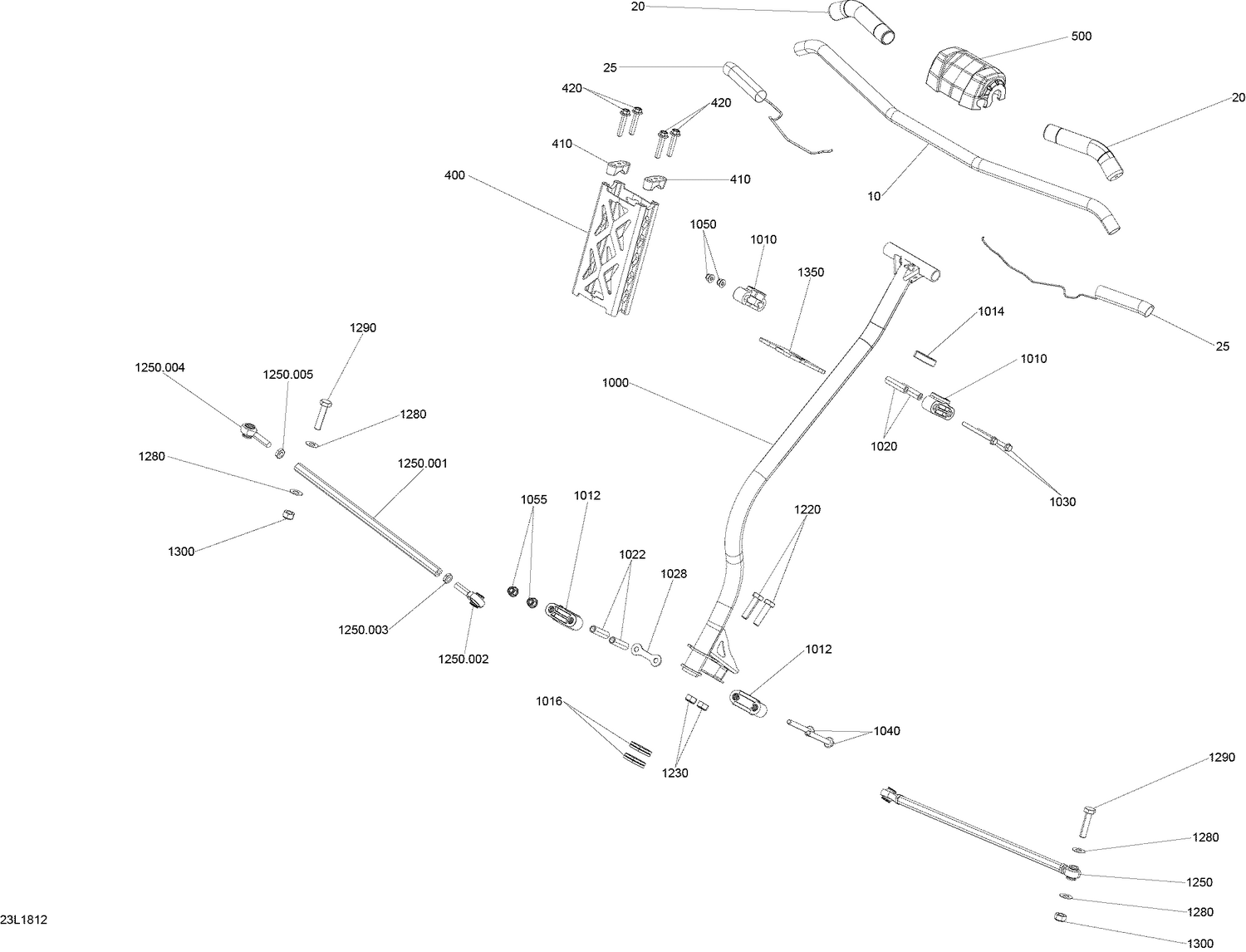

07- Steering Tundra - 550F
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 506152722 | Handle Bar |
| 20 | 506152483 | Grip |
| 25 | 506152467 | Heating Element |
| 400 | 860200821 | Extension Kit ( 205mm ) This part replaces 860200269. |
| 410 | 506152751 | Steering Support This part replaces 506152750. |
| 420 | 250000285 | Hex. Flange Screw M8 x 40 |
| 500 | 506152541 | Deep Black, Steering Pad |
| 1000 | 506152963 | Steering Column |
| 1010 | 506152508 | Upper Half-Housing |
| 1012 | 506152217 | Lower Half-Housing |
| 1014 | 506152509 | Upper Anti-Vibration Gasket |
| 1016 | 506152518 | Lower Vibration Ring |
| 1020 | 506152297 | Housing Bushing |
| 1022 | 506152388 | Lower Housing Bushing |
| 1028 | 506152389 | Stopper Plate |
| 1030 | 207667056 | Hex. Flange Screw M6 X 70 This part replaces 207667086. |
| 1040 | 207686544 | Hex. Flange Screw, M8 X 65 |
| 1050 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 1055 | 233281414 | Hex. Flange Elastic Nut M8 |
| 1220 | 207004044 | Hex. Screw M10 X 40 |
| 1230 | 232500416 | Elastic Stop Nut M10 |
| 1280 | 506152582 | Washer |
| 1290 | 207004544 | Hex. Screw M10 X 45 |
| 1300 | 233201464 | Hex. Flange Elastic M10 x 1.5 |
