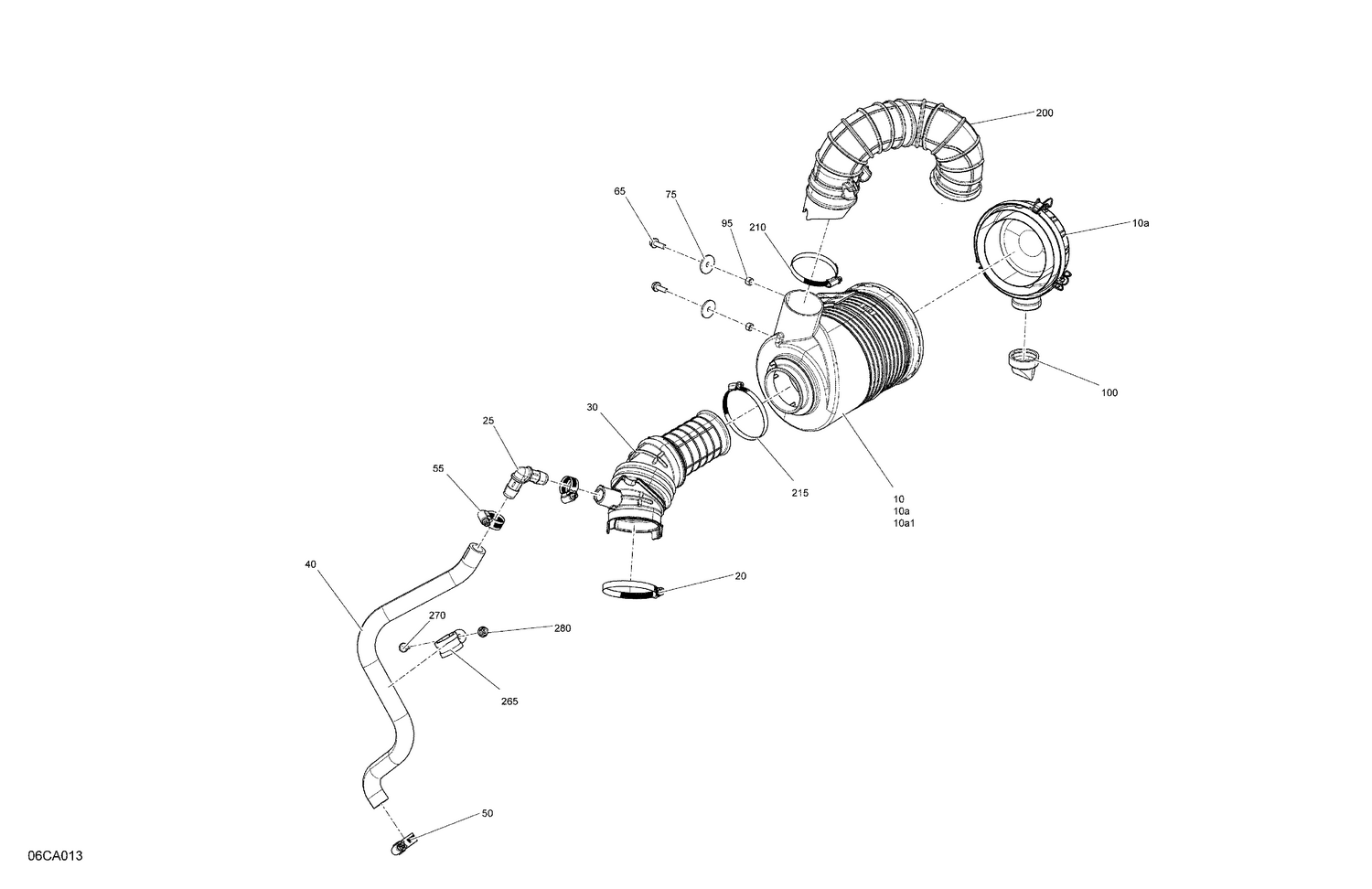

02- Engine - Air Intake
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 10a1 | 715900514 | O-Ring |
| 20 | 293650091 | Norma Clamp |
| 25 | 293710155 | Elbow Fitting 90 |
| 30 | 707800759 | Air Intake Adaptor |
| 40 | 707800716 | Blow-By Hose |
| 50 | 293650173 | Tridon Gear Clamp |
| 55 | 293650173 | Tridon Gear Clamp |
| 65 | 207682534 | Hex. Flange Screw M8 X 25 |
| 75 | 250200158 | Flat Washer M8 |
| 95 | 277000980 | Bushing |
| 100 | 715003114 | Duct Bill Valve |
| 200 | 707800752 | Air Inlet Tube |
| 210 | 293650091 | Norma Clamp |
| 215 | 293650096 | Norma Clamp |
| 265 | 709200036 | Hose Anchor |
| 270 | 207662544 | Hex. Flange Screw M6 X 25 |
