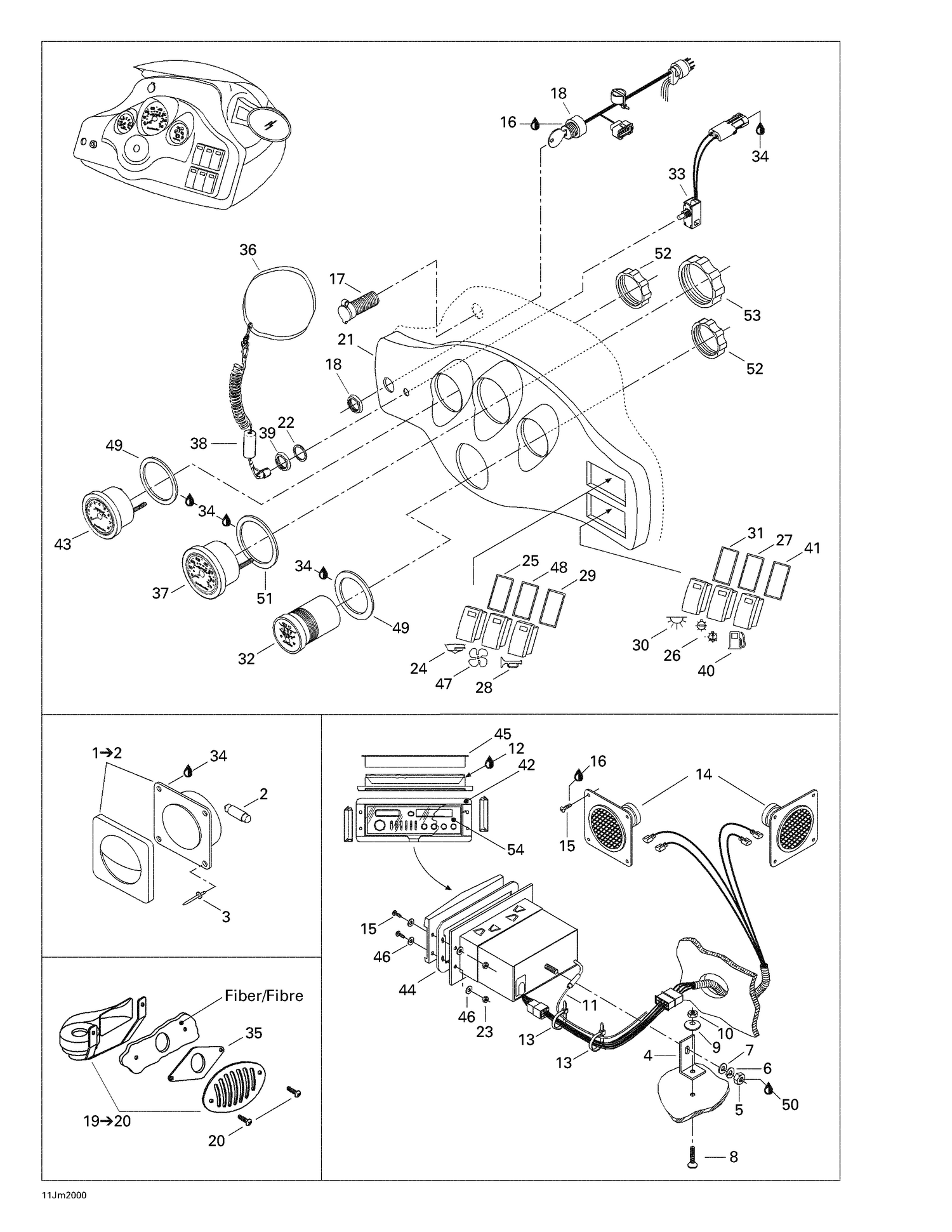

10- Electrical Accessories 1
Parts (44)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 204470081 | BULB - Call your local BRP dealership |
| 3 | 293150032 | RIVET_POP 1/8 X ,487 - Call your local BRP dealership |
| 4 | 204470385 | Radio Support |
| 5 | 232051600 | Hex. Nut M5 |
| 6 | 234151601 | Helical Lock Washer M5 |
| 7 | 234052600 | Flat Washer 5 mm, Stainless |
| 8 | 208462060 | PHILLIPS SCREW M6 X 20 - Call your local BRP dealership |
| 9 | 234062600 | Flat Washer M6, Stainless |
| 10 | 232561600 | Hex. Elastic Stop Nut M6 |
| 11 | 204470380 | Antenna |
| 13 | 293750001 | Tie Wrap 94 mm |
| 14 | 204470378 | Speaker |
| 15 | 208642560 | PHILLIPS SCREW M4 X 25 - Call your local BRP dealership |
| 16 | 219704457 | ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership |
| 17 | 710001248 | DC Outlet This part replaces 204470252. |
| 18 | 204470462 | Instrumentation Harness |
| 20 | 211000100 | SCREW-RD.HD.PH. - Call your local BRP dealership |
| 21 | 204390209 | Fascia |
| 22 | 204100027 | FLAT WASHER - Call your local BRP dealership |
| 23 | 232541600 | Elastic Stop Nut M4 |
| 25 | 204470132 | Gasket |
| 27 | 204470132 | Gasket |
| 29 | 204470132 | Gasket |
| 31 | 204470132 | Gasket |
| 32 | 204470391 | Oil/Fuel Gauge |
| 33 | 204470463 | Safety Switch |
| 34 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 35 | 293250108 | Horn Gasket |
| 36 | 204470025 | Safety Strap |
| 37 | 204470374 | Speedometer Gauge |
| 38 | 278001431 | Safety Lanyard This part replaces 204470464. |
| 39 | 278000099 | Safety Switch Nut |
| 41 | 204470132 | Gasket |
| 42 | 204470266 | Radio Cover |
| 43 | 204470466 | Tachometer Gauge |
| 44 | 204470257 | RADIO COVER GASKET - Call your local BRP dealership |
| 45 | 204470270 | Radio Splashguard |
| 46 | 234040600 | Flat Washer 4 mm |
| 48 | 204470132 | Gasket |
| 49 | 204470308 | Gasket |
| 50 | 293800060 | Loctite 243, 10 ml |
| 51 | 204470309 | Gasket |
| 52 | 204470146 | Gauge Nut |
| 53 | 204470171 | Gauge Nut |
