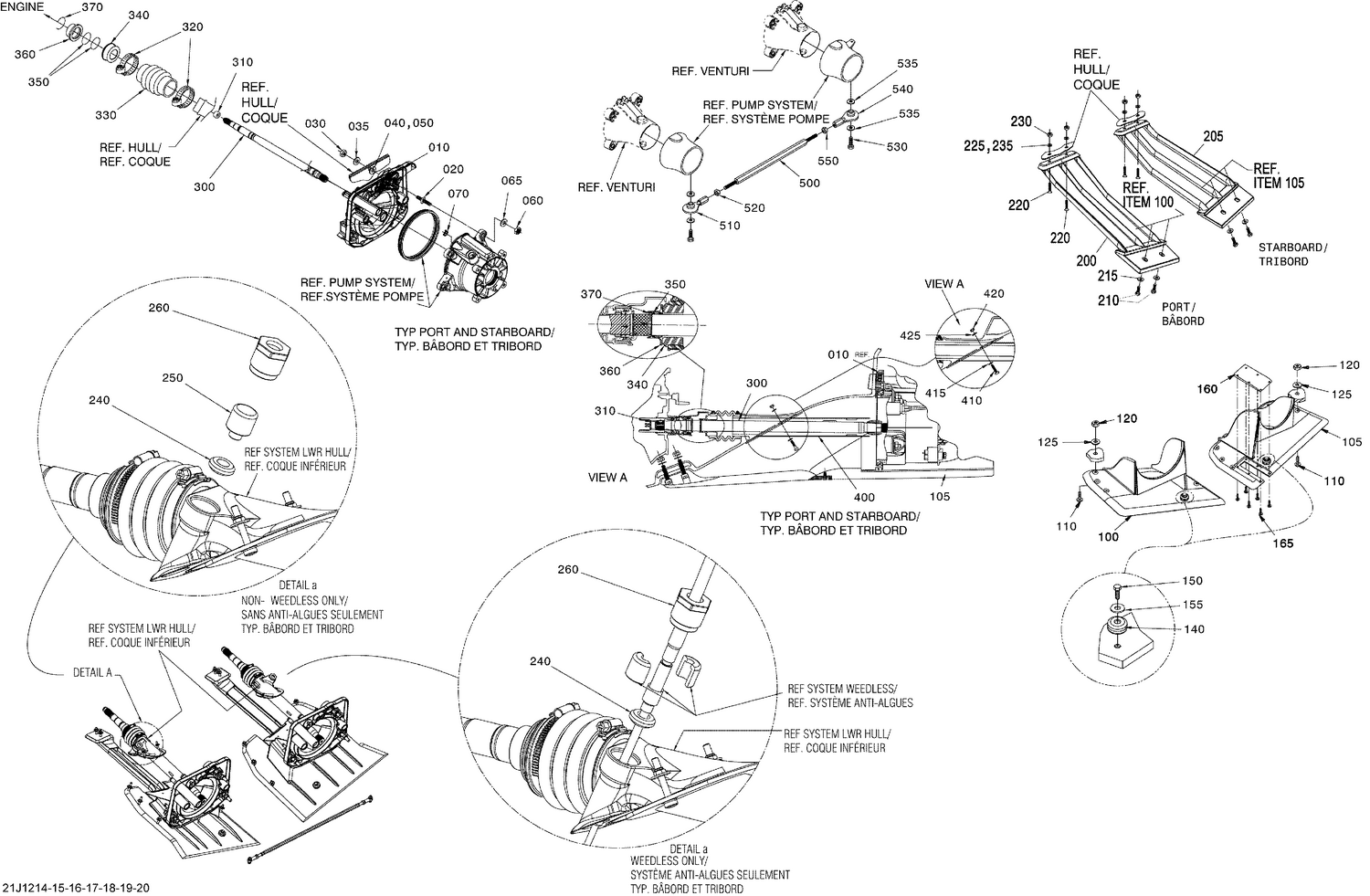

| Ref | Part Number | Description |
|---|
| 10 |
204120333 |
PUMP SUPPORT - Call your local BRP dealership |
| 20 |
250300022 |
Square Stud |
| 30 |
232501200 |
Elastic Stop Nut M10, Brass |
| 35 |
234002600 |
Flat Washer 10 mm, Stainless |
| 40 |
272000053 |
Shim 0.3 mm |
| 50 |
0460011 |
NEEDS DESCRIPTION This part replaces 204120067. |
| 60 |
232501200 |
Elastic Stop Nut M10, Brass |
| 65 |
211200051 |
Flat Washer |
| 70 |
291004649 |
Reducer This part replaces 291001887. |
| 100 |
204120335 |
PLATE_RIDE - Call your local BRP dealership |
| 105 |
204120334 |
PLATE_RIDE - Call your local BRP dealership |
| 110 |
208564060 |
PHILLIPS SCREW M6 X 40 - Call your local BRP dealership |
| 120 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 125 |
234062600 |
Flat Washer M6, Stainless |
| 140 |
271001813 |
Anode Zinc |
| 150 |
207362060 |
Hex. Screw M6 X 20, Scotch Grip |
| 155 |
234061600 |
Stainless Flat Washer M6 |
| 160 |
204120341 |
PLATE FILLER SENSOR - Call your local BRP dealership |
| 165 |
208551060 |
PHILLIPS SCREW M5 X 10 - Call your local BRP dealership |
| 200 |
204120336 |
FIXED GRATE - Call your local BRP dealership |
| 205 |
0462118 |
GRATE-STBD,PAINTED This part replaces 204120337. |
| 210 |
207161660 |
Hex. Screw M6 X 16 |
| 215 |
234061600 |
Stainless Flat Washer M6 |
| 230 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 235 |
234062600 |
Flat Washer M6, Stainless |
| 240 |
211100009 |
RUBBER WASHER - Call your local BRP dealership |
| 250 |
277001870 |
PLUG-WEEDLESS - Call your local BRP dealership |
| 260 |
277001729 |
Steering Cable Lock |
| 300 |
204120284 |
Drive Shaft |
| 310 |
272000173 |
Drive Shaft Plug |
| 320 |
293650077 |
Norma Clamp |
| 330 |
272000183 |
Bellows |
| 340 |
295501200 |
Carbon Ring Kit This part replaces 272000177. |
| 350 |
293300044 |
O-Ring |
| 360 |
295501200 |
Carbon Ring Kit This part replaces 272000176. |
| 370 |
271001575 |
C-Clip |
| 400 |
271001834 |
SHAFT GUARD ASSY - Call your local BRP dealership This part replaces 271001715. |
| 410 |
208653560 |
Phillips Screw M5 X 35 |
| 415 |
234051600 |
Flat Washer M5, Stainless |
| 420 |
232551600 |
Hex. Elastic Nut M5 |
| 425 |
234052600 |
Flat Washer 5 mm, Stainless |
| 500 |
204120255 |
LINK ROD - Call your local BRP dealership |
| 510 |
204120075 |
BALL JOINT - Call your local BRP dealership |
| 520 |
211100034 |
HEX. NUT 5/16-24 - Call your local BRP dealership |
| 530 |
207163060 |
Hex. Screw M6 X 30 |
| 535 |
234061600 |
Stainless Flat Washer M6 |
| 540 |
204120074 |
BALL JOINT - Call your local BRP dealership |
