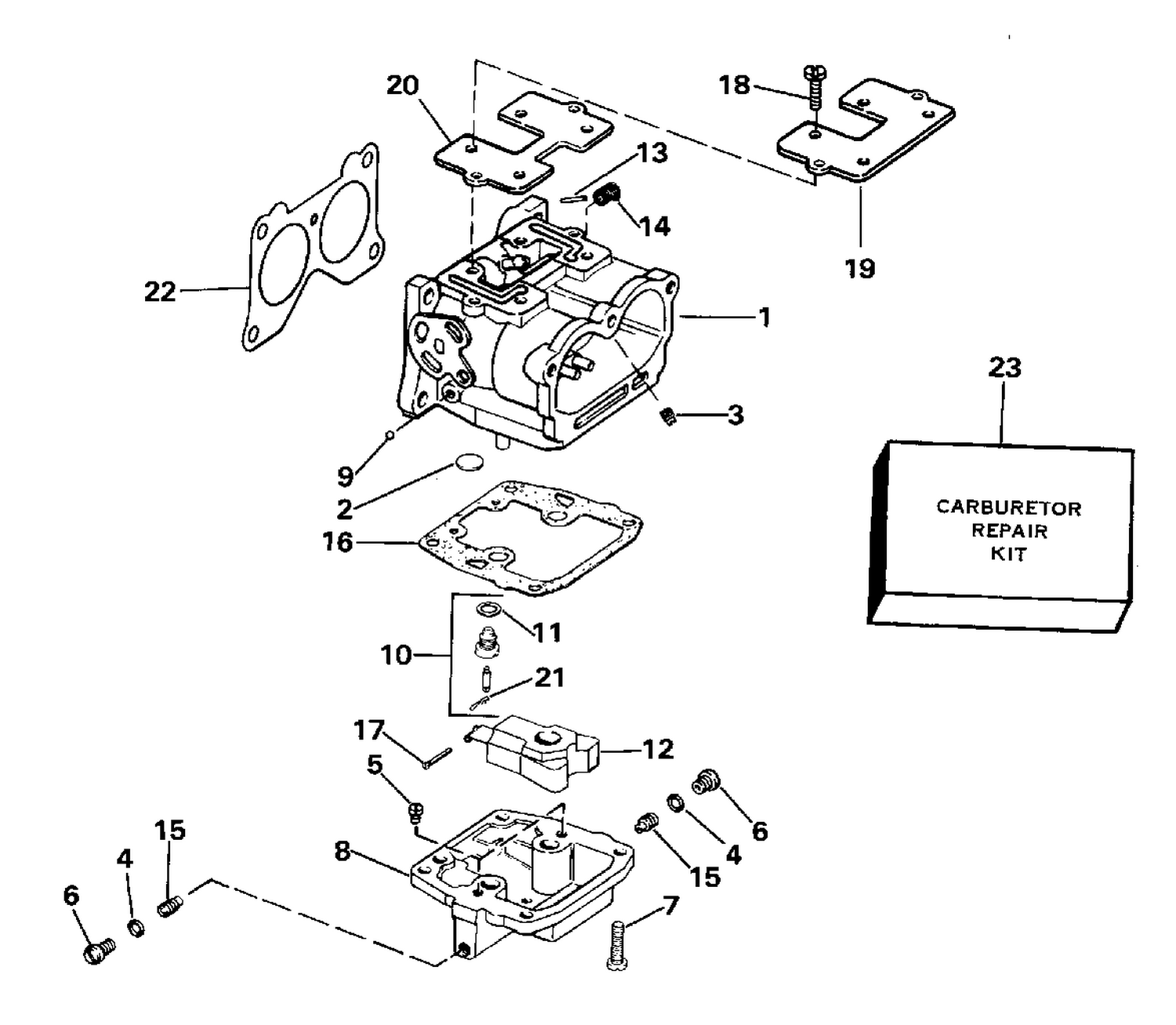

CARBURETOR
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0431795 | CARBURETOR ASSY. |
| 3 | 0318832 | O-RING, No. 35 |
| 5 | 0333312 | ORIFICE, Intermediate, No. 30 |
| 8 | 0398544 | FLOAT CHAMBER ASSY. |
| 12 | 0383437 | FLOAT ASSEMBLY |
| 15 | 0322810 | ORIFACEPLUG |
| 16 | 0338884 | GASKET, Float bowl This part replaces 0333418. |
| 18 | 0333750 | SCREW, Cover |
| 19 | 0334352 | COVER, Idle channel |
| 20 | 0334353 | GASKET, Cover |
| 21 | 0336842 | CLIP, SPRING This part replaces 0603145. |
| 22 | 0327707 | GASKET, Air silencer |
