| Ref | Part Number | Description |
|---|
| 1 |
5031979 |

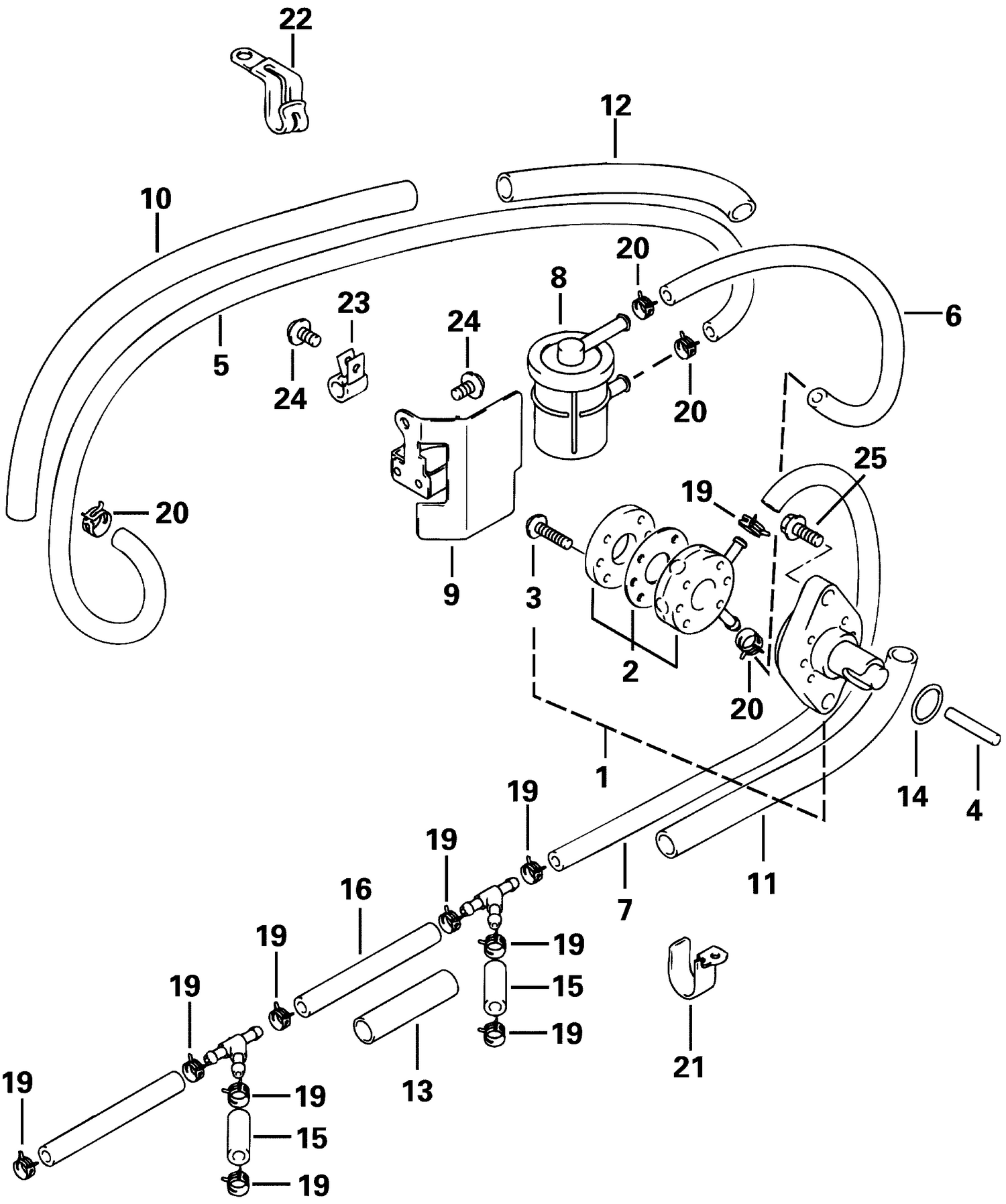

FUEL PUMP ASSY. |
| 4 |
5031980 |
ROD, Fuel pump |
| 5 |
5031981 |
HOSE, FUEL (CONN TO FILTER) |
| 6 |
5031982 |
HOSE, FUEL (FILTER TO PUMP) |
| 7 |
5031983 |
HOSE, FUEL (PUMP TO 3 WAY) |
| 8 |
5032323 |
FILTER, Fuel |
| 9 |
5031984 |
BRACKET, Fuel filter |
| 10 |
5030753 |
PROTECTOR (CONN TO CYL) (L:560mm) This part replaces 5032283. |
| 11 |
5031999 |
PROTECTOR |
| 12 |
5032000 |
SLEEVE, Hose, cyl. to filter |
| 13 |
5032001 |
SLEEVE, Hose, carb. to carb. |
| 14 |
5030540 |
JOINT TORIQUE |
| 19 |
5031901 |
CLAMP |
| 21 |
5032324 |
CLAMP, Cover |
| 22 |
5032325 |
CLAMP, Intake |
| 23 |
5031902 |
CLAMP |
| 24 |
5030987 |
BOLT |
