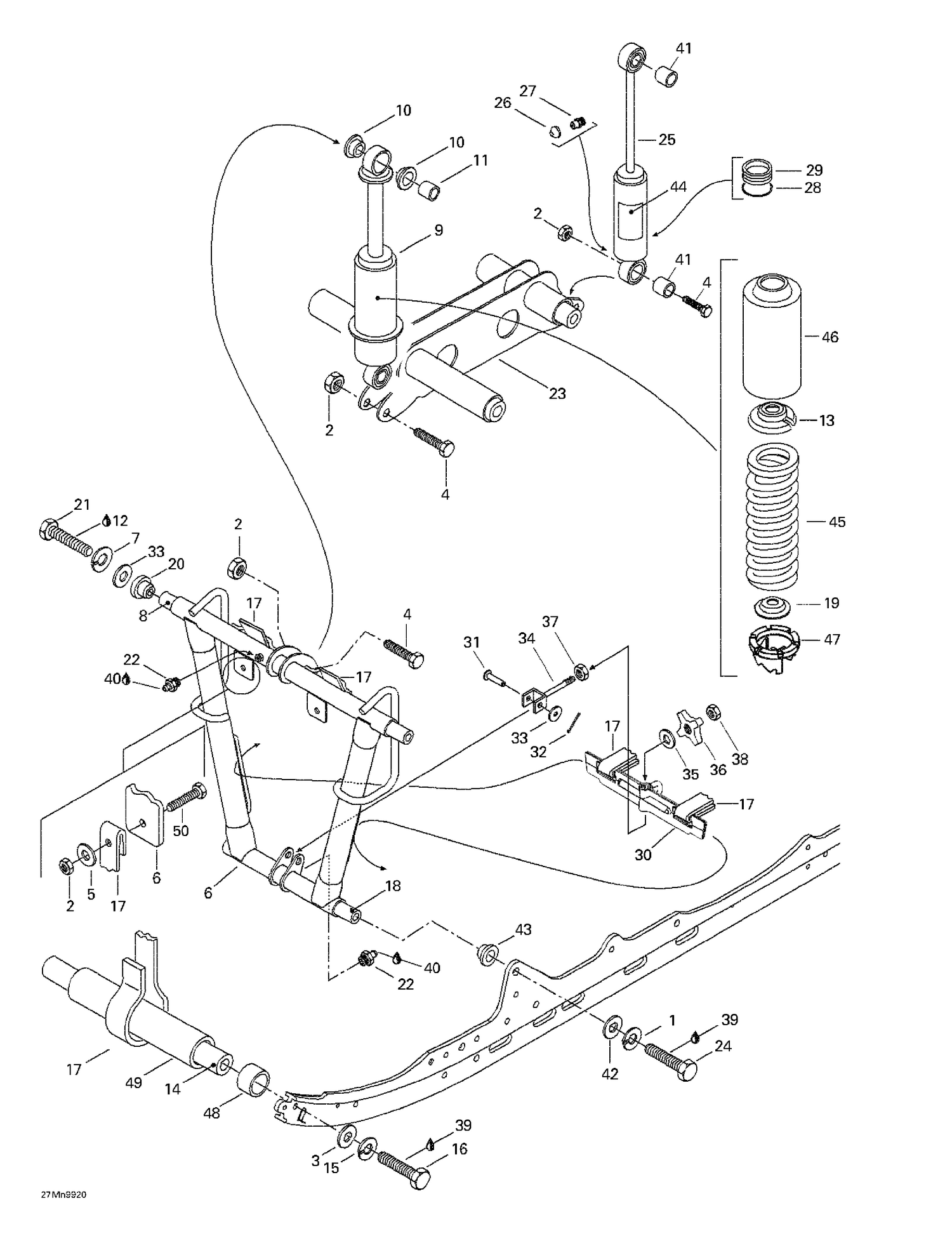

08- Front Arm, Rear Suspension
Parts (47)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 224721218 | Lock Washer 12 mm |
| 2 | 232581414 | Hex. Elastic Stop Nut M8 |
| 3 | 234081410 | Flat Washer 8 mm This part replaces 224081171. |
| 4 | 207084044 | Hex. Screw M8 X 40 This part replaces 222084065. |
| 5 | 503183100 | Washer |
| 6 | 503189068 | Front Arm |
| 7 | 234101601 | Helicoidal Lock Washer M10 |
| 8 | 503190387 | SHAFT - Call your local BRP dealership This part replaces 503188938. |
| 10 | 503189364 | Bushing |
| 11 | 503189363 | Bushing |
| 12 | 293800060 | Loctite 243, 10 ml This part replaces 293800015. |
| 13 | 706200881 | Spring Stopper This part replaces 503140600. |
| 14 | 503151600 | Axle |
| 15 | 234181401 | Lock Washer 8 mm This part replaces 224781140. |
| 16 | 207183044 | Hex. Screw M8 X 30 This part replaces 222083065. |
| 17 | 503189208 | Stopper Strap |
| 18 | 503182000 | Shaft |
| 19 | 503165100 | GUIDE_SPRING - Call your local BRP dealership |
| 20 | 503189324 | Bushing This part replaces 503188939. |
| 21 | 207006044 | HEX. SCREW M10 X 60 - Call your local BRP dealership |
| 22 | 408200700 | Grease Fitting |
| 23 | 503173300 | Shock Support |
| 24 | 207026044 | HEX. SCREW M12 X 60 - Call your local BRP dealership |
| 26 | 415127405 | Air Valve Cap |
| 27 | 414888314 | AIR VALVE - Call your local BRP dealership |
| 28 | 414888312 | O-Ring |
| 29 | 415097900 | Free Piston |
| 30 | 503183600 | Belt Bracket |
| 31 | 415016200 | Clevis Pin |
| 32 | 371801000 | COTTER PIN - Call your local BRP dealership |
| 33 | 234001410 | Flat Washer 10 mm This part replaces 224001211. |
| 34 | 503169300 | Stopper |
| 35 | 224002251 | FLAT WASHER - Call your local BRP dealership |
| 36 | 572034000 | ADJUSTER KNOB - Call your local BRP dealership |
| 37 | 232006414 | Hex. Nut M10 X 1.5 This part replaces 228001045. |
| 38 | 233601416 | Elastic Locking Nut M10 X 1.5 This part replaces 228501045. |
| 39 | 293800005 | Loctite 271, 10 ml |
| 40 | 219700417 | SYNTHETIC GREASE, 400 G - Call your local BRP dealership |
| 41 | 414936000 | Bushing |
| 42 | 234021410 | Flat Washer 12 mm This part replaces 224021251. |
| 43 | 503188940 | Cushion |
| 44 | 516000183 | Shock Decal |
| 45 | 415070100 | SPRING - Call your local BRP dealership |
| 46 | 503193663 | Protector This part replaces 503188930. |
| 47 | 503169000 | Cam |
| 48 | 572080600 | Spacer |
