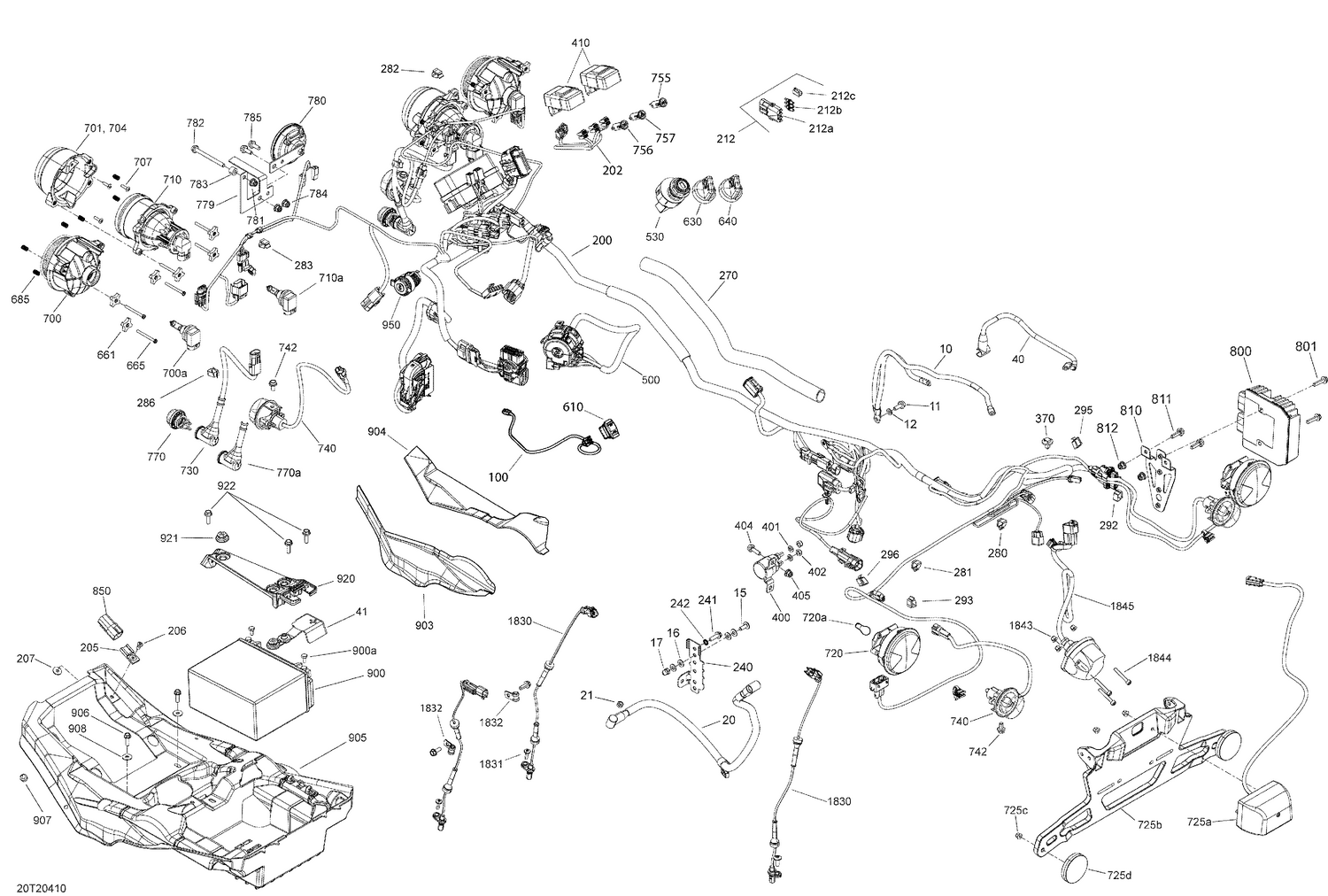

10- Electrical System
Parts (94)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 710004382 | Ground Cable |
| 11 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 12 | 234161601 | Lock Washer Helical M6 |
| 15 | 250000717 | Torx Head Screw M6 X 16 |
| 16 | 224061121 | Flat Washer |
| 17 | 232361493 | Domed Nut M6 |
| 20 | 710004377 | Positive Cable |
| 21 | 232561414 | Elastic Stop Nut M6 |
| 40 | 710004376 | Positive Cable |
| 41 | 710006729 | Battery Cable Cap |
| 100 | 710006711 | Gauge Wiring Harness |
| 200 | 710006713 | Main Wiring Harness |
| 202 | 710005840 | Indicator Light Cable |
| 205 | 270000141 | Clip |
| 206 | 390402300 | Pop Rivet 3/16" |
| 207 | 391301600 | Washer |
| 212a | 278000281 | Female Terminal Housing, 3 Circuits |
| 212b | 278000216 | Wire Seal |
| 212c | 710000992 | Clip |
| 240 | 710004118 | Connector Bracket |
| 241 | 210262040 | Hex. Flange Screw M6 X 20 |
| 242 | 234461608 | External Serrated Lock Washer 6 mm |
| 270 | 710003260 | Protective Tubing |
| 280 | 414227300 | Clip |
| 281 | 414227300 | Clip |
| 282 | 414227300 | Clip |
| 283 | 414227300 | Clip |
| 286 | 414227300 | Clip |
| 292 | 414227300 | Clip |
| 293 | 414227300 | Clip |
| 295 | 414227300 | Clip |
| 296 | 414227300 | Clip |
| 370 | 293730040 | Mount Dart |
| 400 | 710007777 | Starter Relay This part replaces 710001364. |
| 401 | 234161601 | Lock Washer Helical M6 |
| 402 | 232561414 | Elastic Stop Nut M6 |
| 404 | 207662054 | Hex. Flange Screw M6 X 20 |
| 405 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 410 | 710003239 | Flasher Unit |
| 500 | 710006211 | LH Multi Fonction Control |
| 530 | 710008400 | Ignition Switch This part replaces 710003847. |
| 610 | 710006717 | Switch Mode |
| 630 | 710002183 | Grey, Electronic Key |
| 640 | 710000817 | Black, Electronic Key |
| 661 | 572106600 | Handle |
| 665 | 250000718 | Hex. Screw K40 X 45 |
| 685 | 517168600 | Spring |
| 700a | 715900141 | Bulb 12V 55W |
| 701 | 710002291 | RH High Front Housing |
| 704 | 710002292 | LH High Front Housing |
| 707 | 250000723 | Phillips Screw K40 X 16 |
| 710 | 710002525 | High Beam Ass'y |
| 710a | 415129249 | Halogen Bulb |
| 720a | 520000758 | Bulb |
| 725a | 710005563 | License Plate Light |
| 725b | 708300434 | Plate Support |
| 725c | 233251434 | Flange Elastic Nut M5 |
| 725d | 705011221 | Red Reflector |
| 730 | 710005676 | Position Light Harness |
| 740 | 710002964 | Flasher |
| 742 | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 755 | 710005766 | Pilot Light Trailer Flasher |
| 756 | 710005767 | Pilot Light Tail Lamp |
| 757 | 710003909 | Pilot Lamp |
| 770a | 710003269 | Cap Protector |
| 779 | 710006113 | Horn Support |
| 780 | 710004791 | Horn |
| 781 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 782 | 207667044 | Hex. Flange Screw M6 X 70 |
| 783 | 708001129 | Bushing |
| 784 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 785 | 207661644 | Hex. Flange Screw M6 X 16 |
| 800 | 710005842 | Voltage Regulator |
| 801 | 210262550 | Hex. Flange Forming Screw M6 X 25 |
| 810 | 710001752 | Rectifier Support |
| 811 | 207662044 | Hex. Flange Screw M6 X 20 |
| 812 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 850 | 710003006 | Housing |
| 900a | 250000282 | Battery Bolt Kit |
| 903 | 710006532 | Heat Shield |
| 904 | 710006533 | Heat Shield |
| 905 | 710008370 | Battery Support This part replaces 710006561. |
| 906 | 210262050 | Hexagonal Head Screw |
| 907 | 293830005 | Rubber Bumper |
| 908 | 234062670 | Stainless Steel Flat Washer |
| 920 | 710009129 | Retaining Plate This part replaces 710002404. |
| 921 | 705014429 | Rubber Stopper |
| 922 | 207662054 | Hex. Flange Screw M6 X 20 |
| 950 | 710001248 | DC Outlet |
| 1830 | 710006981 | Speed Sensor |
| 1831 | 250000720 | Torx Screw K50 X 16 |
| 1832 | 293650256 | Clamp |
| 1843 | 233251434 | Flange Elastic Nut M5 |
| 1844 | 205053588 | Socket Head Screw M5 X 35 |
