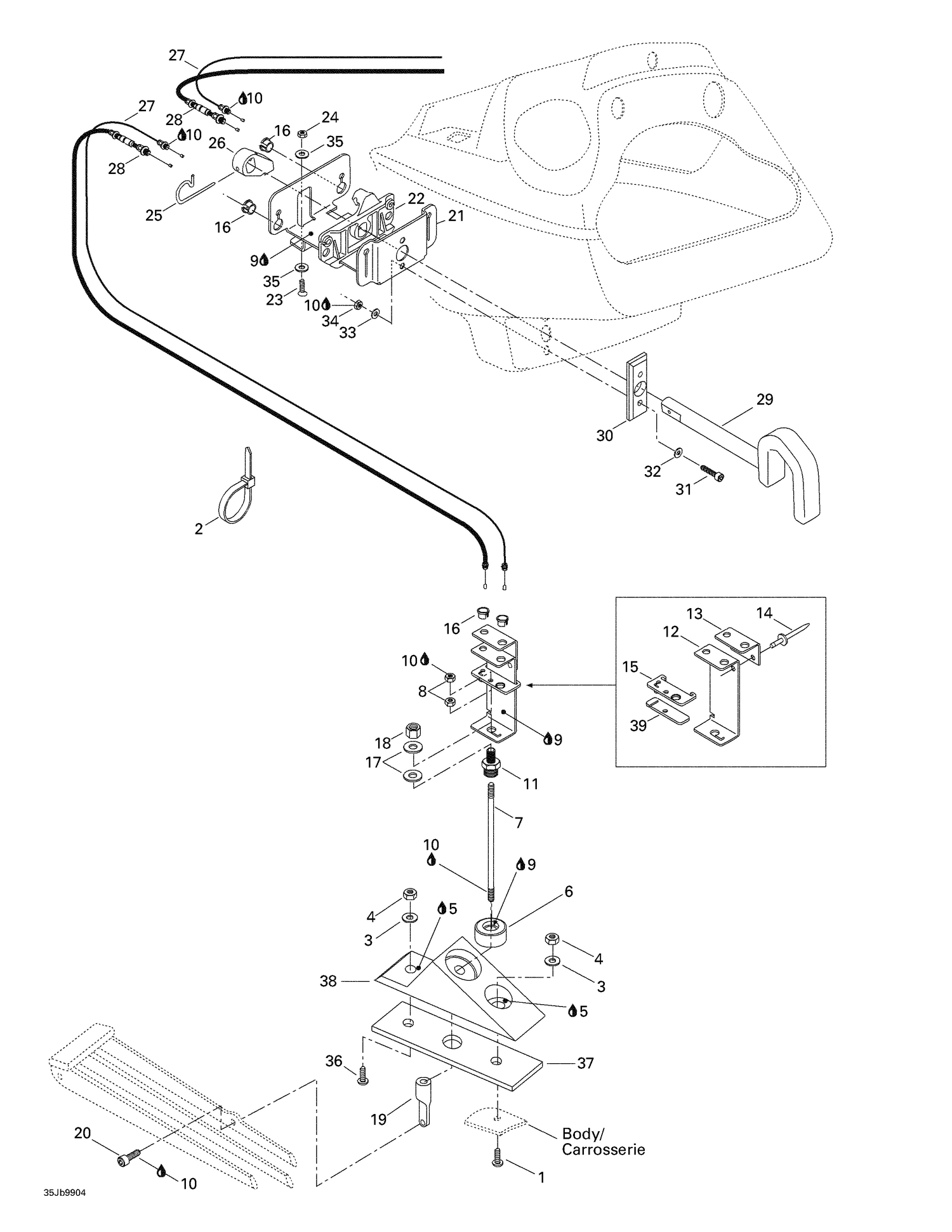

05- Weedless System
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 208564060 | PHILLIPS SCREW M6 X 40 - Call your local BRP dealership |
| 2 | 293750002 | Tie Wrap 142 mm |
| 3 | 234061600 | Stainless Flat Washer M6 |
| 4 | 232561600 | Hex. Elastic Stop Nut M6 |
| 5 | 296000309 | Silicone Sealant 51388, 300 ml |
| 6 | 204200010 | Rubber Washer |
| 7 | 204200039 | Weedless Rod |
| 8 | 212100005 | Hex. Nut |
| 9 | 293550010 | Synthetic Grease, 400 G |
| 10 | 293800060 | Loctite 243, 10 ml This part replaces 293800015. |
| 11 | 204200040 | Insert Bushing |
| 12 | 204200038 | Insert Support |
| 13 | 204200049 | Cable Protector |
| 14 | 204000081 | Pop Rivet 3/16" |
| 15 | 204200058 | Rod Guide |
| 16 | 204200042 | Grommet |
| 17 | 234021100 | Flat Washer 12 mm (Nylon) |
| 18 | 232521414 | NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership This part replaces 228521045. |
| 19 | 204200006 | Joint |
| 20 | 211000103 | Pivot Screw |
| 21 | 204200030 | Handle Support |
| 22 | 204200041 | Handle Guide |
| 23 | 205462560 | SOCKET SCREW M6 X 25 - Call your local BRP dealership |
| 24 | 232561600 | Hex. Elastic Stop Nut M6 |
| 25 | 204200046 | Weedless Spring |
| 26 | 204200047 | Catch Reworked |
| 27 | 204200028 | Weedless Cable Upper |
| 28 | 204200029 | Weedless Cable Lower |
| 29 | 204200043 | Handle |
| 30 | 271000057 | Guide Plate |
| 31 | 205462560 | SOCKET SCREW M6 X 25 - Call your local BRP dealership |
| 32 | 234060600 | FLAT WASHER 6 MM - Call your local BRP dealership |
| 33 | 234061600 | Stainless Flat Washer M6 |
| 34 | 232561600 | Hex. Elastic Stop Nut M6 |
| 35 | 234062600 | Flat Washer M6, Stainless |
| 36 | 208563560 | Phillips Screw M6 X 35 |
| 37 | 204200057 | Gasket |
| 38 | 204200020 | Weedless Insert |
