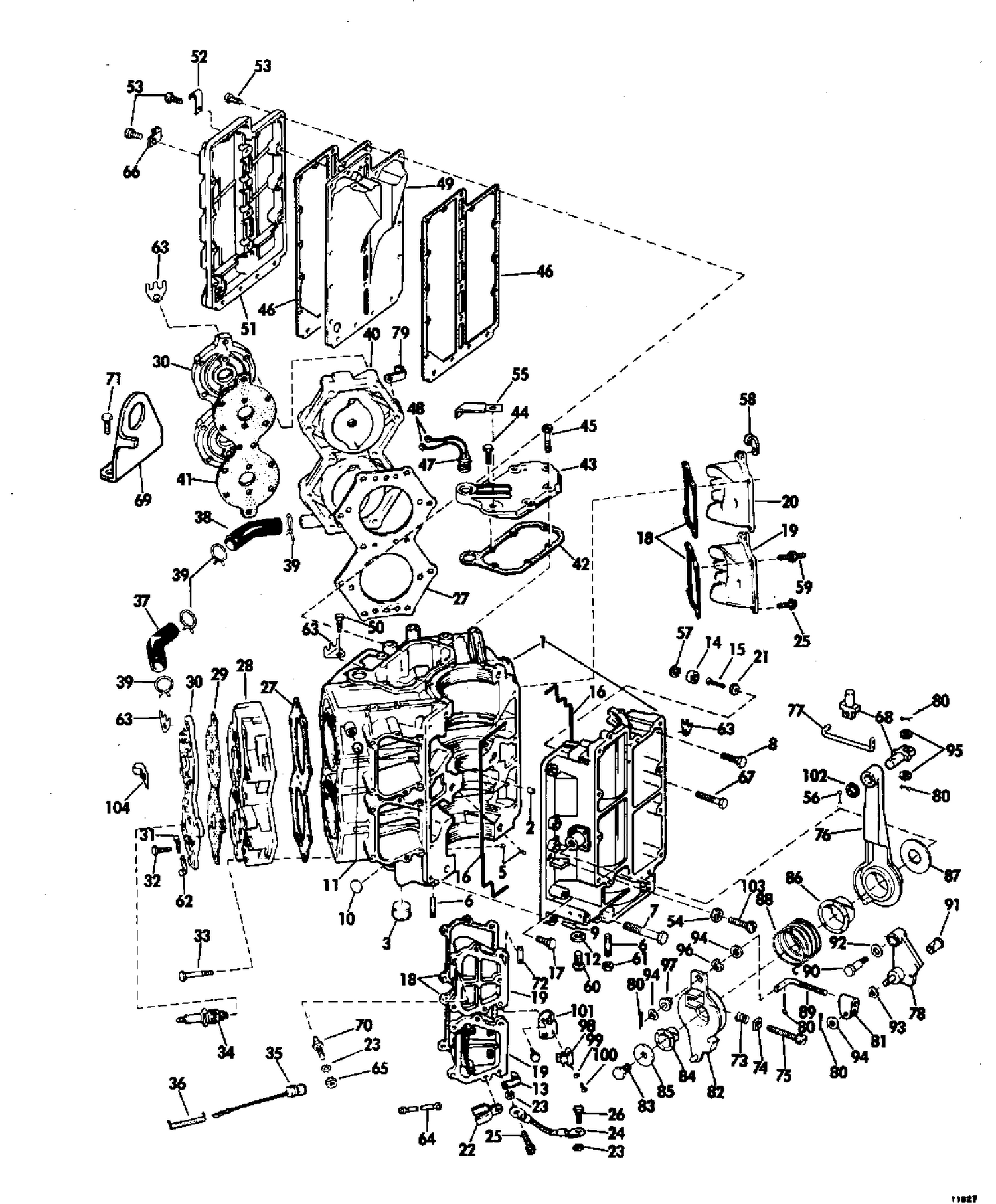

| Ref | Part Number | Description |
|---|
| 1 |
0384513 |
CYLINDER & C' CASE ASSY |
| 3 |
0305124 |
PLUG |
| 4 |
0314969 |
STUD |
| 5 |
0310507 |
PLUG |
| 6 |
0310872 |
STUD |
| 8 |
0315405 |
SCREW, C' case to cyl.-1-5/8" long |
| 10 |
0310221 |
CORE PLUG |
| 12 |
0306799 |
L'WASHER,Bracket to hsg. |
| 13 |
0310441 |
CLAMP, CPS lead |
| 14 |
0314416 |
BUMBER, Advance screw |
| 15 |
0316101 |
SCREW, Advance |
| 16 |
0314964 |
SEAL, Cyl, to c'case |
| 17 |
0300646 |
VIS, ancrage |
| 18 |
0307133 |
GASKET |
| 19 |
0310532 |
COVER BY-PASS |
| 20 |
0323045 |
COVER, By-pass This part replaces 0311240. |
| 22 |
0311321 |
CLAMP, Cable |
| 24 |
0376349 |
FIL, masse |
| 25 |
0306409 |
VIS, collecteur vers carter-moteur |
| 27 |
0306048 |
GASKET |
| 28 |
0316467 |
CYLINDER HEAD, Stbd |
| 29 |
0318335 |
COVER, Cylinder head This part replaces 0307709. |
| 30 |
0318333 |
COVER, Cylinder head This part replaces 0315279. |
| 32 |
0306409 |
VIS, collecteur vers carter-moteur |
| 33 |
0307267 |
SCREW |
| 34 |
0384751 |
SPARK PLUG, Campion l-77v |
| 34 |
0385133 |
SPARK PLUG, V40ffm |
| 35 |
0378176 |
SWITCH TEM P |
| 37 |
0315645 |
HOSE, Cyl. head stbd |
| 38 |
0315644 |
HOSE, Cyl. head port |
| 39 |
0324825 |
CLAMP, Cylinder head hose This part replaces 0305646. |
| 40 |
0316466 |
CYL. HEAD, Port |
| 41 |
0318334 |
GASKET, Cover port This part replaces 0307257. |
| 42 |
0313988 |
GASKET, Water pass cover |
| 43 |
0313964 |
COVER, Water passage |
| 45 |
0309330 |
SCREW, Vacuum switch |
| 46 |
0305176 |
GASKET |
| 47 |
0383519 |
THERMO SWITCH |
| 49 |
0314849 |
COVER, Exh inner |
| 50 |
0306831 |
BATTERY CABLE ASSY. |
| 51 |
0314864 |
COVER, Exh outer |
| 52 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309322. |
| 53 |
0309905 |
SCEW,Cylinder head |
| 54 |
0306531 |
NUT, Screw throttle |
| 56 |
0120356 |
COTTER PI, Retainer |
| 58 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309041. |
| 60 |
0315108 |
SCREW, Adapter to c' case |
| 61 |
0316355 |
BUT, Carburetor mounting This part replaces 0315204. |
| 62 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0310440. |
| 63 |
0313774 |
RETAINER CYL. HEAD COVER |
| 66 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309322. |
| 67 |
0306778 |
ECREW,Exhaust cover,1-3/8"long |
| 68 |
0306778 |
ECREW,Exhaust cover,1-3/8"long |
| 69 |
0315103 |
LIFT BRACKET, Cylinder |
| 70 |
0314993 |
BOLT, Double end |
| 71 |
0314515 |
SCREW |
| 72 |
0315127 |
RETAINER #3 IGN. LEAD |
| 75 |
0312812 |
SCREW, Idle adjust |
| 76 |
0315109 |
LEVER, Spark advance |
| 77 |
0315106 |
ROD, Spark advance |
| 78 |
0395310 |
THROTTLE CAM ASSY. This part replaces 0383649. |
| 81 |
0310524 |
YOKE |
| 82 |
0316601 |
LEVER, Throttle |
| 84 |
0314002 |
BUSHING |
| 85 |
0314099 |
RONDELLE, vis, pignon de distribution |
| 86 |
0314003 |
BSHING, Spark lever |
| 87 |
0314098 |
WASHER, Throttle lever |
| 88 |
0314094 |
LINK, Throttle lever to cam |
| 89 |
0315107 |
LINK, Throttle lever |
| 90 |
0314136 |
VIS, came de papillon |
| 92 |
0204445 |
BOW WASHER |
| 93 |
0204757 |
BOW WASHER |
| 94 |
0302474 |
WAHSER,Link |
| 96 |
0204757 |
BOW WASHER |
| 98 |
0386056 |
INTERRUPTEUR DE DÉMARRAGE AU POINT MORT This part replaces 0379542. |
| 99 |
0310498 |
WASHER |
| 100 |
0307922 |
SCREW |
| 101 |
0315105 |
BRACKET, Safety switch |
| 102 |
0330179 |
WASHER This part replaces 0303304. |
| 104 |
0310441 |
CLAMP, CPS lead |
