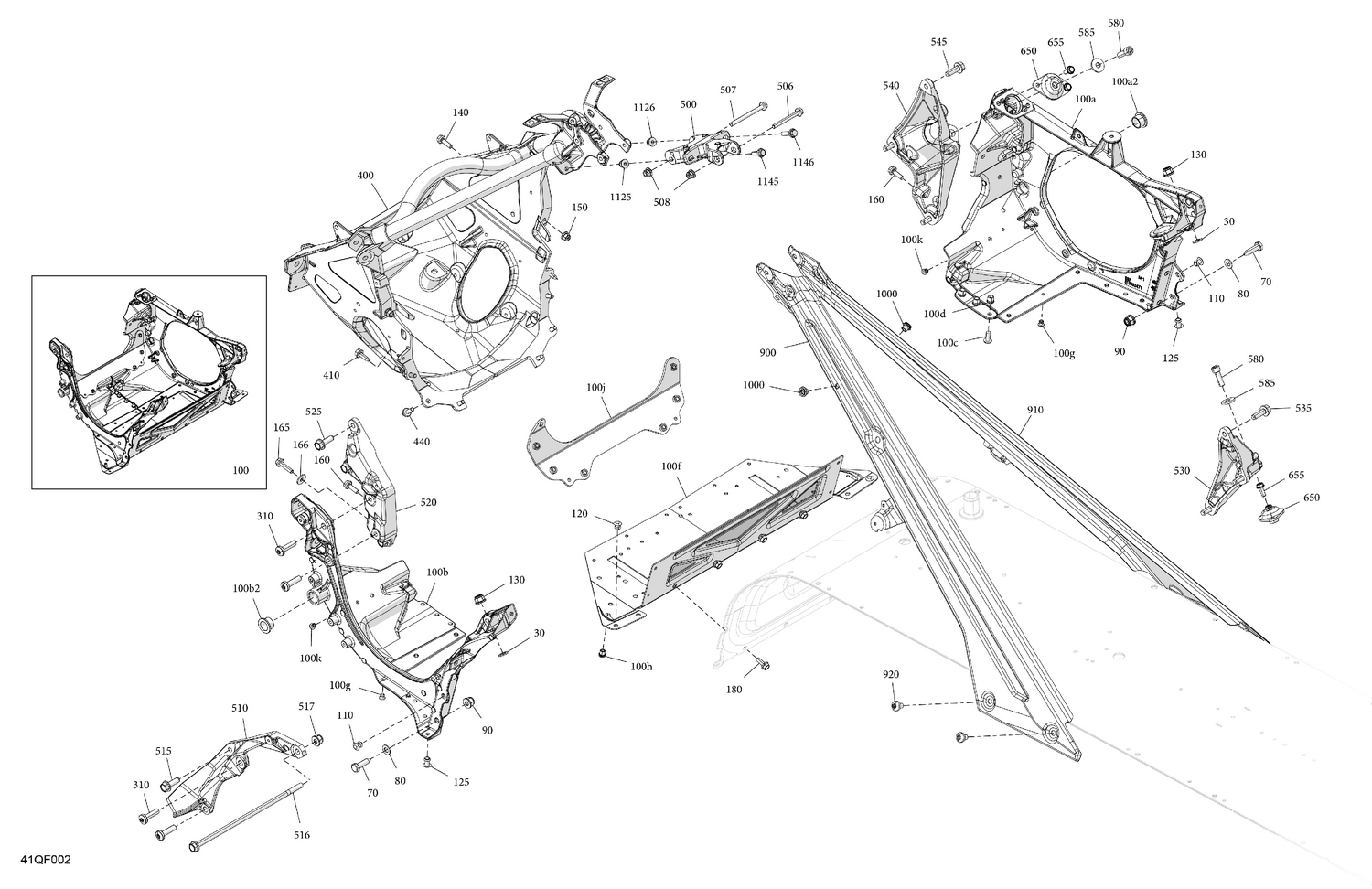

06- Frame - System - Front Section
Parts (52)
| Ref | Part Number | Description |
|---|---|---|
| 30 | 234081410 | Flat Washer 8 mm |
| 70 | 250000942 | Hex Screw M8 X 30 |
| 80 | 234081410 | Flat Washer 8 mm |
| 90 | 233281414 | Hex. Flange Elastic Nut M8 |
| 100a2 | 505073317 | Leg Cushion |
| 100b2 | 505073317 | Leg Cushion |
| 100c | 293150148 | Rivet Magna-Grip 6,4 X 50,8 |
| 100d | 293150149 | Collar Huck Magna-Grip 6.4 |
| 100f | 518332716 | Bottom Plate |
| 100g | 390909100 | Avex Rivet |
| 100h | 293450268 | Insert M5 X 0.8 |
| 100j | 518334240 | Front Cross Member |
| 100k | 390909100 | Avex Rivet |
| 110 | 293150267 | Rivet Ornit 6,5 X 16.5 |
| 120 | 293150265 | Rivet Ornit 6,5 X 12.5 |
| 125 | 293150268 | Rivet Ornit 6,5 X 18.5 |
| 130 | 233281414 | Hex. Flange Elastic Nut M8 |
| 140 | 207662046 | Hex. Flange Screw M6 X 20 |
| 150 | 233261416 | Elastic Flanged Nut M6 X 1.0 |
| 160 | 207662046 | Hex. Flange Screw M6 X 20 |
| 165 | 207662556 | Hex. Flange Screw M6 X 25 |
| 166 | 250200164 | Flat washer M6 |
| 180 | 207661646 | Hex. Flange Screw M6 X 16 |
| 310 | 250001060 | Pan Screw HD.Torx M8X30 |
| 400 | 518334552 | Chassis Suspension Module Ass'y |
| 410 | 250001051 | Hex. Forming Screw HD.FL. M6 X 16 |
| 440 | 207661636 | Hex. Flange Screw M6 X 16 |
| 500 | 518335512 | Upper Battery Support |
| 506 | 207665544 | Hex Flange Screw M6 X 55 |
| 507 | 207667044 | Hex Flange Screw M6 x 65 |
| 508 | 233261416 | Elastic Flanged Nut M6 X 1.0 |
| 510 | 518335514 | LH Rear Battery Support |
| 515 | 250000376 | Hex Forming Screw DIN.7500D |
| 516 | 518335077 | Hex Flange Screw M8 X 235MM |
| 517 | 233281416 | Hex. Elastic Flanged Nut M8 |
| 520 | 518335516 | LH Front Battery Support |
| 525 | 250000376 | Hex Forming Screw DIN.7500D |
| 530 | 518335518 | RH Rear Battery Support |
| 535 | 250000376 | Hex Forming Screw DIN.7500D |
| 540 | 518335520 | RH Front Battery Support |
| 545 | 250000376 | Hex Forming Screw DIN.7500D |
| 580 | 205082544 | Socket Screw M6 X 20, Scotch Grip |
| 585 | 503183200 | Yellow, Washer |
| 650 | 518334264 | Anchorage |
| 655 | 250001062 | Hex. Flanged Screw M6 X 16 |
| 900 | 518337020 | Viper Red, LH Rear Diagonal Cross Member |
| 910 | 518337025 | Viper Red, RH Rear Diagonal Cross Member |
| 920 | 250000887 | Pan Head Torx Screw M8 X 12 |
| 1000 | 293450267 | Insert M5 - 0.8 |
| 1125 | 233261416 | Elastic Flanged Nut M6 X 1.0 |
| 1126 | 233261416 | Elastic Flanged Nut M6 X 1.0 |
| 1145 | 207662046 | Hex. Flange Screw M6 X 20 |
