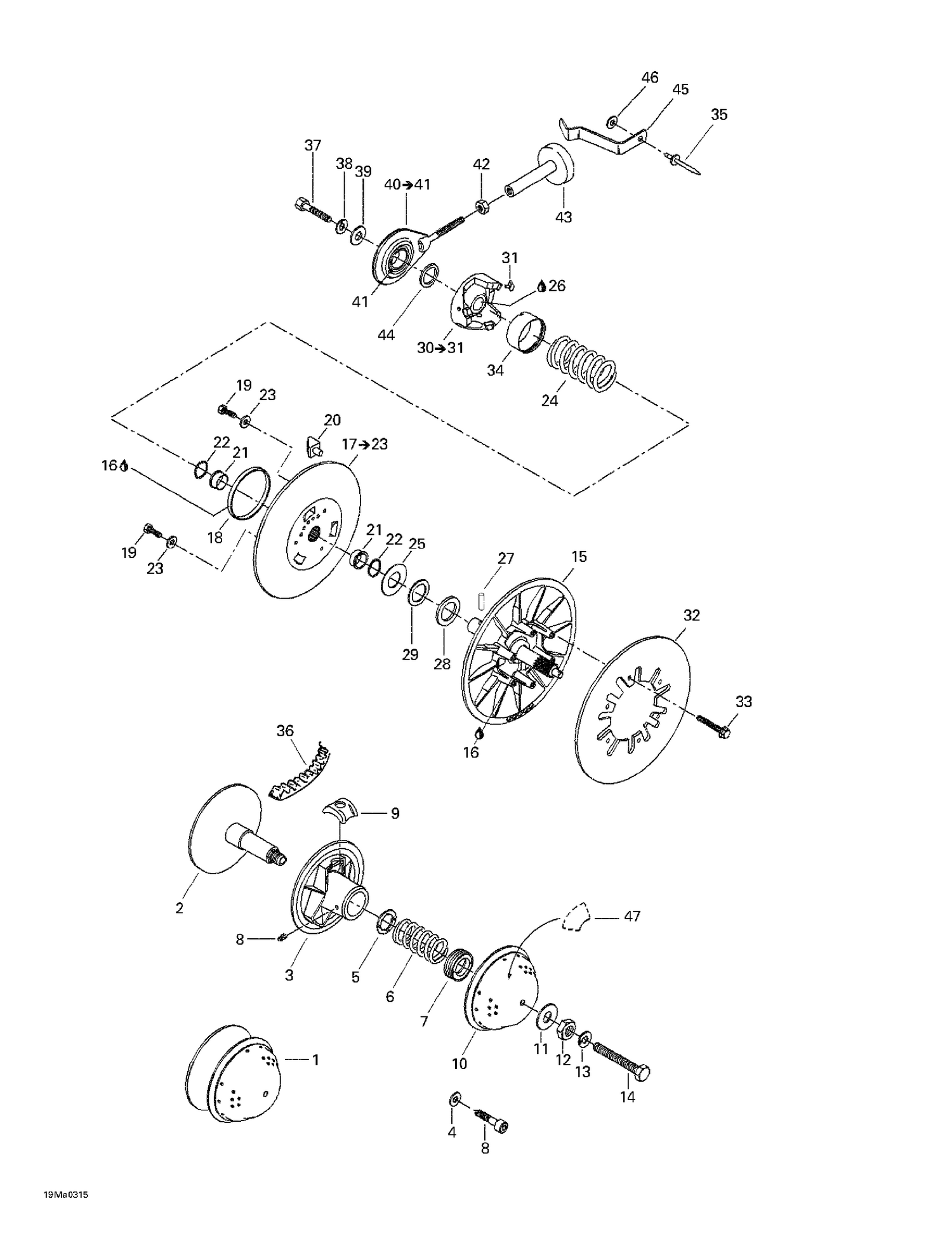

| Ref | Part Number | Description |
|---|
| 1 |
Not |
Available As Spare Part - Drive Pulley Ass'y |
| 2 |
417126691 |
INNER FIXED FLANGE - Call your local BRP dealership |
| 3 |
417126693 |
SLIDING FLANGE - Call your local BRP dealership |
| 4 |
420245370 |
WASHER - Call your local BRP dealership |
| 5 |
417126694 |
SPRING SEAT - Call your local BRP dealership |
| 6 |
414817500 |
CLUTCH SPRING, RED/YELLOW - Call your local BRP dealership |
| 7 |
417126622 |
SPRING COVER - Call your local BRP dealership |
| 8 |
205064086 |
Socket Screw M6 X 40 |
| 9 |
417126695 |
Unit Block |
| 10 |
417126697 |
CAP - Call your local BRP dealership |
| 11 |
417122400 |
Washer |
| 12 |
417118300 |
NUT - Call your local BRP dealership |
| 13 |
392002800 |
WASHER-LOCK HELICAL SPRING - Call your local BRP dealership |
| 14 |
417113800 |
BOLT - Call your local BRP dealership |
| 15 |
417124500 |
Fixed Flange Ass'y |
| 16 |
413703100 |
Loctite 609, 10 ml |
| 18 |
417126397 |
BUSHING - Call your local BRP dealership |
| 19 |
210251180 |
HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership |
| 20 |
415099400 |
BACK UP CAM SHOE - Call your local BRP dealership |
| 21 |
Not |
Available As Spare Part - Cushion |
| 22 |
371911100 |
Retaining Ring |
| 23 |
399910000 |
Flat Washer |
| 24 |
415094300 |
Release Spring |
| 25 |
504150400 |
Thrust Washer |
| 26 |
219704461 |
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 27 |
372900500 |
DOWEL PIN - Call your local BRP dealership |
| 28 |
504112000 |
Shim |
| 29 |
504108200 |
SHIM - Call your local BRP dealership |
| 31 |
415094400 |
Slide Cam Shoe |
| 32 |
507032100 |
BRAKE DISK - Call your local BRP dealership |
| 33 |
210261650 |
Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 34 |
417126349 |
Protector |
| 35 |
390402500 |
RIVET_POP 1/8 - Call your local BRP dealership |
| 36 |
414827600 |
Drive Belt |
| 37 |
207181644 |
Hex. Screw M8 x 16 |
| 38 |
234181401 |
Lock Washer 8 mm |
| 39 |
517078700 |
WASHER - Call your local BRP dealership |
| 41 |
405401000 |
BALL BEARING - Call your local BRP dealership |
| 42 |
232081414 |
Hex. Nut M8 |
| 43 |
570028300 |
Rod Retainer |
| 44 |
504003900 |
Spacer |
| 45 |
414831800 |
SPRING - Call your local BRP dealership |
| 46 |
391300800 |
Flat Washer |
