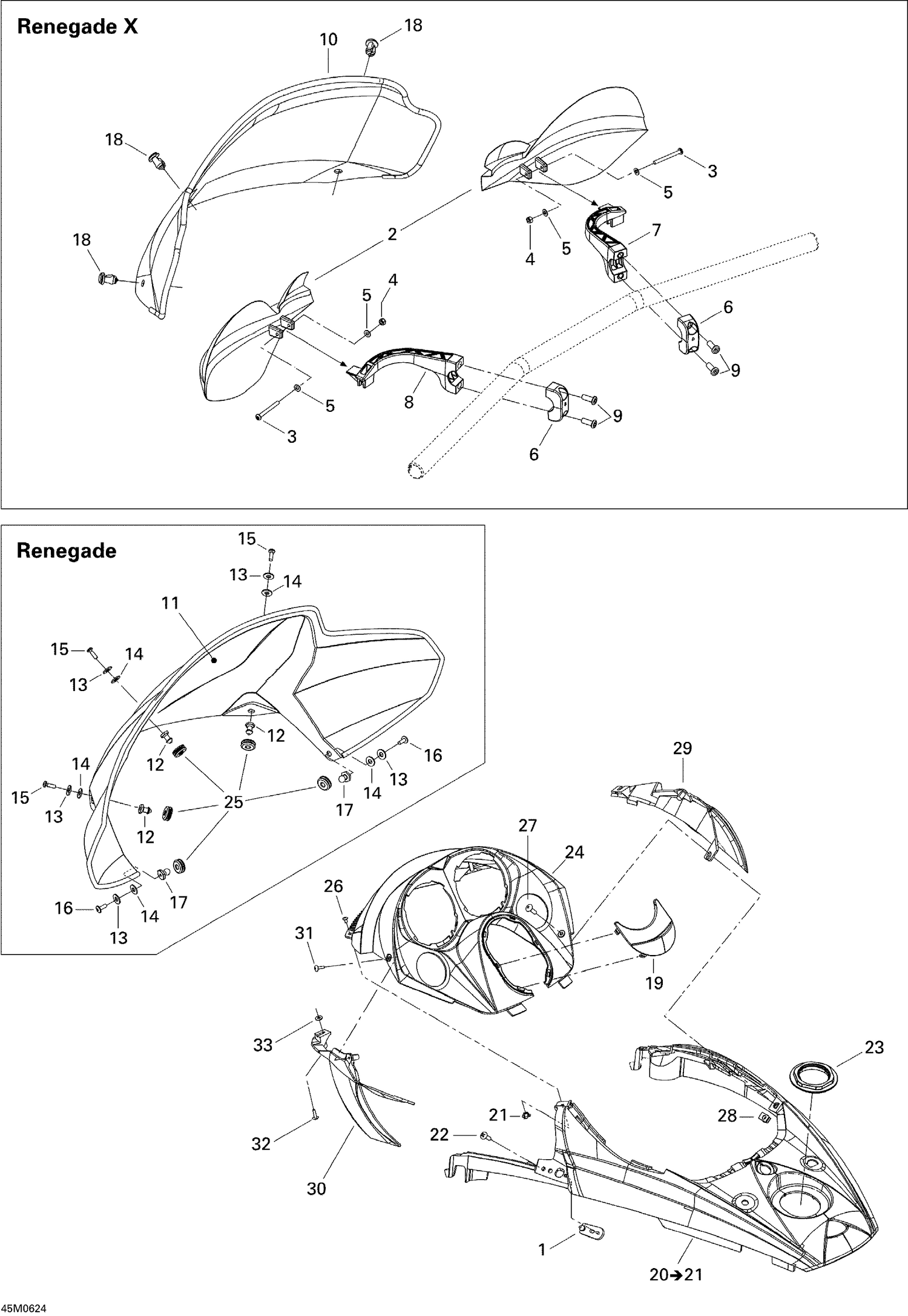

| Ref | Part Number | Description |
|---|
| 1 |
517302616 |
HOOD LATCH - Call your local BRP dealership |
| 19 |
517302592 |
CONSOLE CAP - Call your local BRP dealership |
| 22 |
250000722 |
Torx Screw M6 X 20 This part replaces 250000128. |
| 23 |
517302575 |
CONSOLE NUT - Call your local BRP dealership |
| 26 |
250000127 |
Torx Screw M4 X 8 |
| 27 |
250000724 |
Torx Screw M5 X 20 This part replaces 250000130. |
| 28 |
250000958 |
Panel Nut M5 X 0.8 This part replaces 250000079. |
| 31 |
250000723 |
Phillips Screw K40 X 16 This part replaces 250000084. |
| 32 |
250000725 |
Screw M4 X 16 This part replaces 250000113. |
