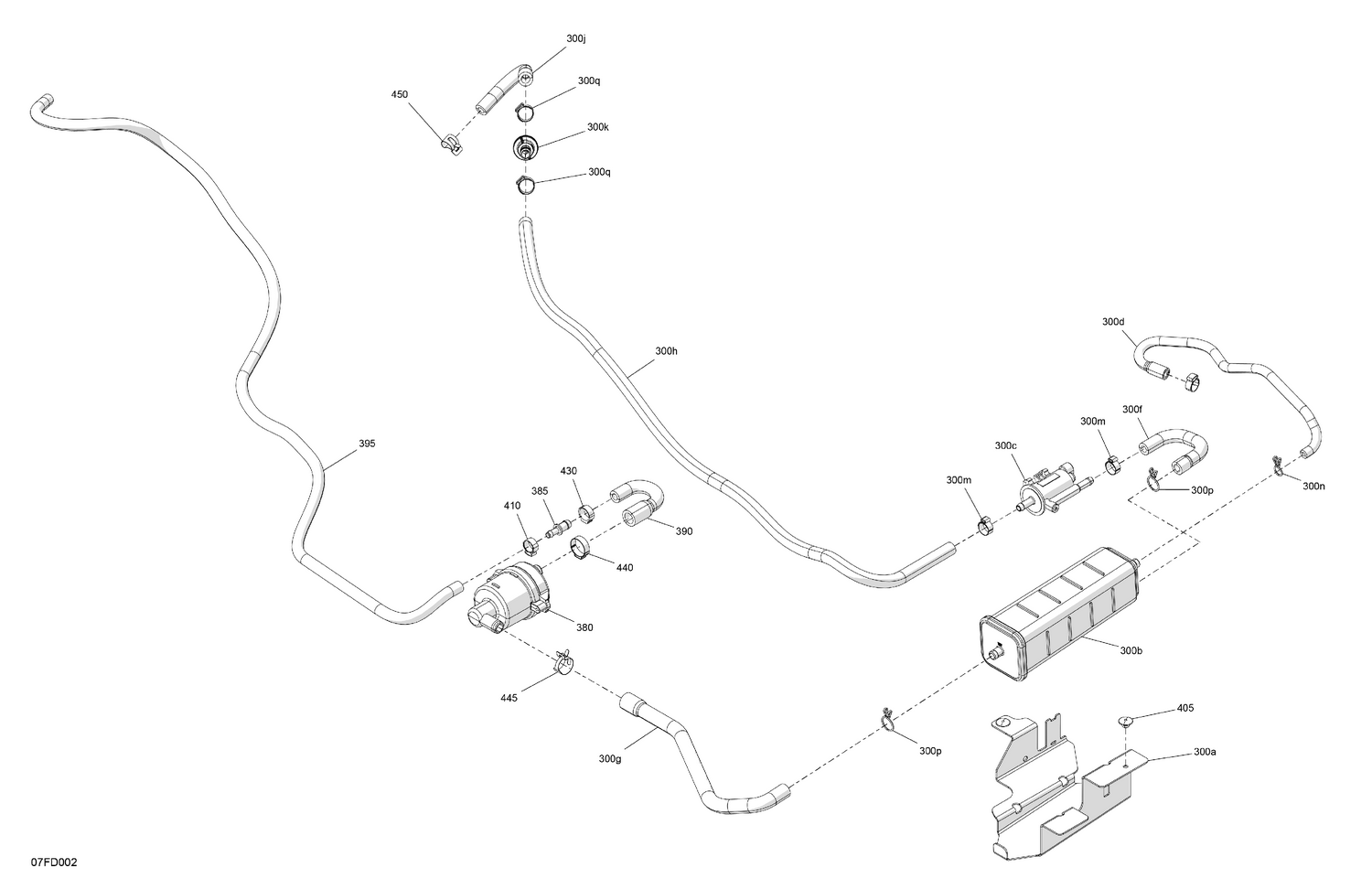

02- Engine - Canister Charcoal Ass'y
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 300a | 709001219 | Support Module |
| 300b | 709001217 | Vapor Canister |
| 300c | 709000991 | Bleed Selenoid Valve |
| 300d | 709001103 | Hose |
| 300f | 709001105 | Hose |
| 300g | 709001106 | Hose |
| 300h | 219704612 | Hose 3000Mm Long This part replaces 219704441. |
| 300j | 709001371 | Hose |
| 300k | 275500941 | Check Valve |
| 300m | 293650047 | Crimp Clamp, 15.3-706R |
| 300n | 293650295 | Hose Clamp 9.8mm-11.5mm (Spring Type) |
| 300p | 293650294 | Hose Clamp 15.5mm-17.5mm (Spring Type) |
| 300q | 293650053 | Crimp Clamp |
| 380 | 709001109 | Air Filter |
| 385 | 293710035 | Straight Fitting |
| 390 | 709001372 | Hose |
| 395 | 219704534 | Hose 6.35MM ID |
| 405 | 293150103 | Pop Rivet 3/16" |
| 410 | 293650046 | Oetiker Clamp |
| 430 | 293650053 | Crimp Clamp |
| 440 | 293650186 | Oetiker Clamp |
| 445 | 293650110 | Norma Clamp |
