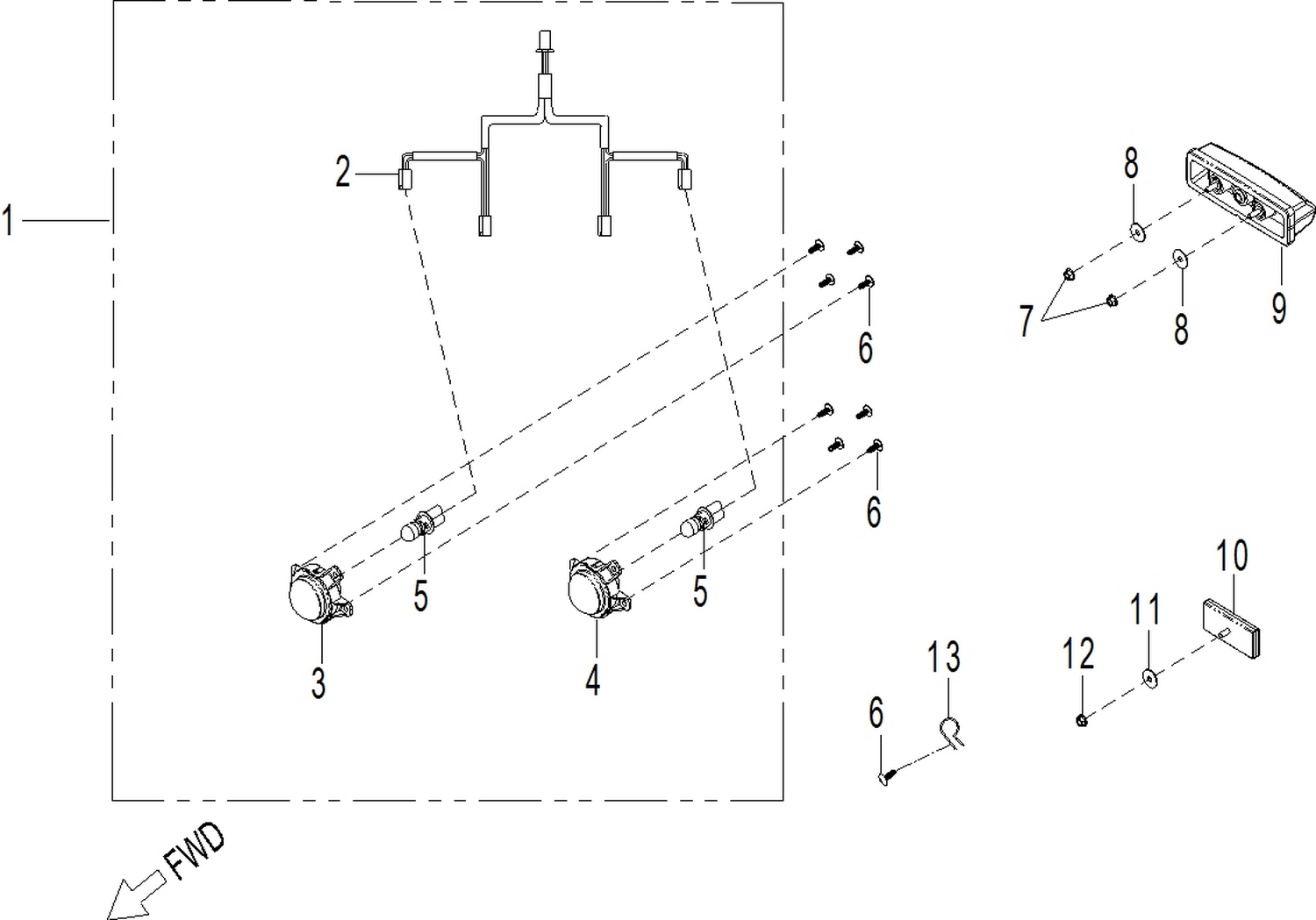

08- Electric - Lights
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 2 | A32135T91000 | HeadLights Harness Ass'y |
| 3 | A33312T91000 | LH Head Light Ass'y |
| 4 | A33311T91000 | RH Head Light Ass'y |
| 5 | A34901T91000 | Light Bulb (6W) |
| 6 | A9390310501280K3 | Tapping Screw M5 X 12 |
| 7 | A94050050000C3 | Hexagonal Nut M5 |
| 8 | A9410105190100K3 | Washer |
| 9 | A33700T91000 | Rear Light |
| 10 | A33741208000 | Red, Reflector |
| 11 | A9410105190100K3 | Washer |
| 12 | A94050050000C3 | Hexagonal Nut M5 |
