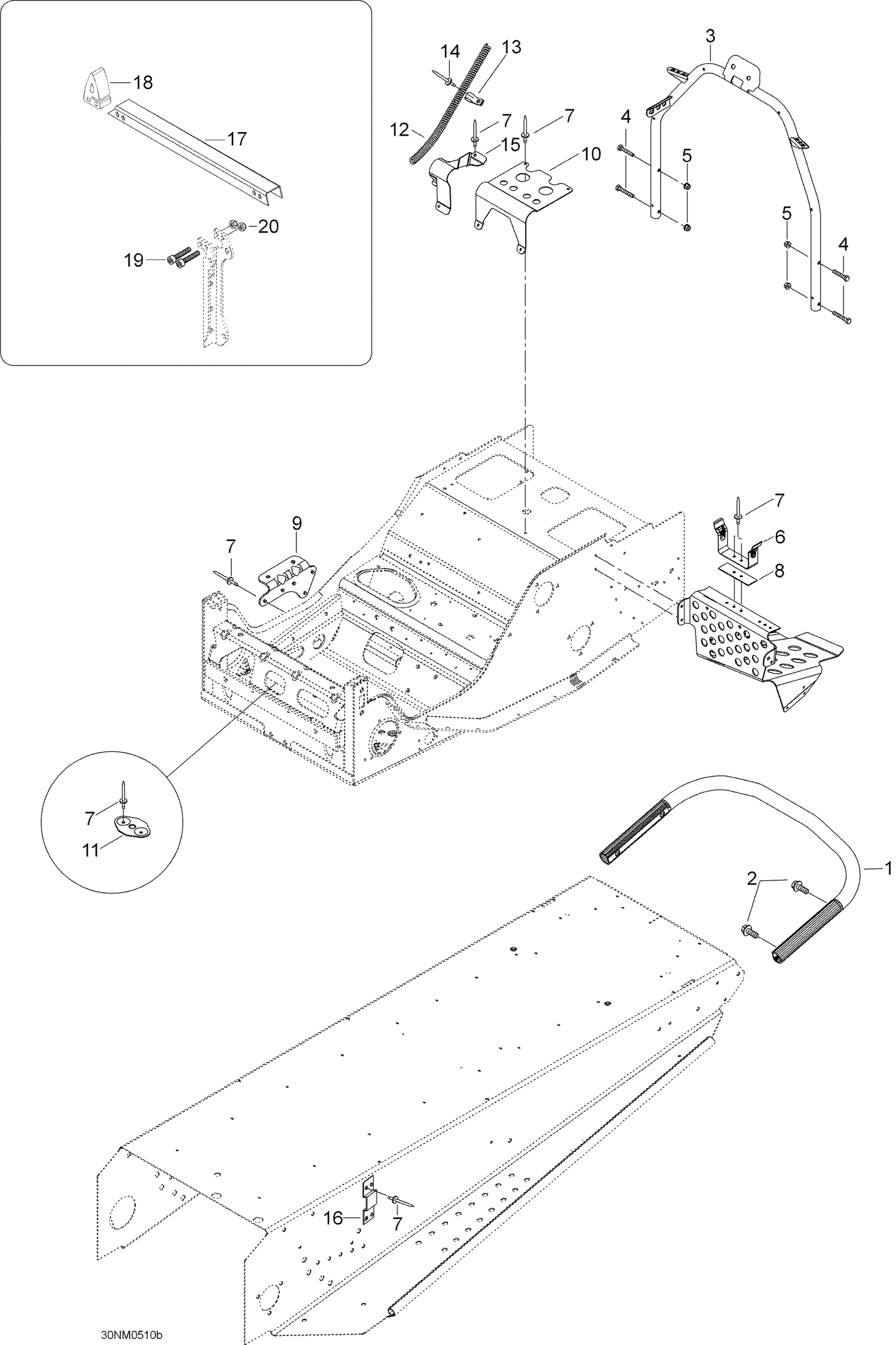

| Ref | Part Number | Description |
|---|
| 1 |
518322708 |
REAR BUMPER - Call your local BRP dealership |
| 2 |
40336 |
HEX. SCREW M8 X 20 - Call your local BRP dealership |
| 3 |
5247856 |
Handle steering supp. |
| 4 |
40002 |
Hex. screw M6 x 40 |
| 5 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 6 |
518202100 |
Pulley Guard bracket |
| 7 |
36489 |
Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
| 8 |
518207500 |
REINFORCEMENT - Call your local BRP dealership |
| 10 |
518310400 |
AIR INTAKE SUPPORT - Call your local BRP dealership |
| 11 |
518201307 |
Bracket |
| 12 |
518321569 |
Rope guide |
| 13 |
27092 |
Clip |
| 14 |
36036 |
Rivet |
| 15 |
518322699 |
Bracket |
| 16 |
5447908 |
Plate |
| 17 |
5347225 |
Bracket |
| 18 |
5348099 |
Rubber damper |
| 19 |
40345 |
Socket head screw M6 x 40 |
