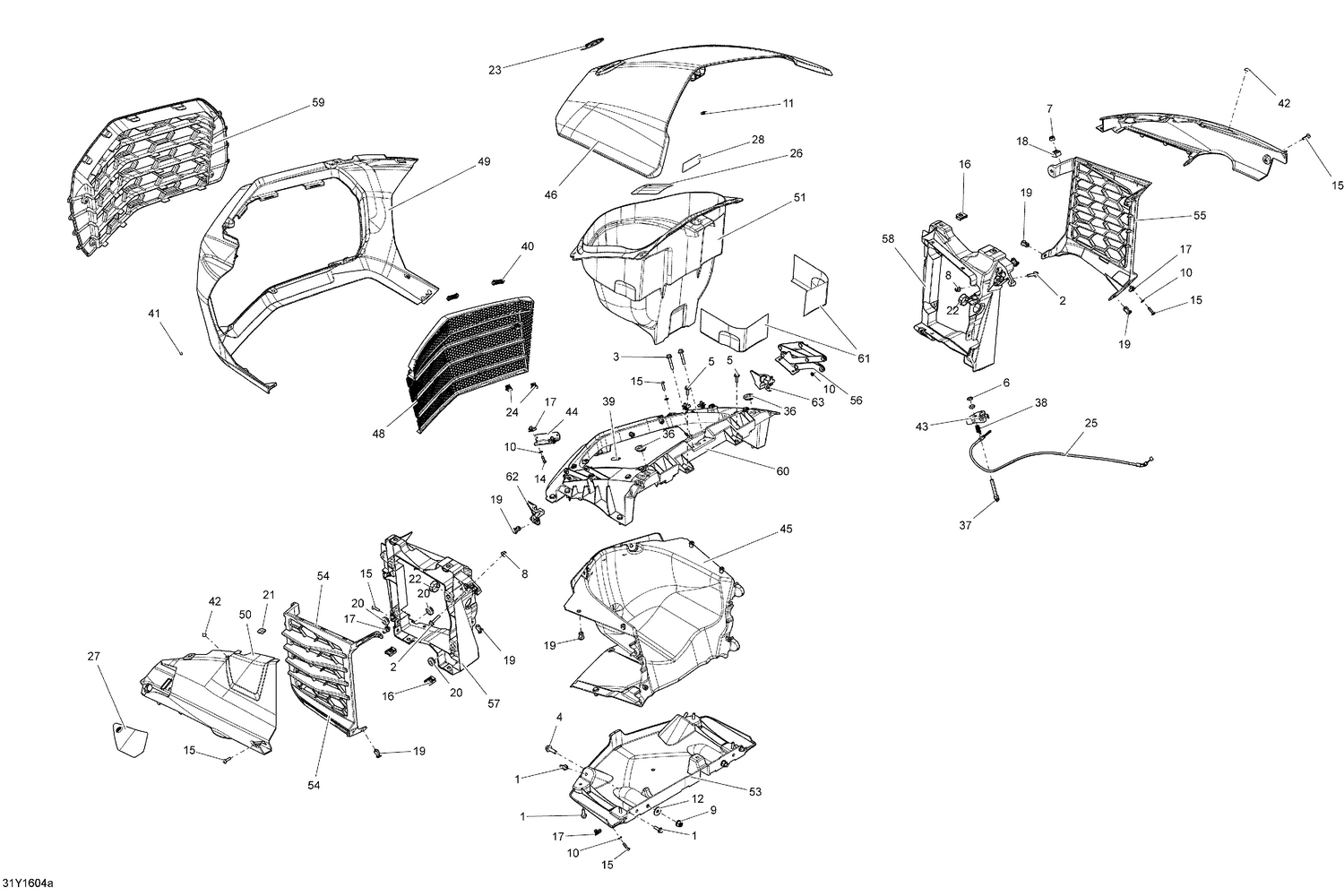

09- Body And Accessories - Front Storage - Package Standard
Parts (54)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207662034 | Hex. Flange Screw M6 X 20 |
| 2 | 207663054 | Hex. Flange Screw M6 X 30 |
| 3 | 207663544 | Hex. Flange Screw M6 X 35 |
| 4 | 207682534 | Hex. Flange Screw M8 X 25 |
| 5 | 210262050 | Hexagonal Head Screw |
| 6 | 232180600 | Hex. Jam Nut M8 |
| 7 | 232581200 | Hex. Elastic Nut M8 Brass |
| 8 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 9 | 233281434 | Hex. Flange Elastic Nut M8 |
| 10 | 234051670 | Flat Washer M5 |
| 11 | 234081410 | Flat Washer 8 mm |
| 12 | 234082430 | Flat Washer M8 |
| 14 | 250000578 | Torx Truss Screw M5 X 16, T25 |
| 15 | 250000715 | Torx Truss Screw M5 X 20 |
| 16 | 250100208 | Panel Nut M6 X 1.0 This part replaces 250100169. |
| 17 | 250100176 | Panel Nut M5 X 0.8 |
| 18 | 269501943 | Elastic Nut Housing M8 |
| 19 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 20 | 709000582 | Grommet This part replaces 293720053. |
| 21 | 293830143 | Rubber Pad |
| 22 | 414916600 | Black, Nylon Cap |
| 23 | 516008739 | BRP Logo 68mm This part replaces 516006888. |
| 24 | 517302785 | Edge Clip |
| 25 | 517305742 | Hood Cable |
| 26 | 704904936 | Notice Cleaning Decal, English |
| 27 | 704905092 | Décalque, Pneu Et Chargement |
| 28 | 704905122 | Warning Load Decal, 6.8 Kg (15lb) |
| 36 | 705000321 | Oval Washer |
| 37 | 705002223 | Lug |
| 38 | 705003911 | Spring |
| 39 | 219704424 | Vinyl Tubing, Low Temp 3000Mm Long |
| 40 | 705004838 | Flat Clip |
| 41 | 705006633 | Stopper |
| 42 | 705006634 | Polyurethane Stopper |
| 43 | 705007379 | Latch |
| 44 | 708200673 | LH Hood Hinge This part replaces 708200348. |
| 45 | 708200362 | Front Air Duct Module |
| 46 | 708200379 | Steel Black Hood |
| 48 | 708200393 | Front Deflector Grille |
| 49 | 708200400 | Steel Black Front Fascia |
| 49 | 708200694 | Steel Metallic Black, Front Fascia This part replaces 708200449. |
| 50 | 708200450 | Steel Black, LH Vent Panel |
| 50 | 708200451 | Steel Black, RH Vent Panel |
| 51 | 708200403 | Front Storage Bin |
| 53 | 708200405 | Front Skid Plate |
| 54 | 708200406 | LH Front Lateral Vent |
| 55 | 708200859 | RH Side Vent This part replaces 708200407. |
| 56 | 708200674 | RH Hood Hinge This part replaces 708200417. |
| 57 | 708200437 | LH Breakaway Lateral Tower Leg |
| 58 | 708200438 | RH Breakaway Lateral Tower Leg |
| 59 | 708200443 | Front Radiator Grille |
| 60 | 708200446 | Sub-Frame Type Structure |
| 61 | 708200490 | Heat Shield Sheet |
| 62 | 708200493 | LH Front Union Link |
