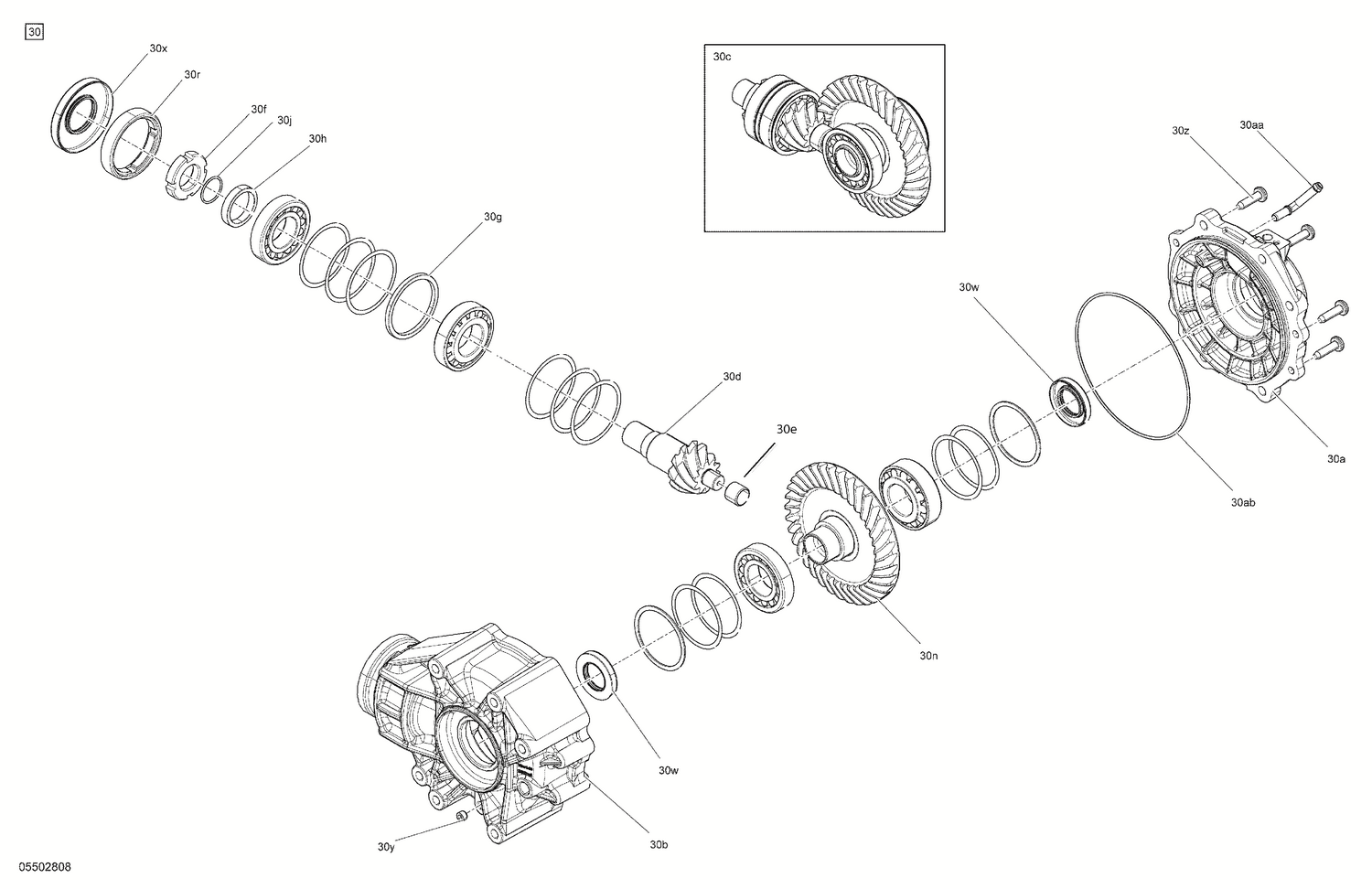

04- Drive - Rear Section - Differential Parts
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 30a | 705502547 | Rear Cover |
| 30aa | 705501584 | Breather Tube |
| 30b | 705502180 | Rear Pinion Cover |
| 30d | 705502809 | Geart 10 Teeth |
| 30e | 703500836 | Needle Bearing Ass'y |
| 30f | 705501550 | Nut |
| 30g | 705501552 | Differential Shim |
| 30h | 705501553 | Differential Shim |
| 30j | 705501554 | O-Ring |
| 30n | 705502810 | Gear 36 Tooth |
| 30r | 705501549 | Nut |
| 30w | 705501556 | Oil Seal |
| 30x | 705501557 | Oil Seal |
| 30y | 705501724 | Plug Drain |
| 30z | 705502063 | Screw |
