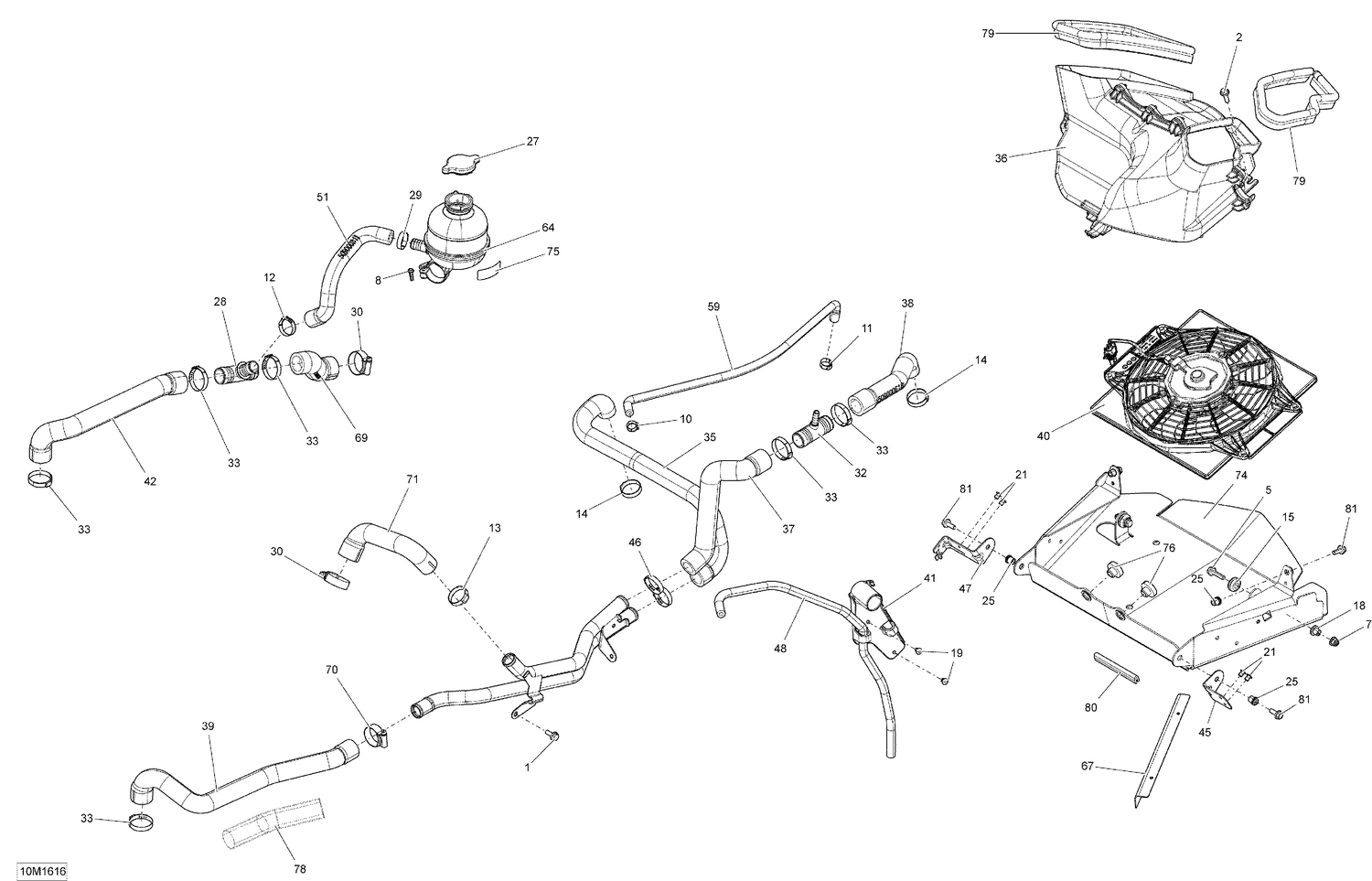

01- Cooling System
Parts (49)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207561634 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 2 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip This part replaces 207562044. |
| 5 | 207662544 | Hex. Flange Screw M6 X 25 |
| 6 | 224061121 | Flat Washer |
| 7 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 8 | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 |
| 10 | 293650025 | Oetiker Gear Clamp |
| 11 | 293650047 | Crimp Clamp, 15.3-706R |
| 12 | 293650099 | Crimp Clamp |
| 13 | 293650141 | Oetiker Clamp |
| 14 | 293650165 | Oetiker Gear Clamp |
| 15 | 709000582 | Grommet This part replaces 293720053. |
| 18 | 293900100 | Bushing |
| 19 | 390909100 | Avex Rivet |
| 21 | 390909200 | Avex Rivet |
| 25 | 293450275 | Insert |
| 27 | 509000180 | Radiator Pressure Cap |
| 28 | 509000372 | T-Fitting |
| 29 | 509000442 | Oeticker Gear Clamp, 25.6-706R |
| 30 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 31 | 509000972 | Radiator |
| 32 | 509000510 | T-Fitting |
| 33 | 509000529 | Oetiker Gear Clamp, 36.5-706R |
| 35 | 509000560 | Radiator Hose |
| 36 | 509000612 | AIR OUTLET DEFLECTOR ASS'Y - Call your local BRP dealership |
| 37 | 509000617 | Radiator Hose |
| 38 | 509000618 | Radiator Hose |
| 39 | 509000634 | Hose |
| 40 | 509000692 | Fan Ass'y |
| 41 | 509000694 | Front Bracket |
| 42 | 509001062 | Radiator Return Hose This part replaces 509000697. |
| 45 | 509000715 | Support |
| 46 | 509000735 | Clamp |
| 47 | 509000772 | Support |
| 48 | 509000775 | Hose |
| 50 | 509000800 | Water Pipe |
| 51 | 509001063 | Filling Hose This part replaces 509000811. |
| 59 | 509000860 | Breather Hose |
| 64 | 509000875 | Cooling Tank |
| 67 | 509000892 | DEFLECTOR - Call your local BRP dealership |
| 69 | 509000921 | Radiator Hose |
| 70 | 509000931 | Gear Clamp |
| 71 | 509000932 | Engine Outlet Hose |
| 74 | 509000988 | Radiator Support |
| 75 | 516005904 | Warning Decal |
| 76 | 709200285 | Grommet |
| 78 | 219704421 | Protector Tube 32 Mm 1000Mm Long |
| 79 | 219704371 | Neoprene Seal 3000 mm Long |
| 80 | 219704353 | Was 271000110 Protection Trim |
