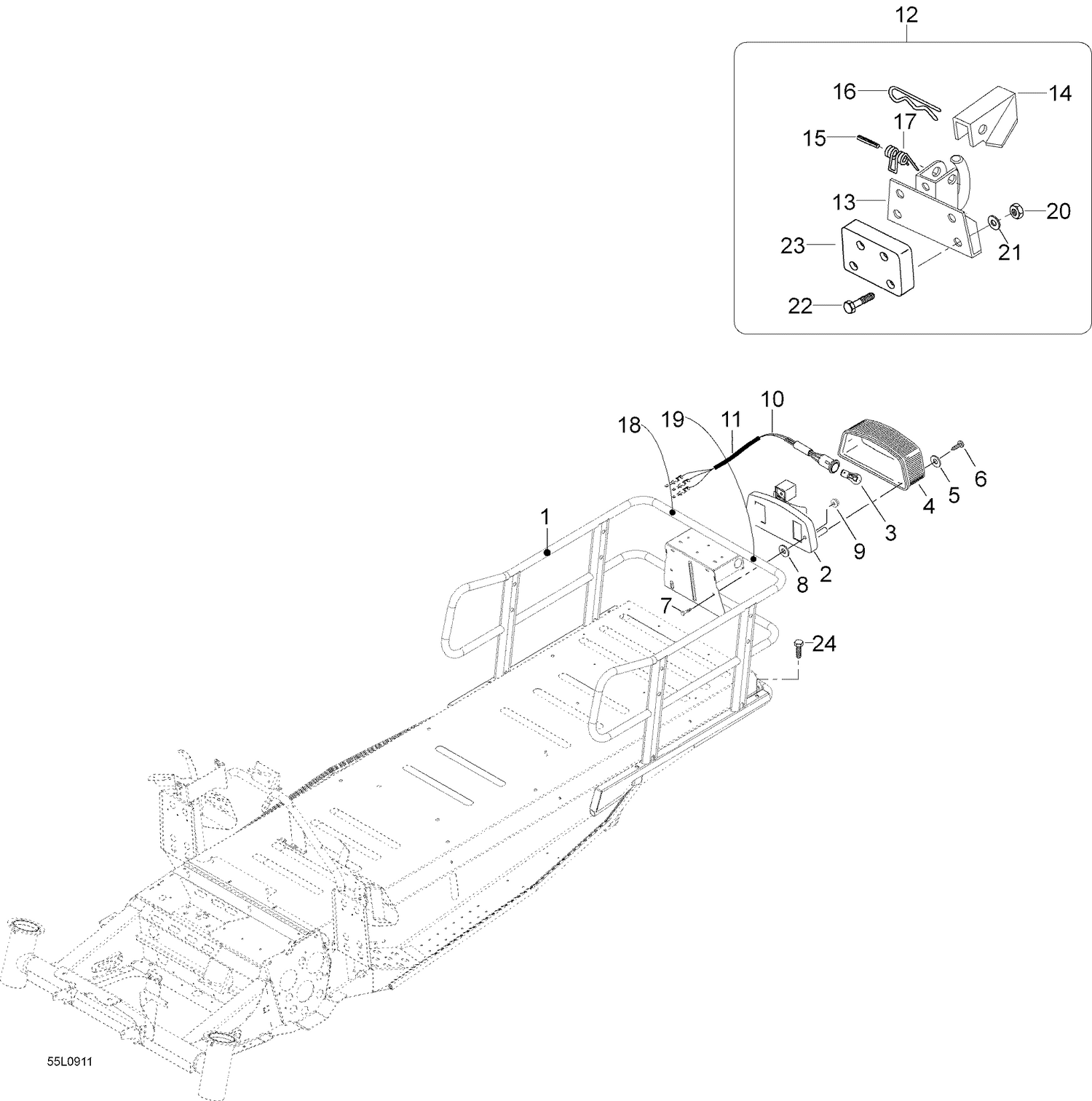

| Ref | Part Number | Description |
|---|
| 1 |
605356205 |
LUGGAGE RACK - Call your local BRP dealership |
| 2 |
515175397 |
LAMP HOUSING - Call your local BRP dealership |
| 3 |
520000758 |
Bulb This part replaces 410504100. |
| 4 |
414513700 |
Lens |
| 5 |
414516400 |
Washer - Call your local BRP dealership |
| 6 |
209632540 |
Screw |
| 7 |
207764044 |
BOLT CARRIAGE DIN.603 - Call your local BRP dealership This part replaces 40064. |
| 8 |
20077 |
M8 Washer |
| 9 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 10 |
605354685 |
Harness ass'y, rear lamp |
| 11 |
409901800 |
Tubing |
| 13 |
5344156 |
HITCH ASS'Y - Call your local BRP dealership This part replaces 5344208. |
| 14 |
5440767 |
Lock |
| 15 |
41012 |
Spring Pin |
| 16 |
41029 |
Needle Pin |
| 17 |
545693 |
SPRING - Call your local BRP dealership |
| 18 |
605448799 |
PULLING BAR DECAL - Call your local BRP dealership |
| 19 |
5447929 |
Decal, weight/pulling force |
| 20 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 33011. |
| 21 |
234081410 |
Flat Washer 8 mm This part replaces 20004. |
| 22 |
40009 |
Hex. screw M8 x 50 |
| 23 |
605351510 |
SPACER - Call your local BRP dealership |
