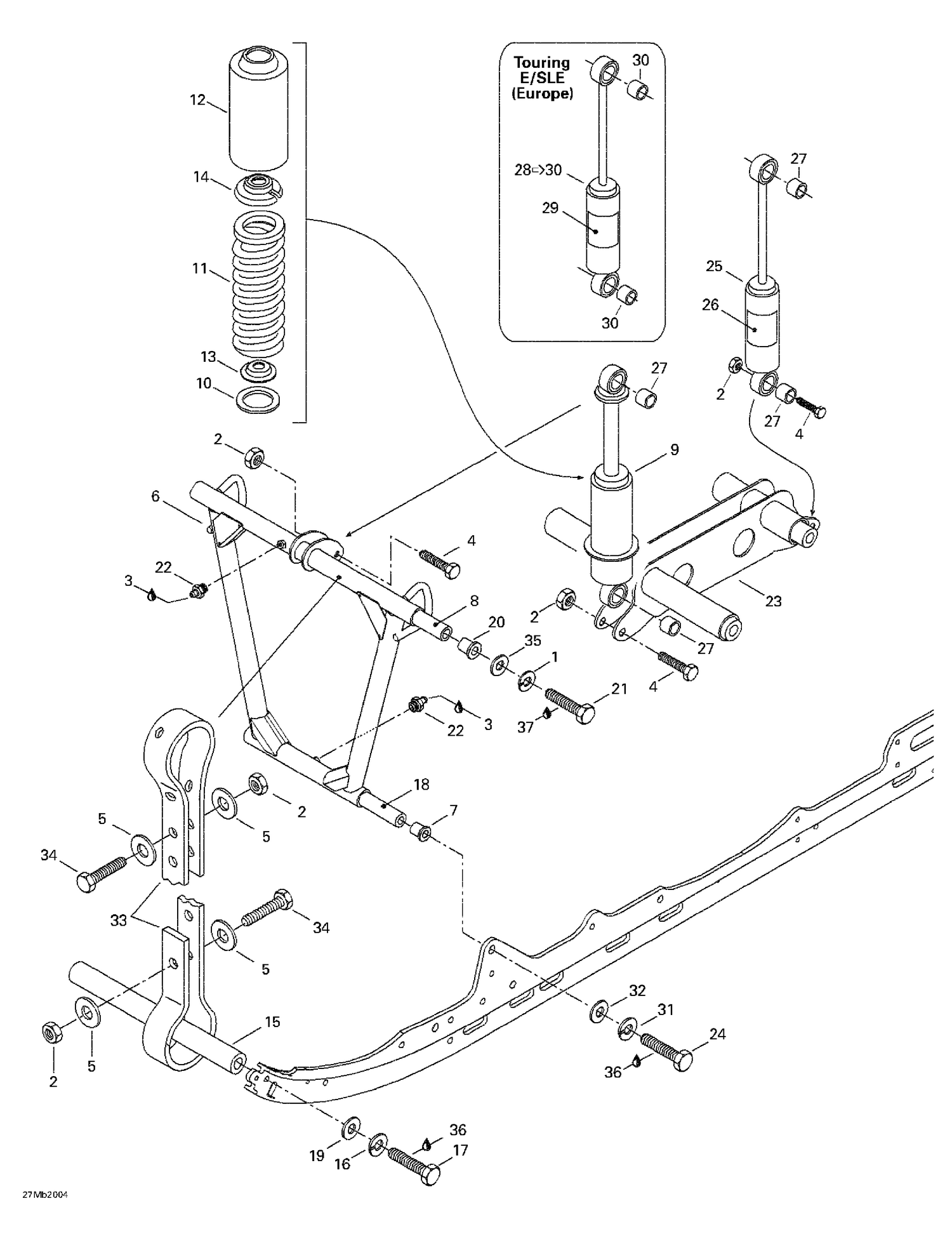

08- Front Arm
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 234101601 | Helicoidal Lock Washer M10 |
| 2 | 232581414 | Hex. Elastic Stop Nut M8 |
| 3 | 219700417 | SYNTHETIC GREASE, 400 G - Call your local BRP dealership |
| 4 | 207084044 | Hex. Screw M8 X 40 |
| 5 | 517078700 | WASHER - Call your local BRP dealership |
| 6 | 503189311 | Welded Front Arm |
| 7 | 503189323 | CUSHION - Call your local BRP dealership |
| 8 | 503190387 | SHAFT - Call your local BRP dealership This part replaces 503188938. |
| 12 | 503193663 | Protector This part replaces 503188930. |
| 14 | 706200881 | Spring Stopper This part replaces 503140600. |
| 15 | 503151600 | Axle |
| 16 | 234181401 | Lock Washer 8 mm |
| 17 | 207183044 | Hex. Screw M8 X 30 |
| 18 | 503189313 | SHAFT - Call your local BRP dealership |
| 19 | 234081410 | Flat Washer 8 mm |
| 20 | 503189324 | Bushing |
| 21 | 207006044 | HEX. SCREW M10 X 60 - Call your local BRP dealership |
| 22 | 408200700 | Grease Fitting |
| 23 | 503189466 | Shock Support |
| 24 | 207026044 | HEX. SCREW M12 X 60 - Call your local BRP dealership |
| 26 | 516000182 | HPG Decal (Europe) |
| 27 | 414936000 | Bushing |
| 31 | 234120602 | Lock Washer 12 mm |
| 32 | 234021410 | Flat Washer 12 mm |
| 33 | 503190782 | STOPPER STRAP - Call your local BRP dealership This part replaces 503189362. |
| 34 | 207182544 | Hex. Screw M8 X 25 |
| 35 | 234001410 | Flat Washer 10 mm |
| 36 | 293800005 | Loctite 271, 10 ml |
